Product Overview

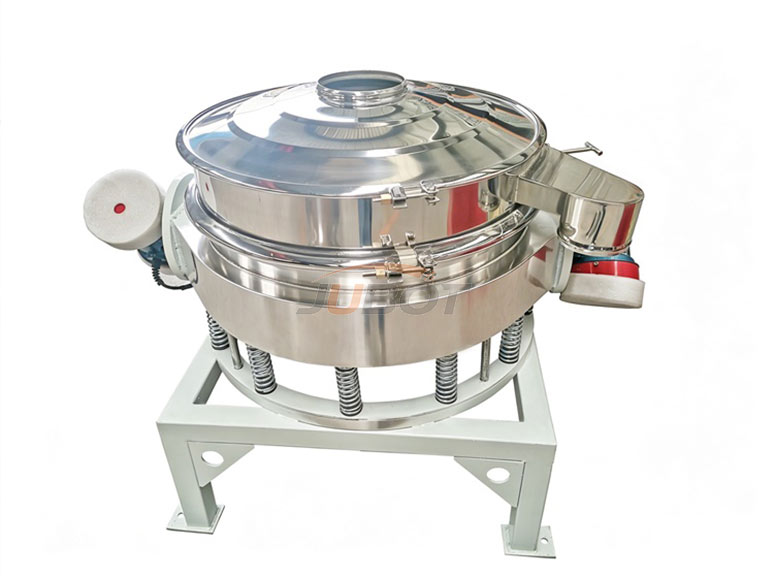

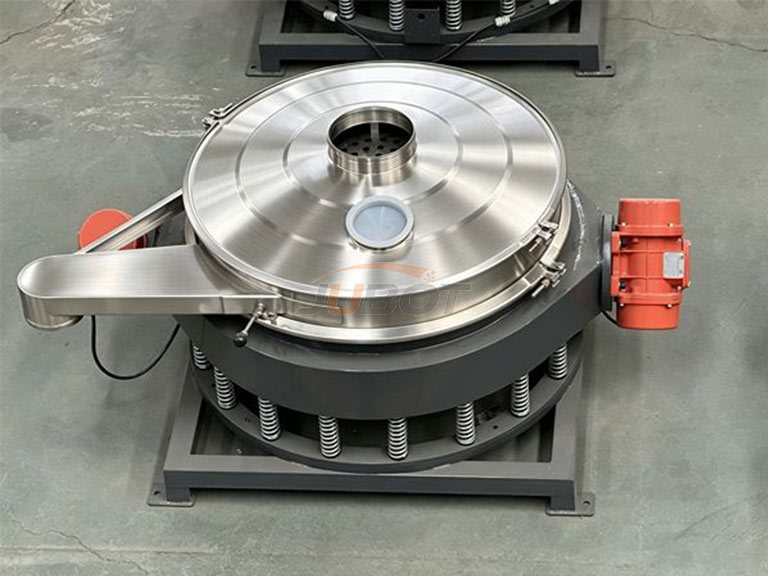

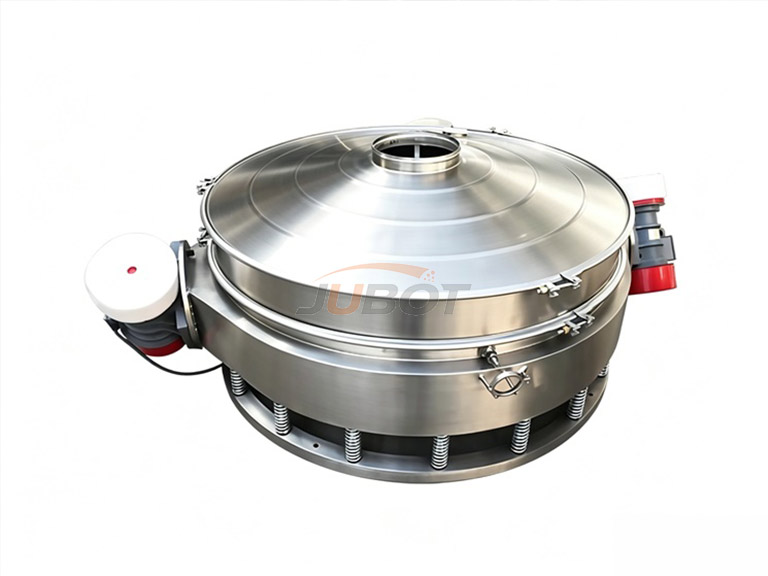

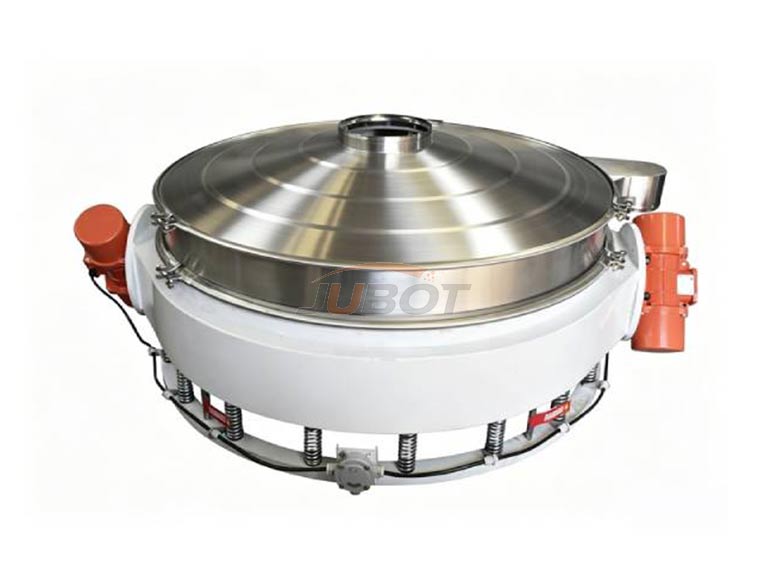

The BZP Direct Discharge Vibrating Screen is a multifunctional and high-efficiency screening equipment developed for specialized screening requirements in various industries.
The equipment adopts a horizontal vibration motor as the excitation source. Through optimized vibration design, the material movement on the screen surface can be adjusted according to different material characteristics, improving screening adaptability and performance.
With a direct discharge structure, the equipment provides a short material flow path, fast discharge, large processing capacity, and stable operation. It is widely used for powder impurity removal, particle classification, and online screening applications.

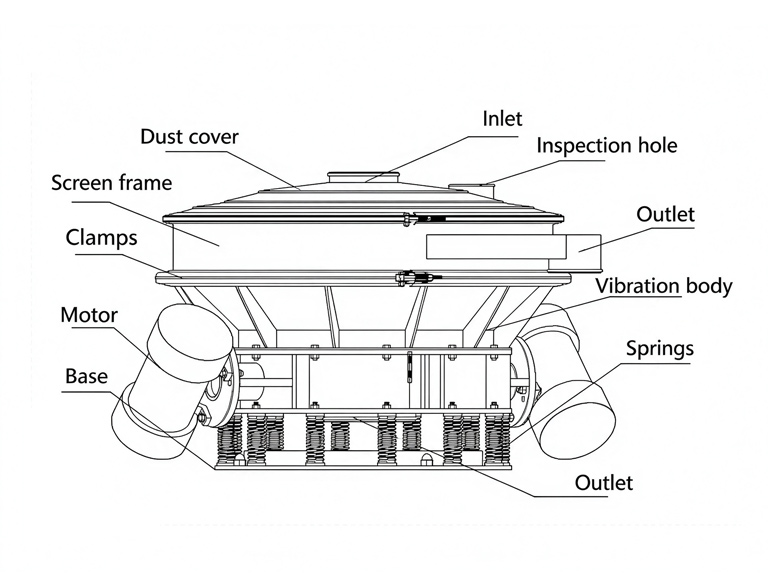

How It Works

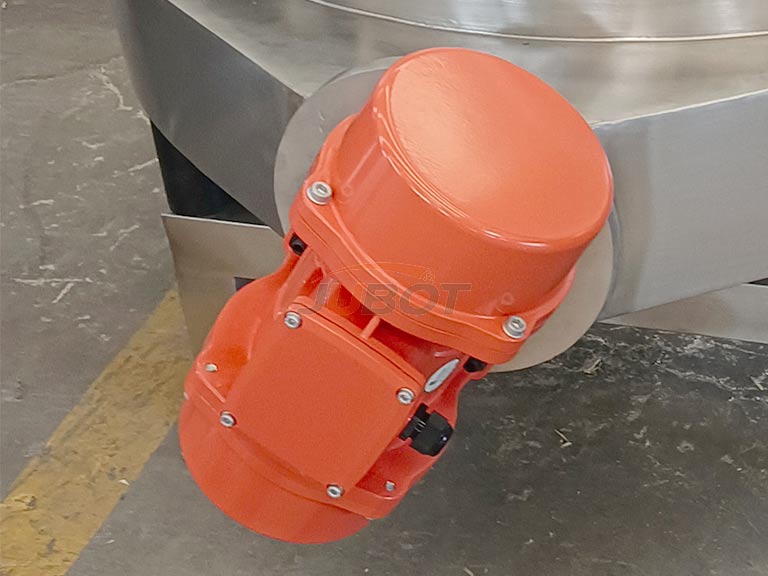

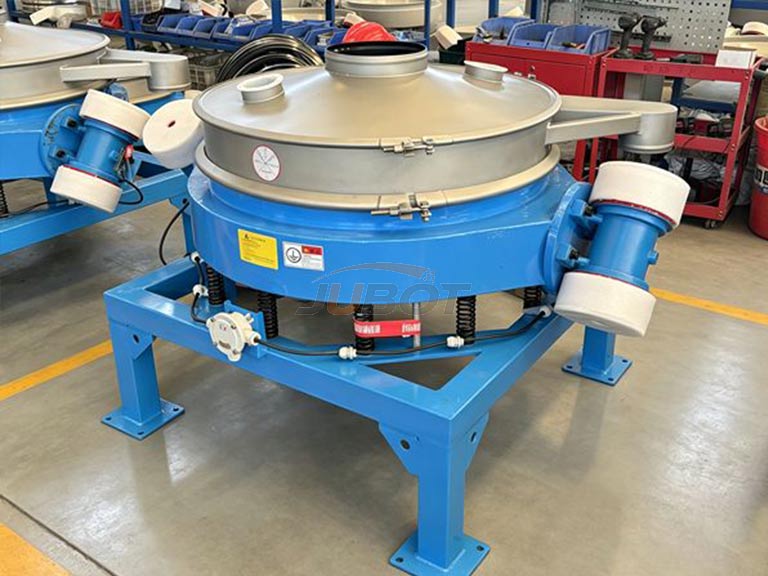

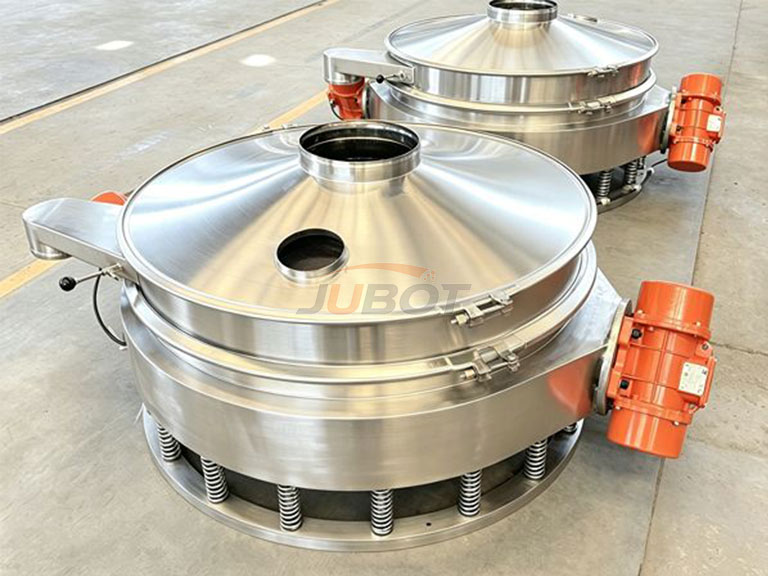

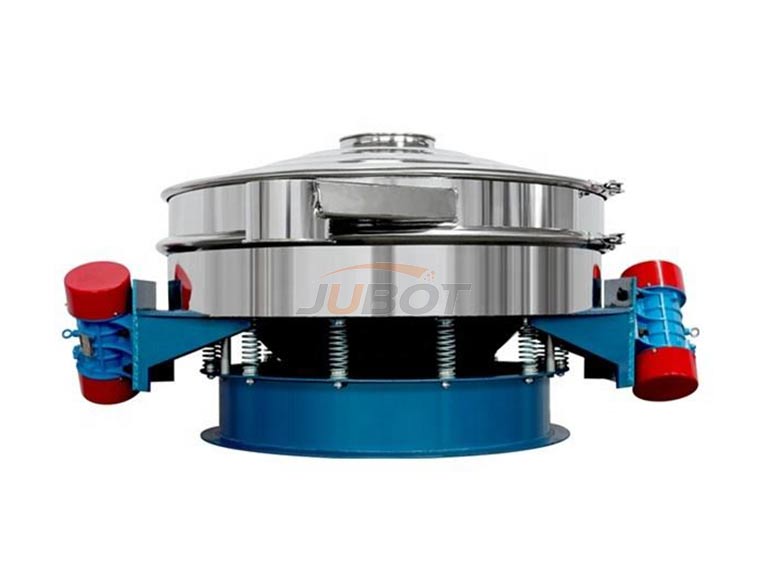

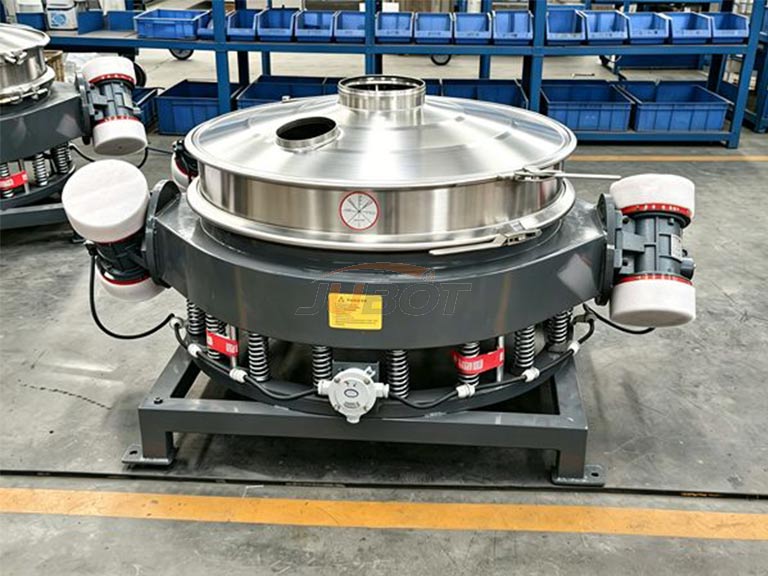

The BZP Direct Discharge Vibrating Screen is driven by a horizontal vibration motor, which generates excitation force to create stable vibration of the screen body.
During operation, the vibration force is transmitted to the screen surface, causing materials to disperse, stratify, and move forward. Fine particles pass through the screen mesh, while oversized particles and impurities are discharged directly from the outlet.
By adjusting vibration parameters, the material movement can be optimized to meet different screening requirements and achieve efficient continuous screening.
Key Features
The compact design provides simple maintenance, reliable operation, and reduced downtime.
The enclosed structure helps minimize dust emission and improves the working environment.
The large bottom discharge outlet ensures smooth material discharge and easy integration with production lines.

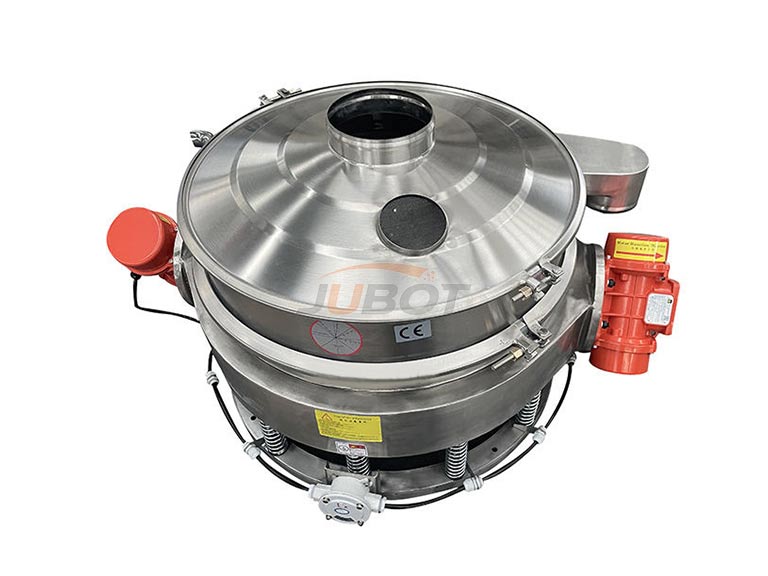

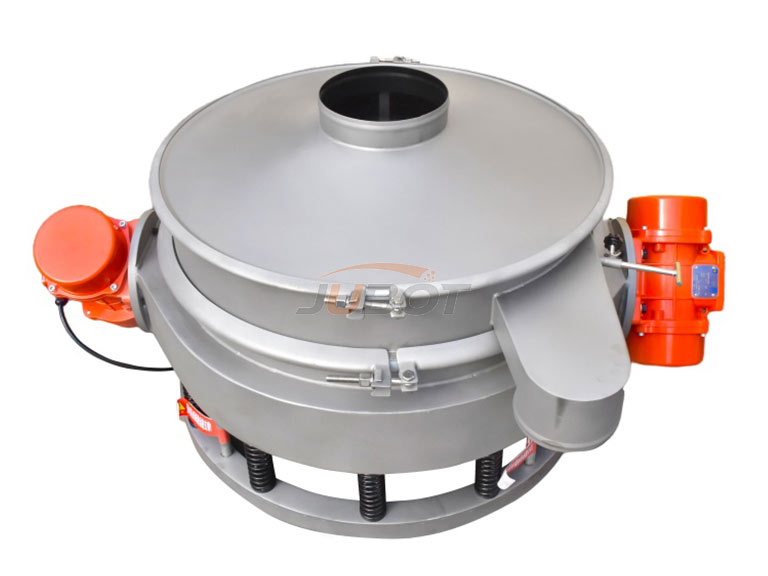

The upper discharge outlet can be adjusted within 360° to meet different installation requirements.
The optimized vibration system improves material flow efficiency and supports continuous high-volume screening.

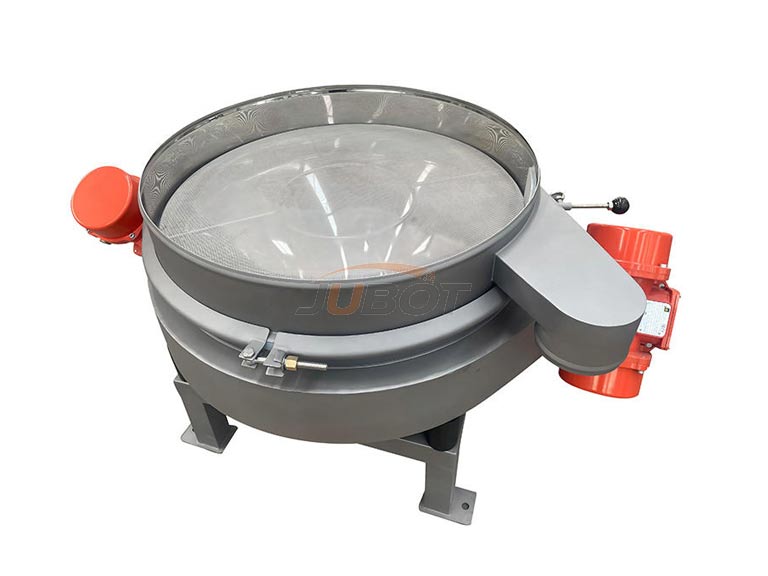

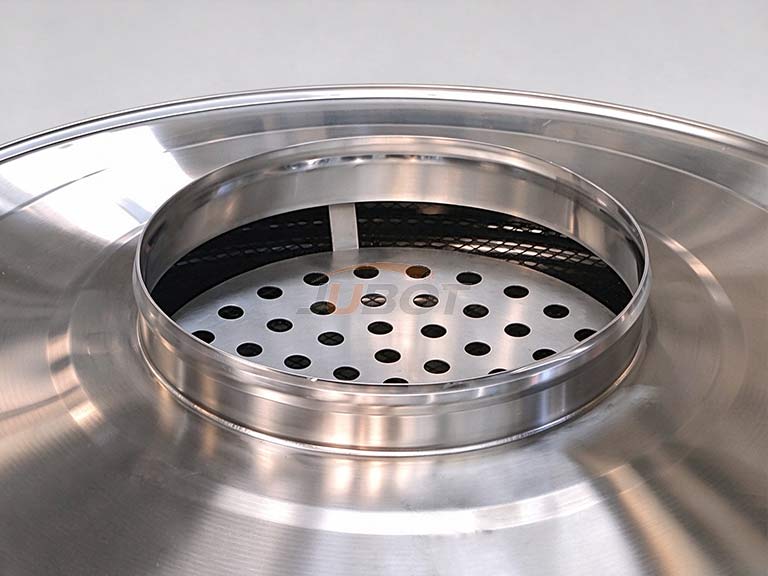

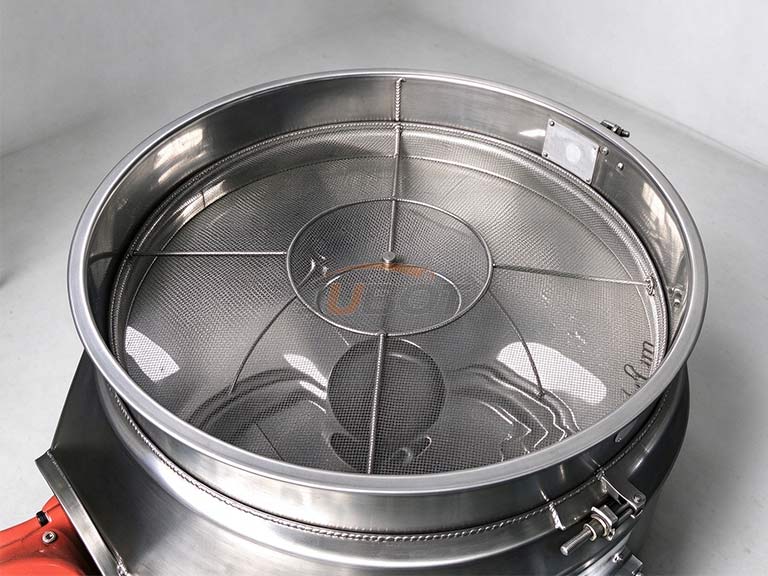

The advanced screen frame design provides strong mesh tension, extended service life, and convenient screen replacement.
Applications
The BZP Direct Discharge Vibrating Screen is mainly used for high-capacity continuous screening, impurity removal, and classification of powders and granules.
- Wheat flour
- Flour
- Starch
- Sugar powder
- Food additives
- Resins
- Plastic pellets
- Chemical powders
- Additives
- Quartz sand
- Ceramic powders
- Kaolin
- Mineral powders
- Carbon black
- Activated carbon
- Calcium carbonate
- Industrial powders
Application Example
The BZP-1000 Direct Discharge Vibrating Screen equipped with a 24-mesh screen can be used for online screening of wheat flour in instant noodle production.
The equipment effectively removes impurities, improves powder dispersion, and enhances product quality consistency.
The actual processing capacity can reach:
350 kg / 150 seconds (approximately 8.4 t/h)
Customized Solutions
Customized designs are available according to customer production requirements, including:
- Elevated feed inlet design
- Butterfly valve installation at discharge outlet
- Customized interface dimensions

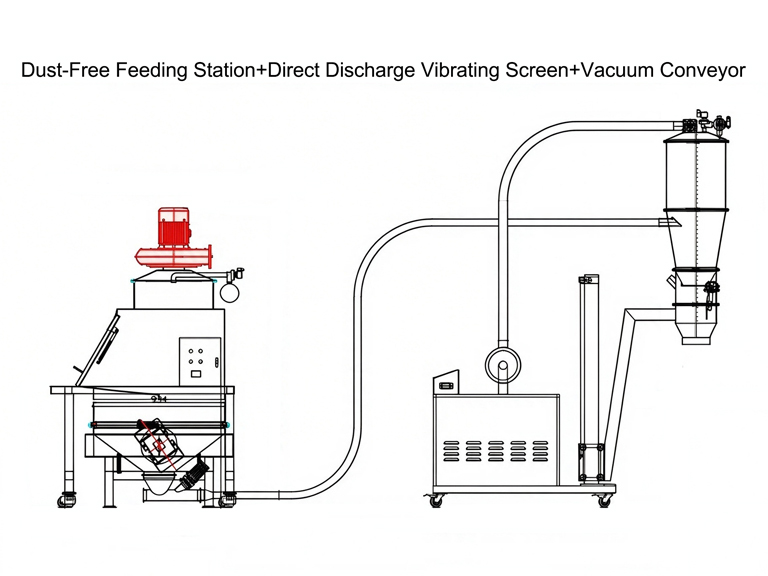

- Integration with different production lines
- Providing flexible solutions to meet various installation conditions and process requirements.
Specification
| Model | BZP-600 | BZP-800 | BZP-1000 | BZP-1200 | BZP-1500 |
| Diameter (mm) | Φ600 | Φ800 | Φ1000 | Φ1200 | Φ1500 |
| Screen Area (m²) | 0.21 | 0.41 | 0.62 | 0.94 | 1.22 |
| Screen Mesh (mesh) | 2-500 | ||||
| Feed Particle Size | <Φ10 | <Φ15 | <Φ20 | <Φ30 | |
| Vibration Frequency (rpm) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Effective Screen Diameter (mm) | Φ560 | Φ760 | Φ930 | Φ1130 | Φ1430 |
| Number of Layers | 1 | ||||
| Power (Kw) | 0.18 | 0.18 | 0.25 | 0.55 | 0.75 |
