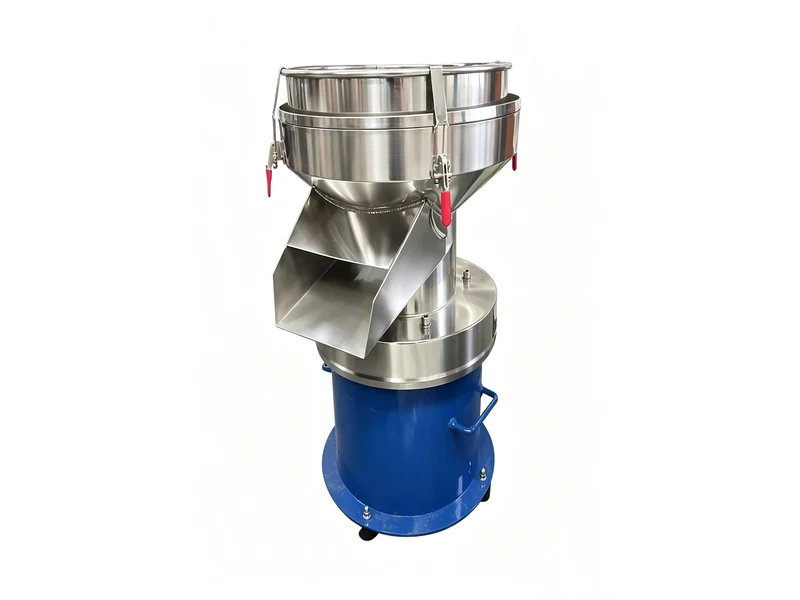

Product Overview
The B-450 filter machine is a compact, portable vibrating screen filter designed for single-layer screening and filtration operations across various industries. It is particularly well-suited for processing small production volumes or materials with low impurity content (it is generally recommended that the oversize material content does not exceed 5%).
The machine is constructed entirely from stainless steel (304) or with stainless steel (304) in all product-contact parts. It features a compact design, light weight, easy mobility, and a small footprint.
Working Principle
It uses the upright vibrating motor as the excitation source of vibration, equipped with eccentricity hammer on the both sides of motor, change circumrotate to level, upright and incline movement, then pass these three movements to the surface of the screen. By adjusting the phase angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
Product Advantages
Constructed from stainless steel (304), making it highly suitable for liquid filtration and impurity removal.
Equipped with an IP54-rated motor and anti-seepage treatment for enhanced operational safety, preventing liquid damage to the motor.

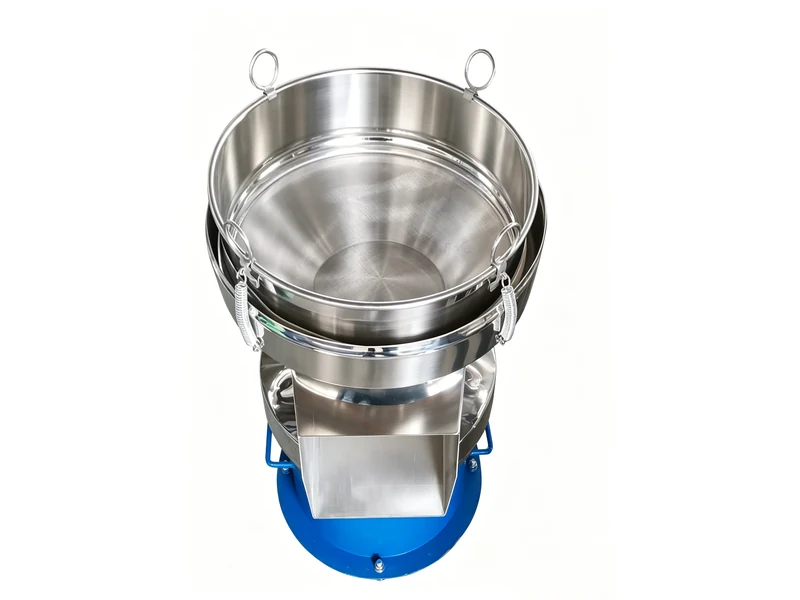

Features a raised screen frame design to prevent slurry splashing, along with a large observation port for easy inspection of the screen surface.
Special inlet and outlet gate design ensures more uniform material distribution and higher filtration accuracy.
Areas of Application
Starch, soy milk filtration, fruit juice, beverages, dairy products, seasonings.
Coatings, printing inks, color pastes, paints, latex paints, aluminum paste.
Slurry, pulp, waste liquids, traditional Chinese and Western medicinal liquids, etc.
Specification
| Description | Data |
| Sieving Diameter (mm) | 450 |
| Effective Sieving Area (㎡) | 0.159 |
| Layer | 1 |
| Application | Liquids and solids with little impurity. |
| Noise (dB) | ≤85 |
| Amplitude (mm) | 3~5 |
| Motor Voltage (V) | 380 or customized |
| Vibration Frequency (RPM) | 1460 |
| Power (KW) | 0.18 |

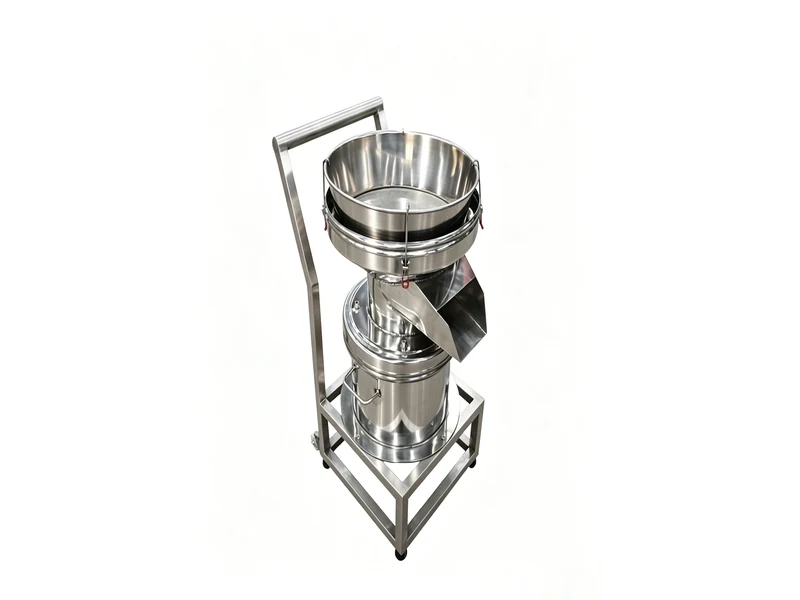

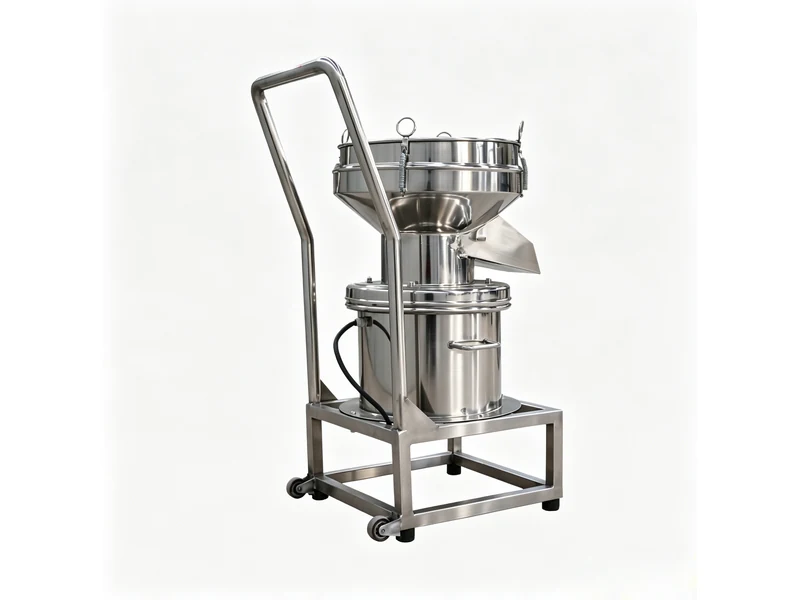

| Overall Dimensions (mm) | 500×560×680 (500×560×1000 with mobile base) |
| Weight (kg) | 40 (48 with mobile base) |
