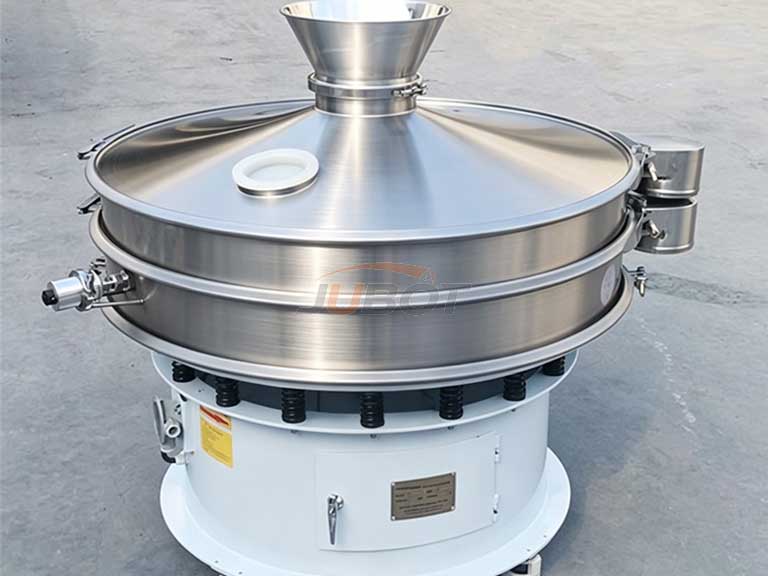

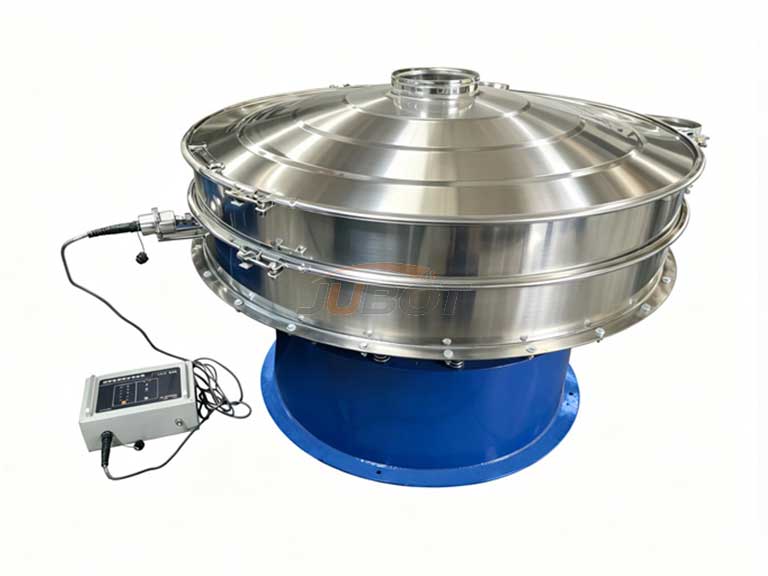

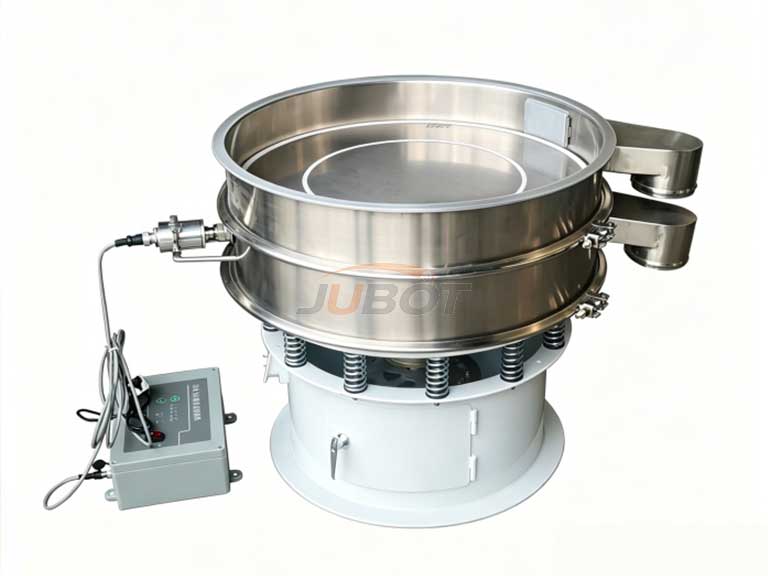

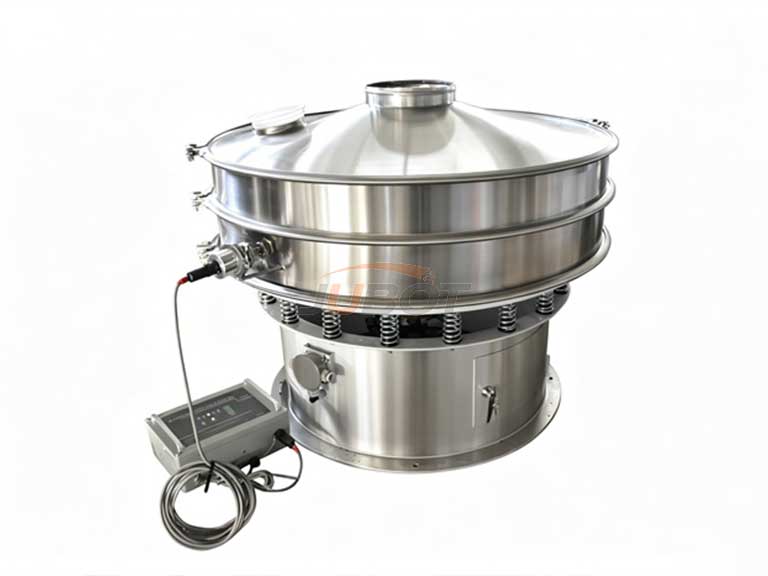

Product Overview
Our Ultrasonic Vibrating Screen is an advanced screening solution designed for high-precision separation of fine powders and challenging materials.
By integrating ultrasonic vibration technology with a high-performance vibrating screening system, the equipment effectively improves screening efficiency, reduces mesh blockage, and delivers stable separation performance.

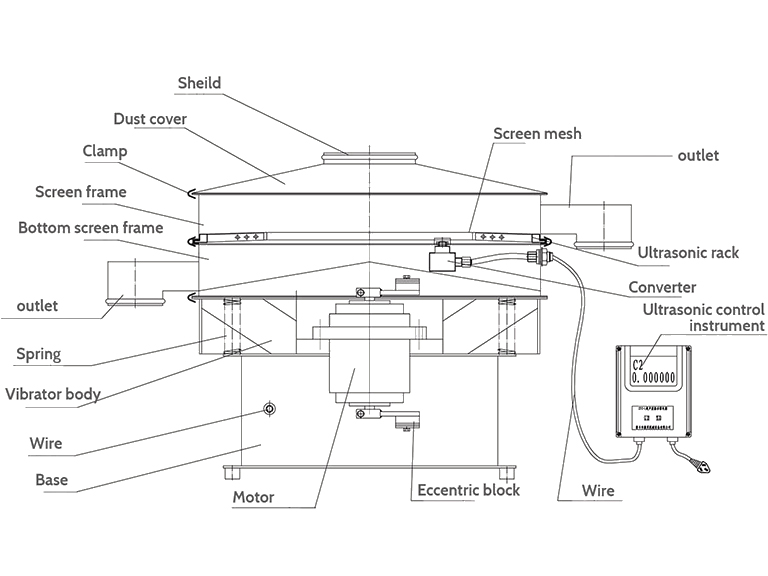

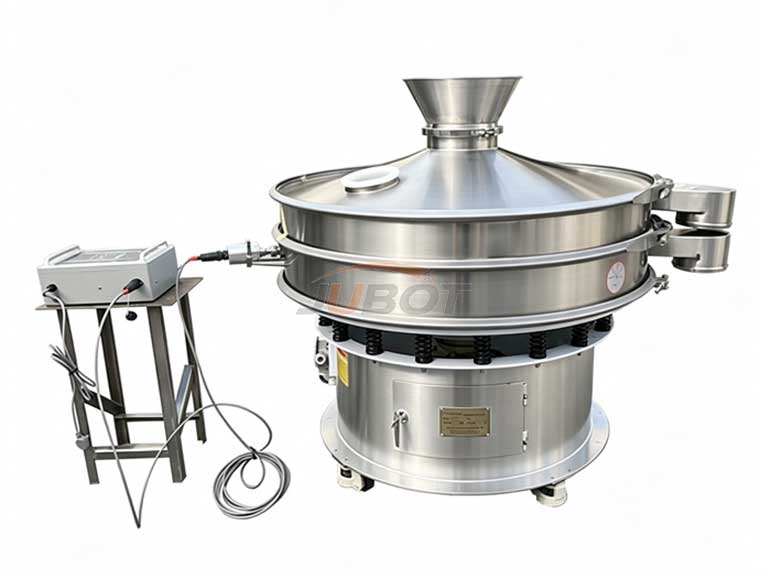

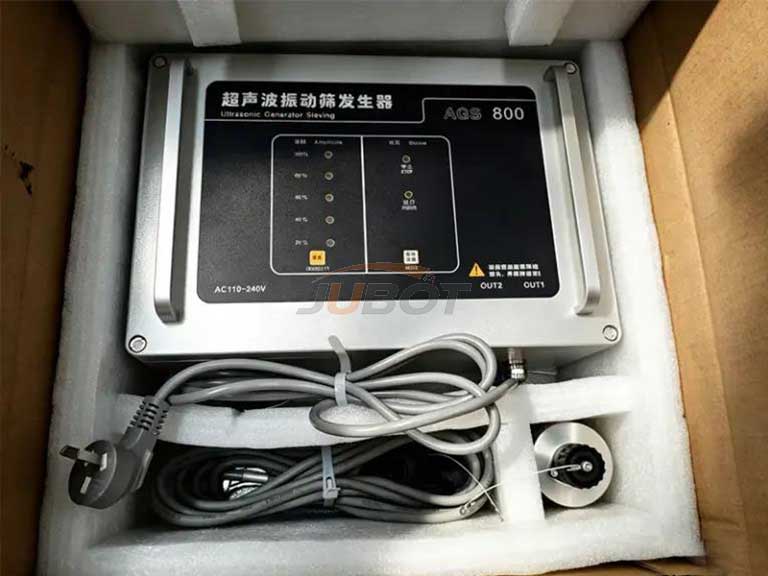

The system consists of a vibrating screen unit, ultrasonic generator, and ultrasonic transducer. The ultrasonic technology provides additional high-frequency vibration energy to the screen mesh, enabling efficient screening of ultra-fine powders and materials that are difficult to process with conventional screening equipment.
How It Works

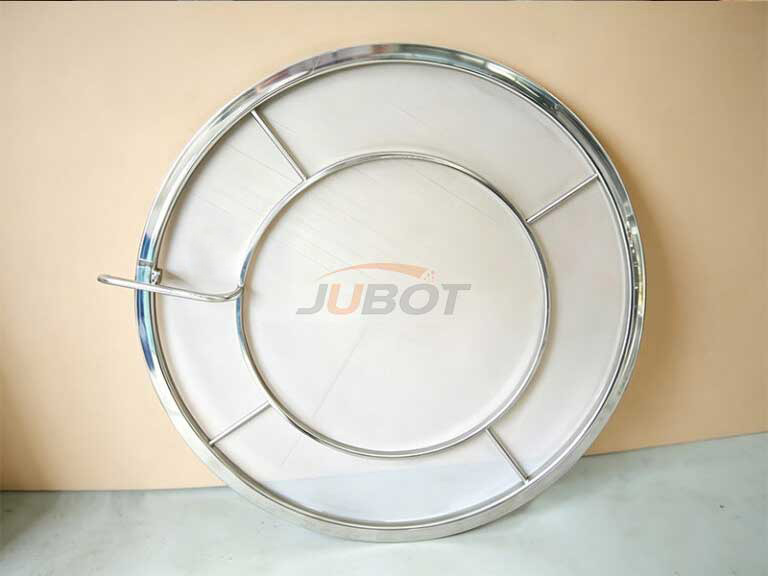

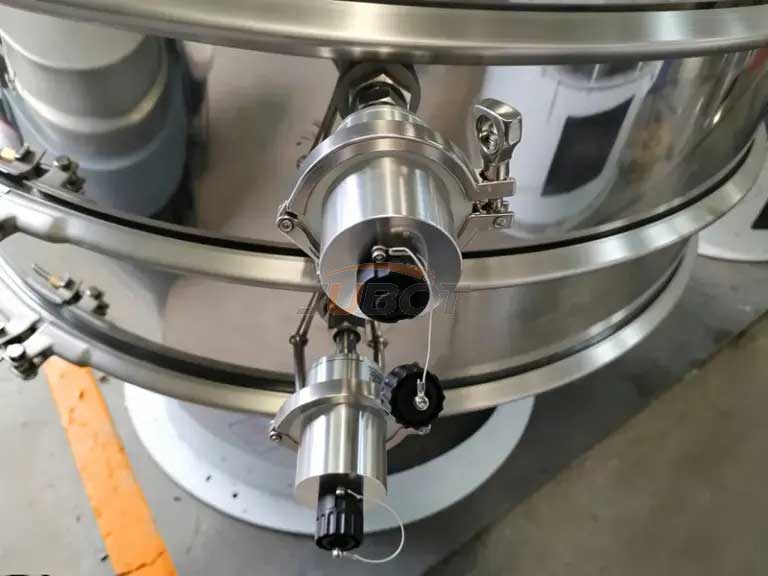

The ultrasonic vibrating screen operates by introducing high-frequency ultrasonic vibration onto the screen mesh through a dedicated ultrasonic generator and transducer system.
During operation, the ultrasonic energy creates a continuous micro-vibration on the mesh surface. This helps reduce particle adhesion, prevent mesh clogging, and improve material passing efficiency.
Combined with the three-dimensional vibration movement of the screening machine, the ultrasonic system enhances particle separation and maintains consistent screening performance, especially for fine powders with high viscosity, strong adsorption, or electrostatic characteristics.
Key Features
Improves separation performance for ultra-fine powders and difficult-to-screen materials.
High-frequency ultrasonic vibration helps prevent screen blockage and maintains continuous operation.
Provides precise particle size classification and consistent product quality.
Optimizes material flow through the screen surface, increasing overall screening efficiency.
Suitable for materials with characteristics such as high adsorption, easy agglomeration, high static electricity, low density, and fine particle size.

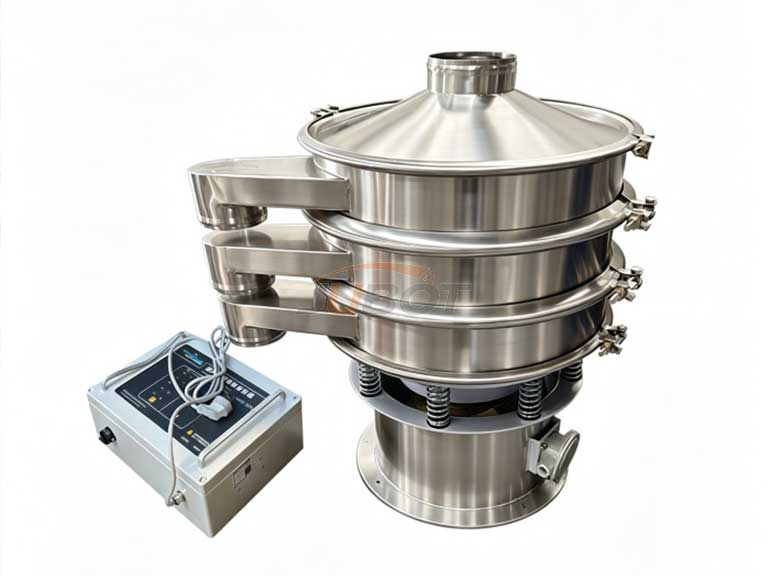

Available in single-layer or multi-layer designs to meet different production requirements.
Advanced ultrasonic control technology ensures stable operation and optimized screening performance.
Applications
The Ultrasonic Vibrating Screen is widely used in industries requiring high-precision powder classification and separation, including:
-
Chemical Industry
-
Pharmaceutical Industry
-
Food Processing
-
Powder Metallurgy
-
New Energy Materials
-
Ceramic Materials
-
Mineral Processing
-
Fine Powder Manufacturing
It is particularly suitable for applications where conventional screening equipment faces challenges such as low efficiency, screen blockage, or unstable separation performance.
Specification
| Model | Sieving Diameter (mm) | Effective Sieving Area（mm） | Power(Kw) |
| BC-400 | Ø400 | 0.08 | 0.18 |
| BC-600 | Ø600 | 0.246 | 0.55 |
| BC-800 | Ø800 | 0.453 | 0.75 |
| BC-1000 | Ø1000 | 0.679 | 1.5 |
| BC-1200 | Ø1200 | 0.94 | 1.75 |
| BC-1500 | Ø1500 | 1.52 | 2.2 |
| BC-1800 | Ø1800 | 2.25 | 2.2 |
| BC-2000 | Ø2000 | 2.74 | 7.5 |
