Product Overview

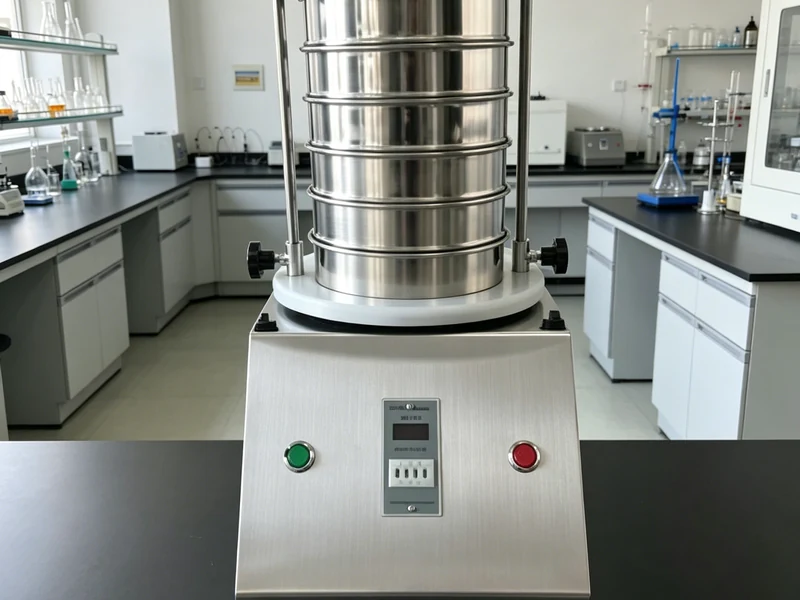

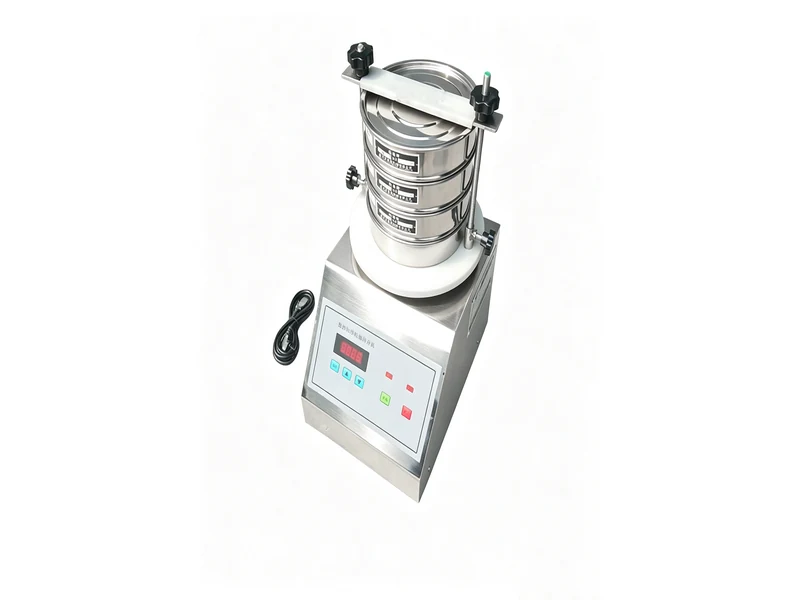

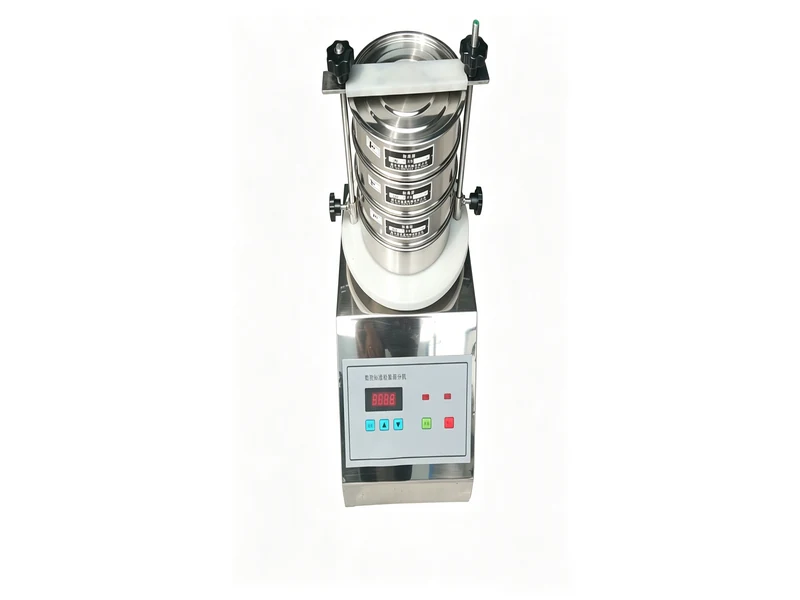

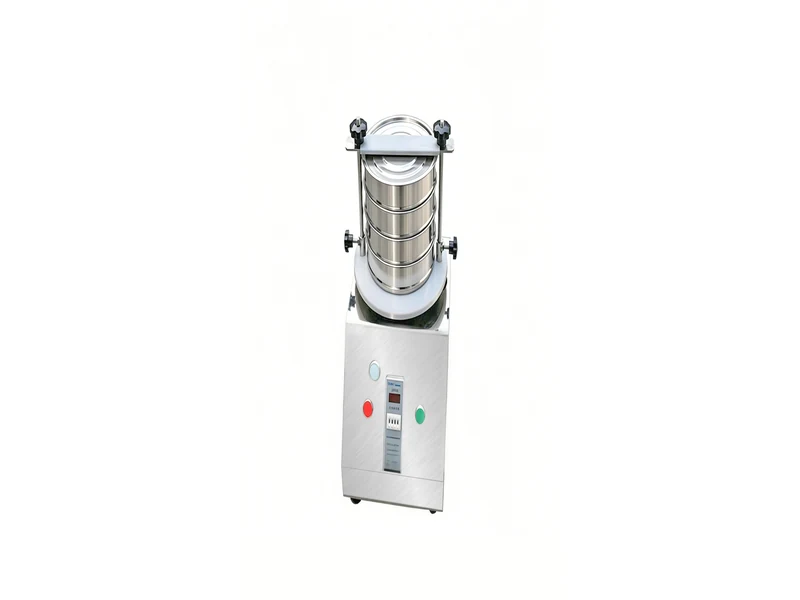

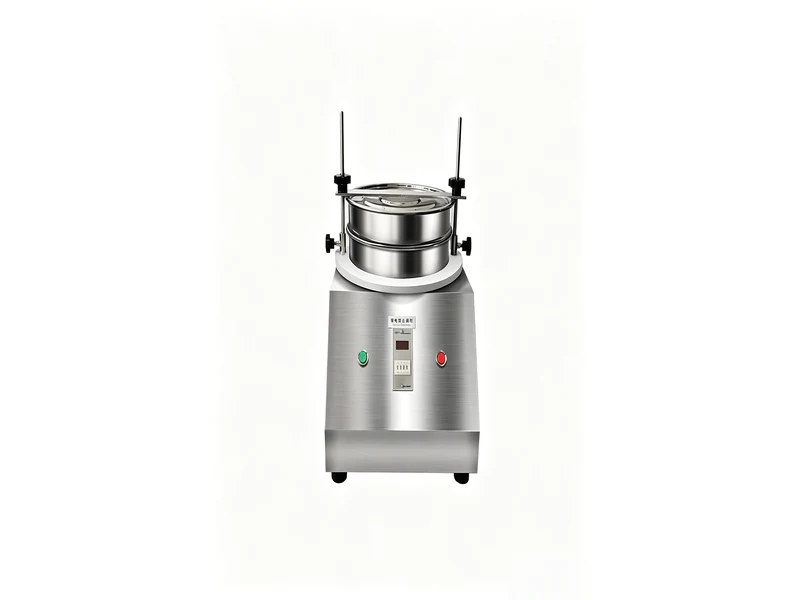

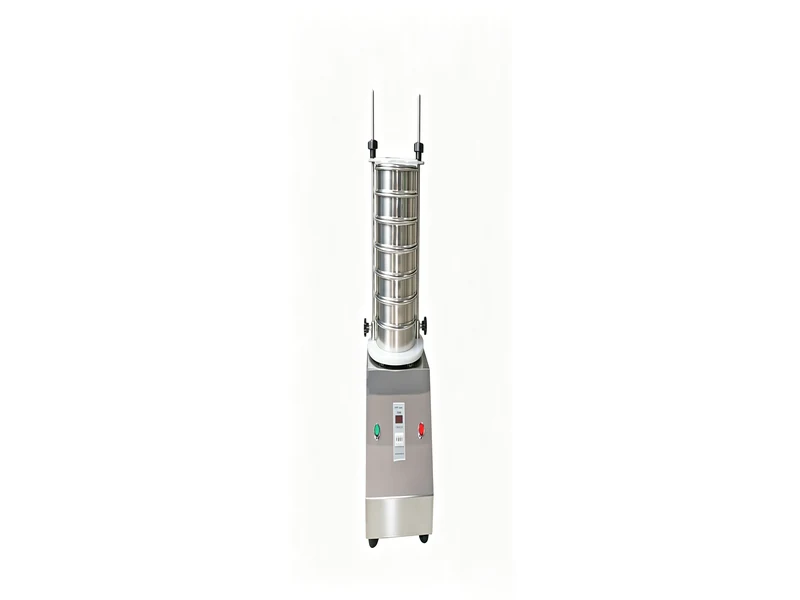

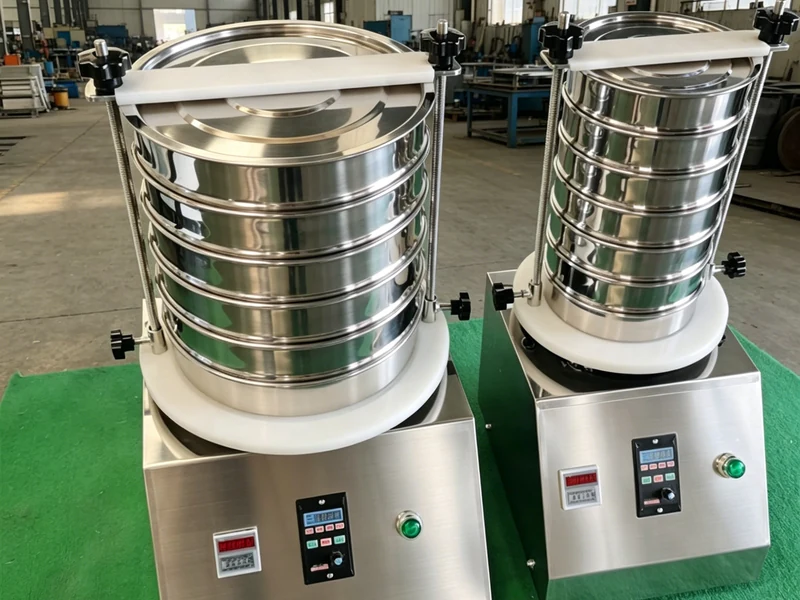

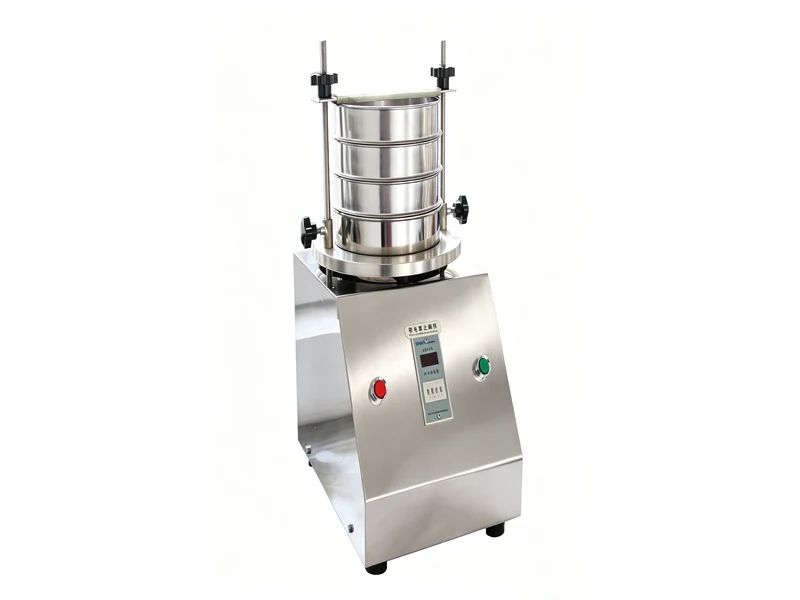

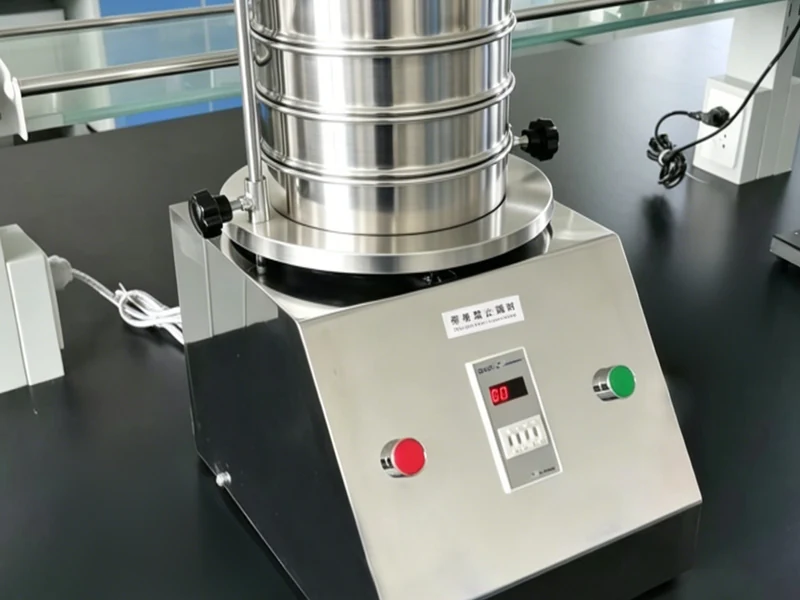

The B-200/300 standard analysis sieve (also known as laboratory sieve or inspection sieve) is a standard analysis sieve integrating particle classification and liquid filtration. It is suitable for use in laboratories and quality inspection rooms for precise particle size analysis of granular and powder materials, as well as for testing the solid content in liquids. It features low noise, high efficiency, and high accuracy.
Working Principle
A new type of vibration motor generates three-dimensional vibrations in horizontal, vertical, and inclined directions. These vibrations are then transmitted to the standard analysis sieve and the material surface, thereby achieving excellent classification.
Features
Adjustable screening time with automatic shutdown, from 1s to 99h, ensuring repeatability of test results.
Built-in forward and reverse rotation function.
Multiple particle size fractions can be obtained simultaneously, allowing precise classification into 2-7 particle size ranges.
Suitable for particle size classification and analysis of both slurries and powders.
Attractive appearance, small footprint, light weight, and low noise level.
No fixing required; can be operated on a bench top.
Technical Parameters
| No. | Description | Data |
| 1 | Screen Frames(Layers) | 1~7 |
| 2 | Screen Frame Diameter(mm) | φ200 / 300 |
| 3 | Screening Particle Size(mm) | 0.025-5 |
| 4 | Noise(dB) | < 50 |
| 5 | Feed Quantity(g) | ≤ 200 |
| 6 | Amplitude(mm) | ≤ 5 |
| 7 | Vibration Frequency(RPM) | 1440 |
| 8 | Overall Dimensions (L×W×H)(mm) | 360×280×(300+N×50)(φ200) |
| 9 | Power Supply(V; Hz) | 220; 50 |
| 10 | Weight(kg) | 36 (φ200) |
| 11 | Power(Kw) | 0.12 |
| *12 | Ultrasonic Power(Kw) | 50-130 |
| *13 | Ultrasonic Frequency(Hz) | 32K |
| *14 | Ultrasonic Power Supply(V; Hz) | 200; 50 |
