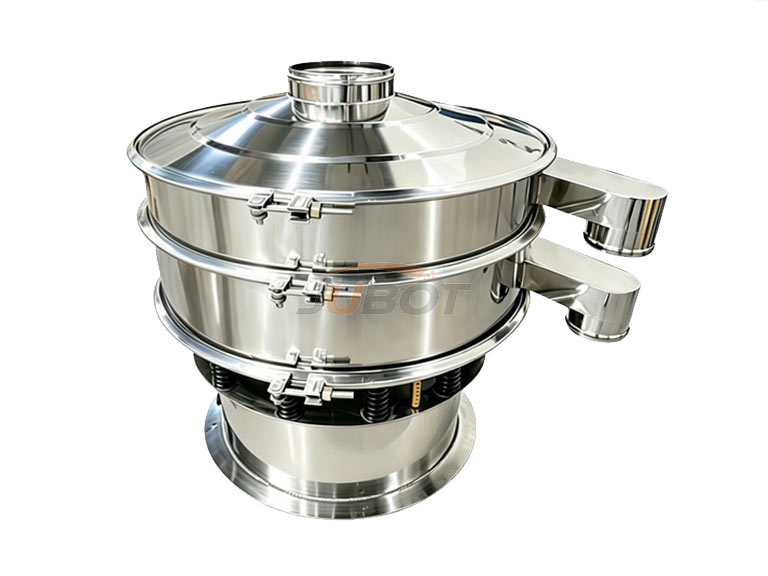

Product Overview
The Rotary Vibrating Screen is a versatile and high-efficiency screening solution designed for accurate classification, separation, and filtration of powders, granules, and liquid-solid mixtures.
With a compact structure, advanced vibration technology, and flexible screening configurations, the equipment provides reliable performance for a wide range of industrial applications.
The machine is engineered to deliver efficient screening, easy operation, and convenient maintenance while maintaining stable processing performance under different material conditions.
The Rotary Vibrating Screen is widely used for particle size classification, impurity removal, and solid-liquid separation in industries requiring precise and continuous screening operations.
How It Works

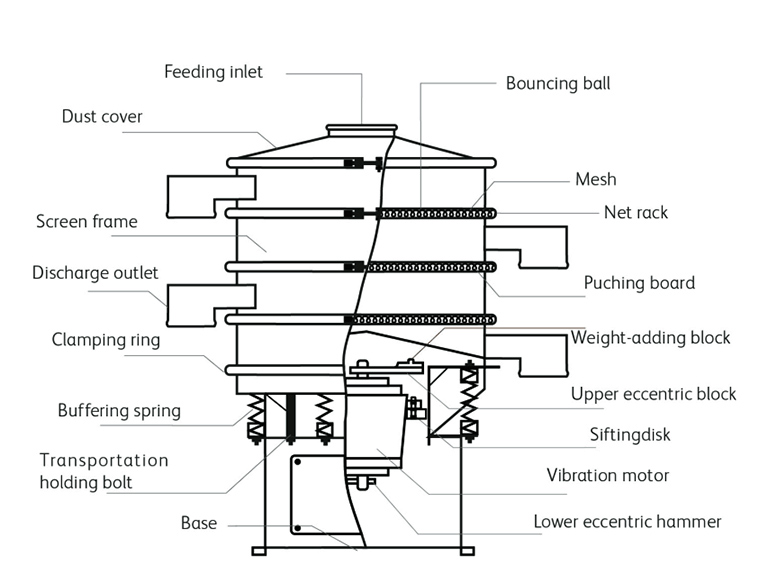

The Rotary Vibrating Screen is driven by a vertically mounted vibration motor equipped with adjustable eccentric weights installed on both the upper and lower ends of the motor shaft.
During operation, the eccentric weights generate a three-dimensional vibration force consisting of horizontal, vertical, and tangential components. This combined vibration movement is transmitted to the screen surface, causing the material to spread, stratify, and move along the screening area.

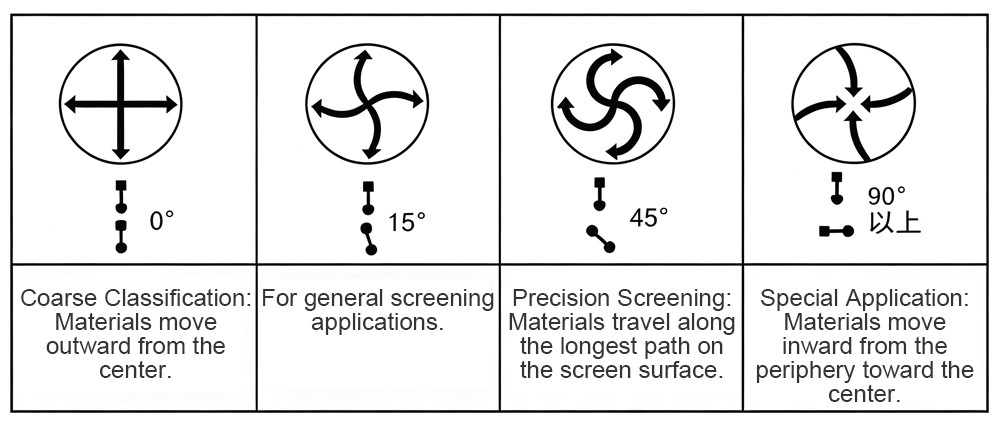

By adjusting the phase angle between the upper and lower eccentric weights, operators can optimize material movement speed, residence time, and screening efficiency according to different processing requirements.
The optimized vibration pattern enables efficient separation of materials while ensuring stable operation and consistent screening performance.

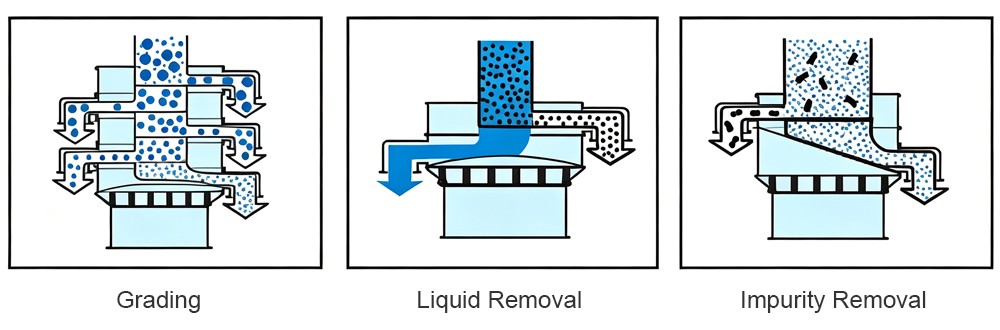

Purposes of Use
The Rotary Vibrating Screen provides accurate particle size classification for dry and wet materials.
With single-layer or multi-layer screening configurations, the equipment can separate materials into different size fractions within one continuous process, ensuring consistent particle distribution and reliable product quality.
Multi-deck designs allow multiple grades to be obtained simultaneously, improving production efficiency and reducing the need for additional processing steps.
The Rotary Vibrating Screen is designed for efficient solid-liquid separation applications.
Through controlled vibration movement, liquid can be separated quickly from solid particles while maintaining effective material classification.
The equipment is suitable for filtration, dewatering, and separation processes involving liquid-solid mixtures.
The equipment effectively removes oversized particles, foreign materials, and unwanted impurities from raw materials.
The continuous discharge design allows separated impurities to be removed during operation, helping maintain stable production efficiency and improve final product quality.
Key Features
The Rotary Vibrating Screen is suitable for processing various materials, including fine powders, granules, coarse particles, flakes, and viscous liquids.
It can handle materials with different characteristics and provides flexible screening solutions for various production requirements.
The optimized vibration system ensures efficient material separation and precise particle size classification.
The equipment is capable of fine screening performance down to 500 mesh (0.028 mm), meeting demanding separation requirements.

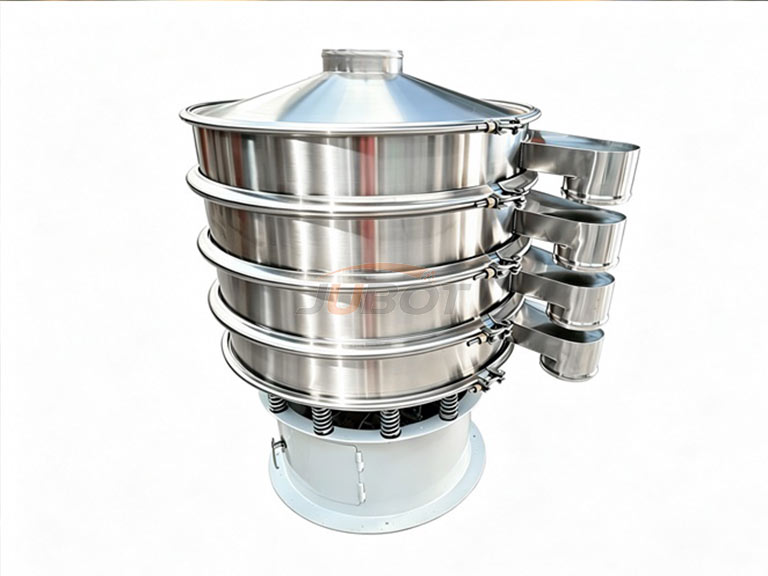

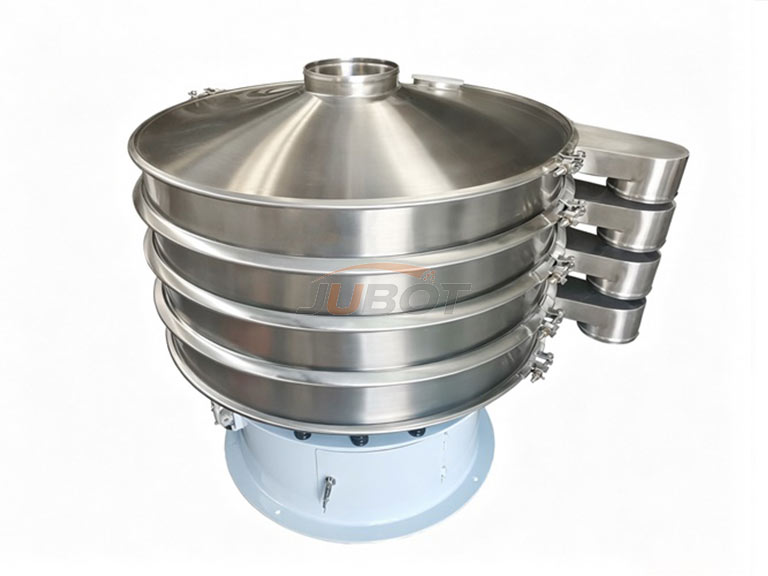

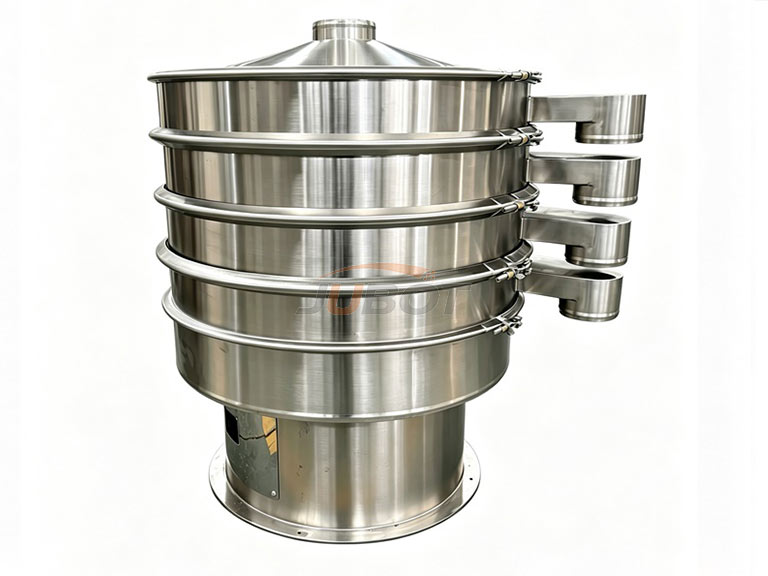

The machine can be equipped with 1 to 5 screen decks, allowing 2 to 6 different product fractions or filtration grades to be achieved in a single operation.
This flexible design helps maximize production efficiency and reduce equipment footprint.

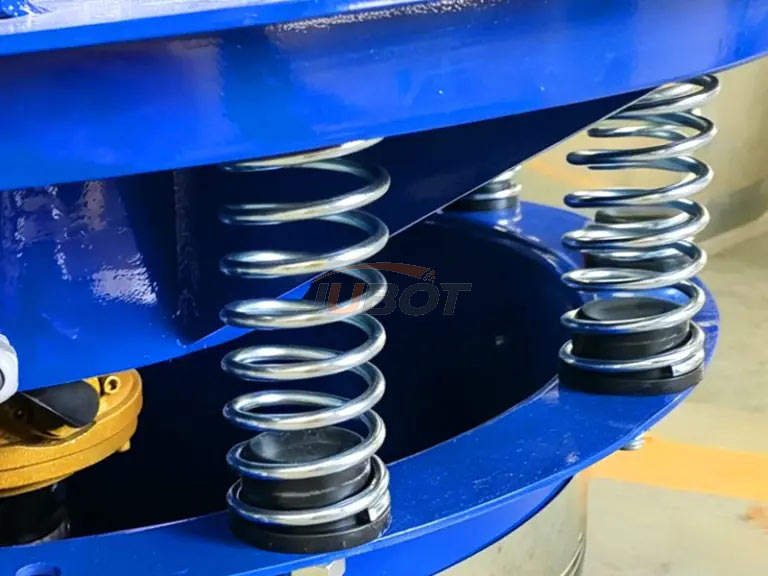

The robust mechanical structure ensures stable operation and long service life.
The optimized screen design allows convenient cleaning and maintenance while reducing downtime during production.

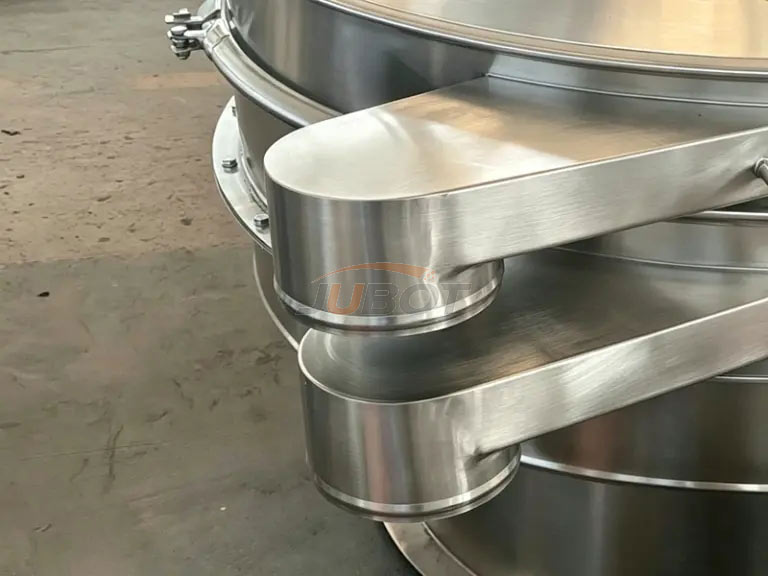

Oversized materials and separated impurities can be discharged automatically during operation.
The continuous working design improves production efficiency and reduces manual operation requirements.

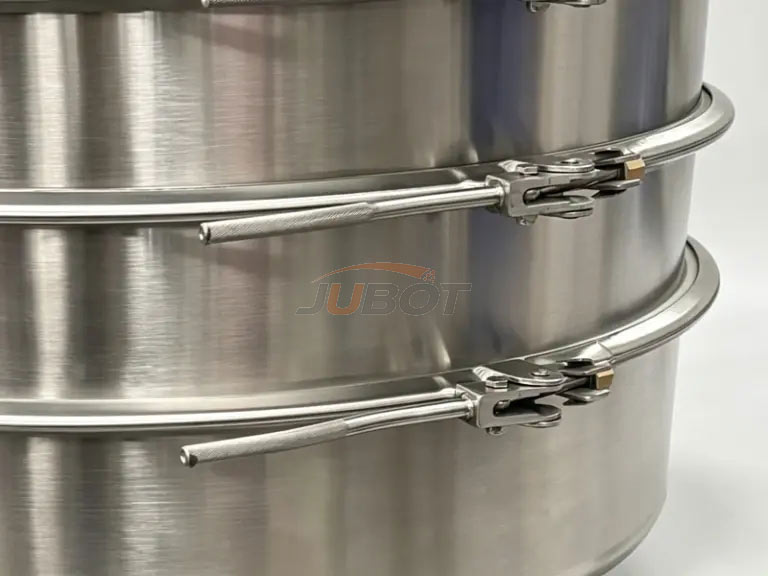

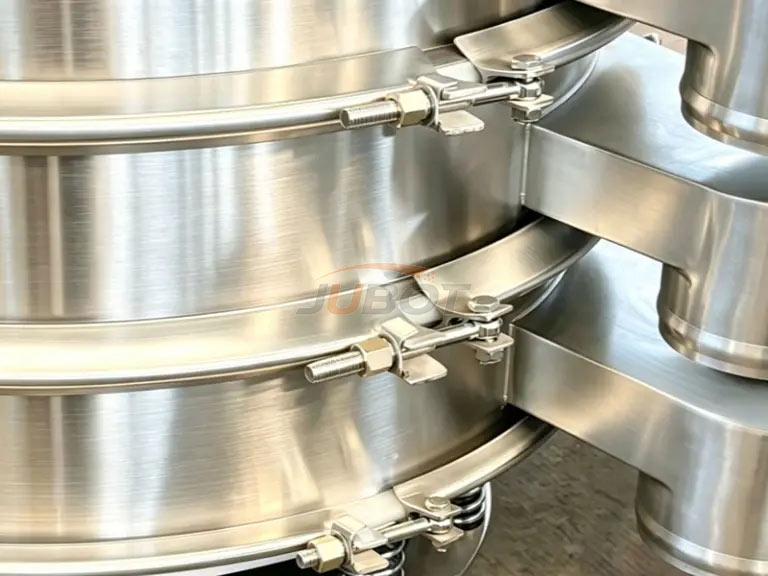

The screen structure is designed for convenient installation, cleaning, and replacement.
The simplified maintenance process helps minimize production interruption and improve equipment utilization.
Applications

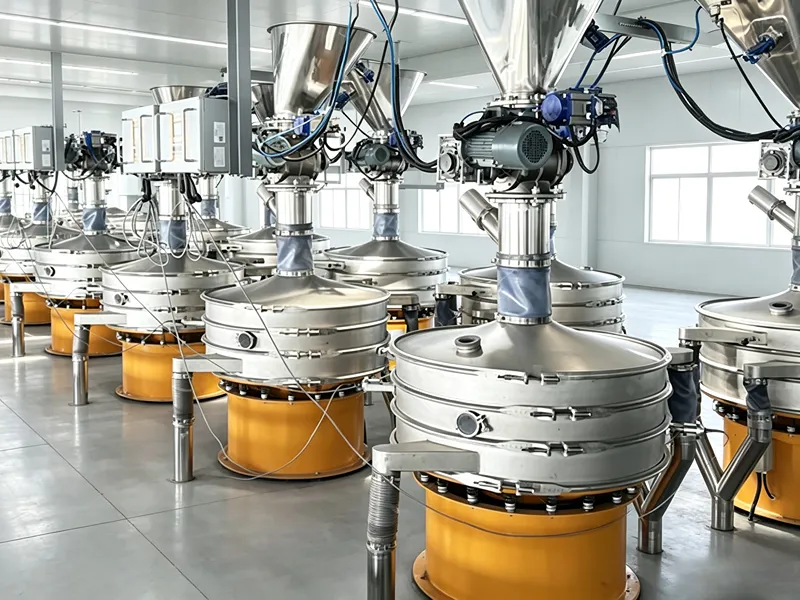

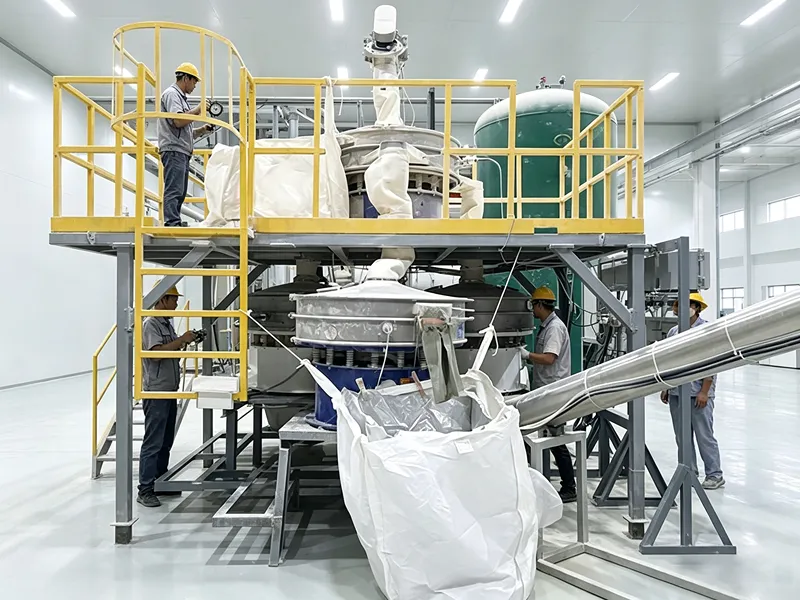

The Rotary Vibrating Screen is widely used in industries requiring accurate classification, filtration, and impurity removal.
- Milk powder
- Flour
- Starch
- Sugar
- Seasonings
- Cocoa powder
- Tea powder
- Protein powder
- Liquid food materials
- API powders
- Pharmaceutical excipients
- Granules
- Herbal extracts
- Powder ingredients
- Resins
- Pigments
- Coatings
- Catalysts
- Plastic particles
- Fine chemical materials
- Lithium battery cathode materials
- Lithium iron phosphate materials
- Graphite materials
- Silicon-carbon materials
- Battery additives
- Metal powders
- Ceramic materials
- Abrasives
- Fertilizers
- Minerals
- Building materials
- Recycling materials
Specification
| Model | Sieving Diameter (mm) | Effective Sieving Area（㎡） | Power(Kw) |
| B-400 | Ø400 | 0.08 | 0.18 |
| B-600 | Ø600 | 0.246 | 0.55 |
| B-800 | Ø800 | 0.453 | 0.75 |
| B-1000 | Ø1000 | 0.679 | 1.5 |
| B-1200 | Ø1200 | 0.94 | 1.75 |
| B-1500 | Ø1500 | 1.52 | 2.2 |
| B-1800 | Ø1800 | 2.25 | 2.2 |
| B-2000 | Ø2000 | 2.74 | 7.5 |
