Product Overview

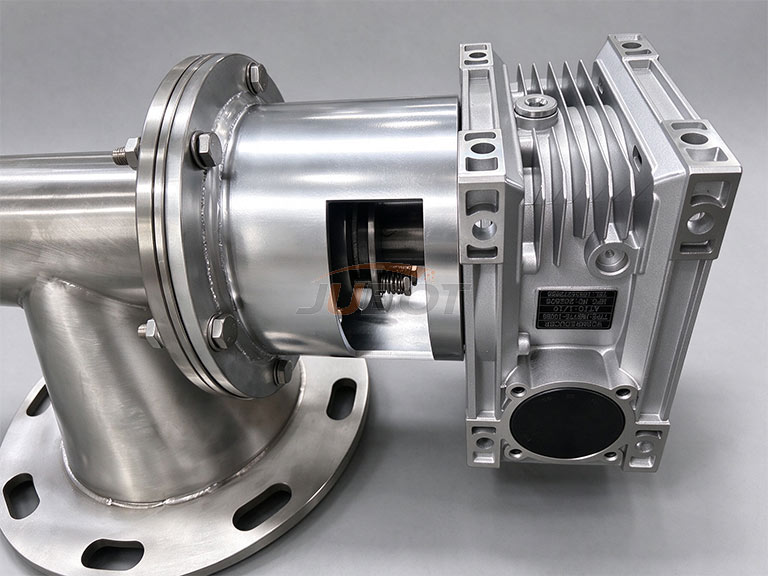

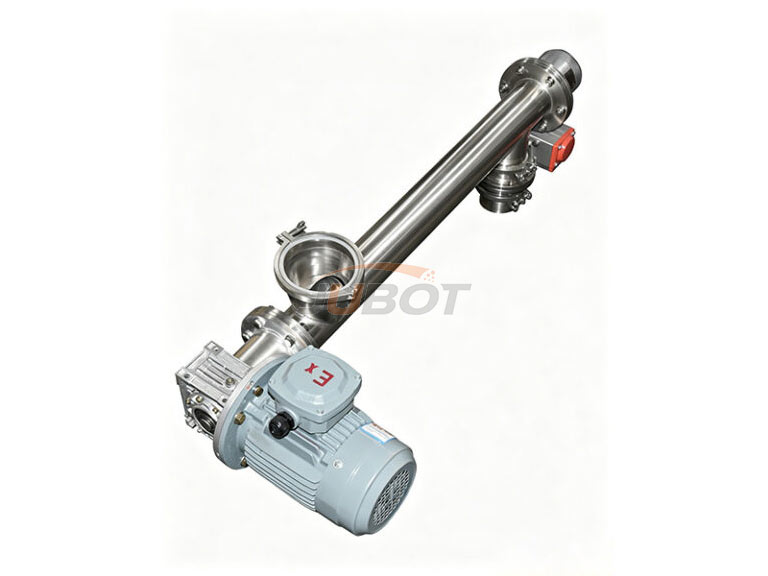

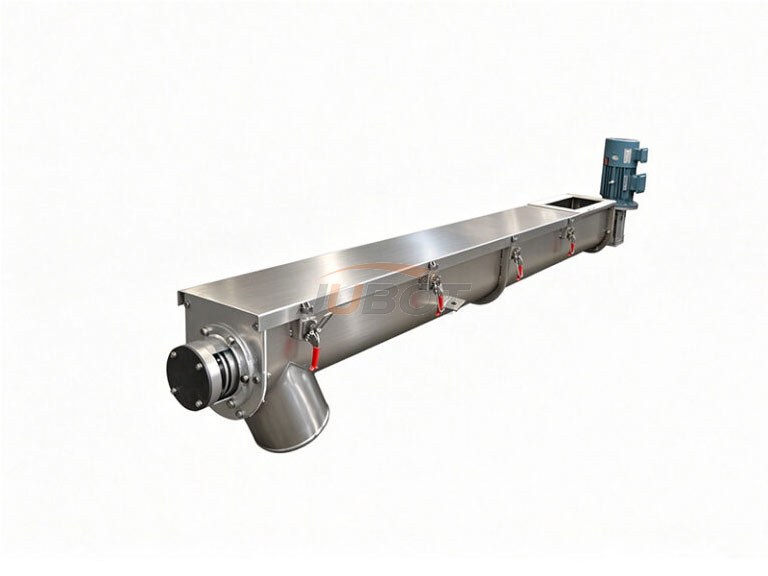

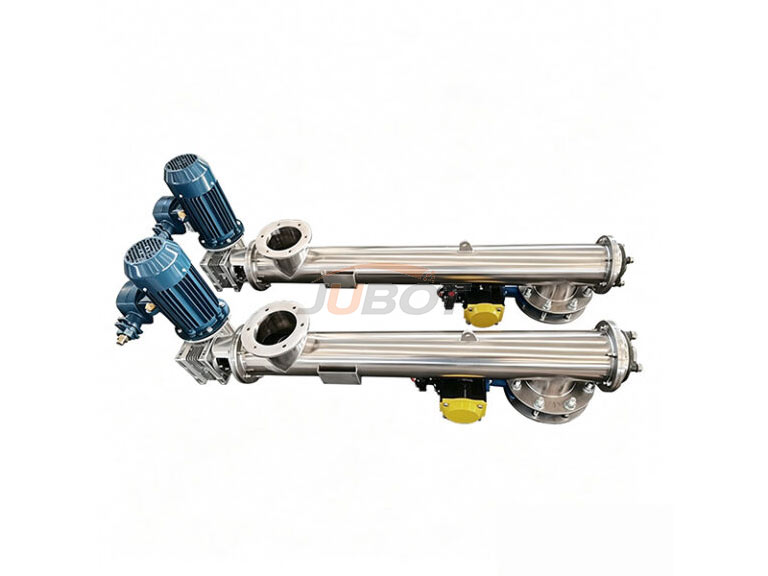

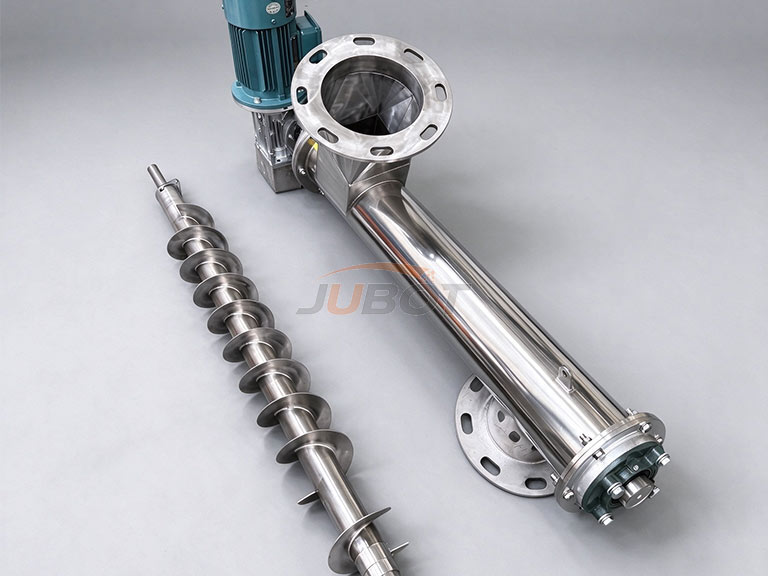

The screw conveyor is a transport device that uses rotating screw blades to move materials continuously. It is primarily used for transporting powders, granules, and small pieces horizontally, diagonally, or vertically. Its structure typically consists of a drive motor, gearbox, screw shaft, screw blades, transport pipe, inlet, and outlet. Depending on its design, it can be divided into tube-type screw conveyors and U-shaped screw conveyors. Tube-type screw conveyors offer a completely enclosed design, ensuring dust-free operation, while U-shaped conveyors have a hinged top, making them easy to clean and remove any remaining material.
Working Principle

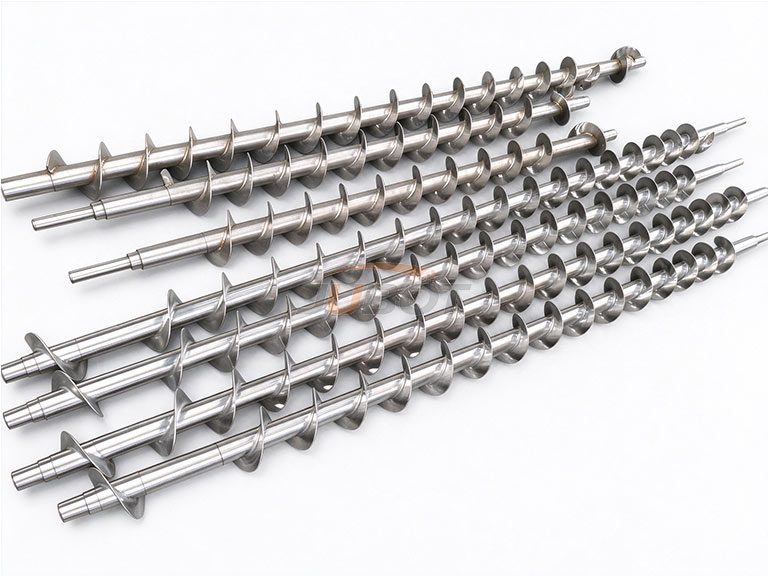

The core working principle of the screw conveyor is to use the thrust generated by rotating screw flights to move materials in the conveying direction. The material enters the conveyor through the feed inlet and falls onto the rotating spiral blades. The motor drives the screw shaft to rotate, pushing the material forward. As the material is continuously conveyed, it moves from the feeding end to the discharge end, achieving continuous conveying.
Features and Advantages
The screw conveyor has a compact structure and does not require complicated supporting structures, making it suitable for installation in limited spaces.
The screw conveyor adopts an enclosed structure, which effectively prevents material from escaping and reduces dust pollution in the working environment.
Compared with other conveying equipment, the screw conveyor has a relatively simple structure, making it easy to inspect, maintain, and repair.
Applications

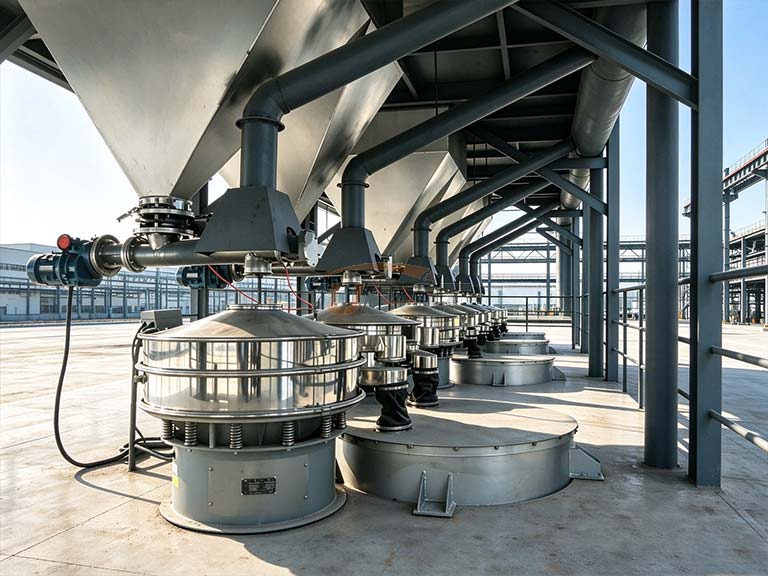

Screw conveyors have a wide range of applications and are mainly used for the continuous conveying of various bulk materials, including food processing, pharmaceuticals, powders and energy materials, petrochemicals, mining and minerals, feed processing, and plastics.
Specification
| Model | Diameter | Power | Hopper volume | Angle(Degree) |
| ESC-133 | 133mm | 0.75-4KW | 200L or customized | 30°-60° |
| ESC-159 | 159mm | 0.75-4KW | 200L or customized | 30°-60° |
| ESC-219 | 219mm | 1.5-4KW | 200L or customized | 30°-60° |
| ESC-273 | 273mm | 2.2-4KW | 200L or customized | 30°-60° |
| Please consult us for more models | ||||
