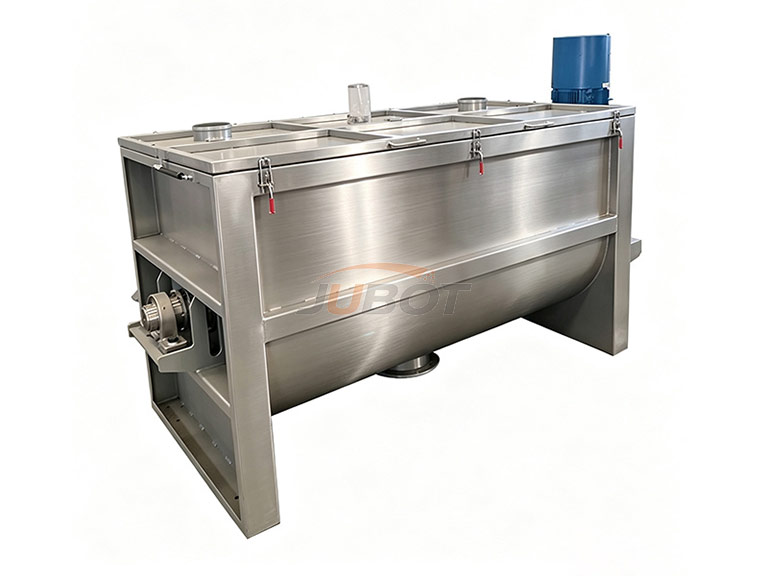

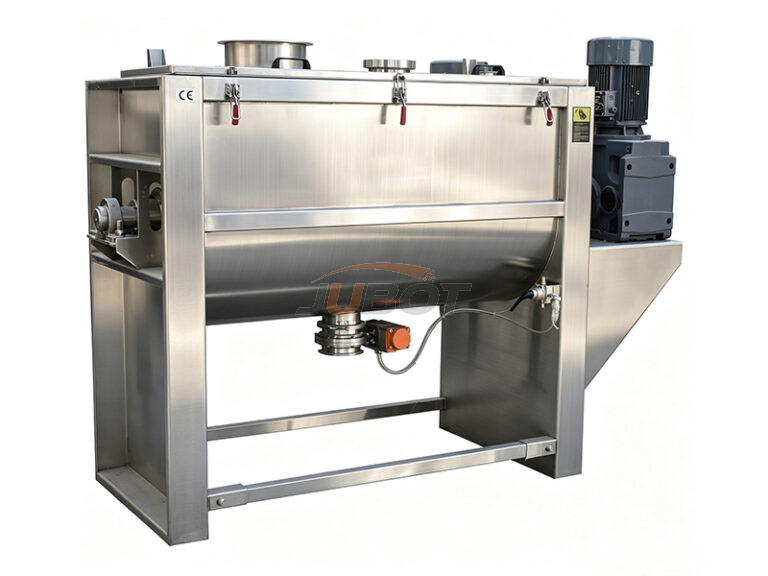

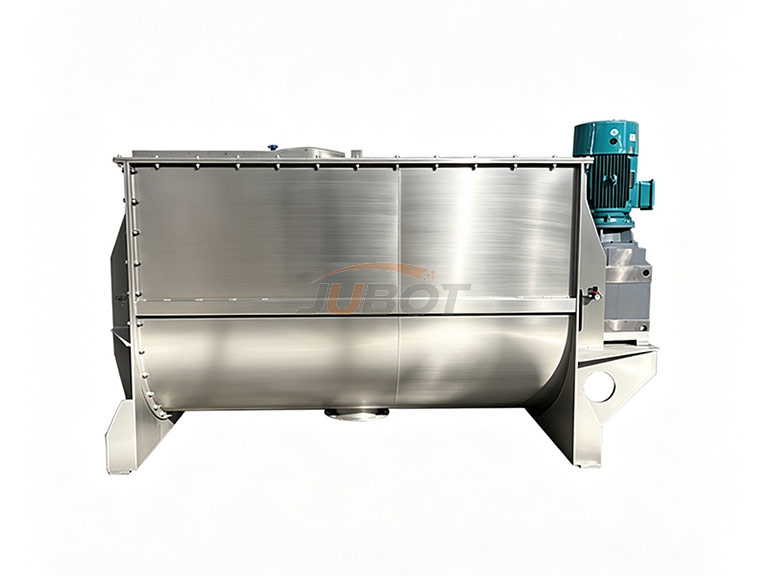

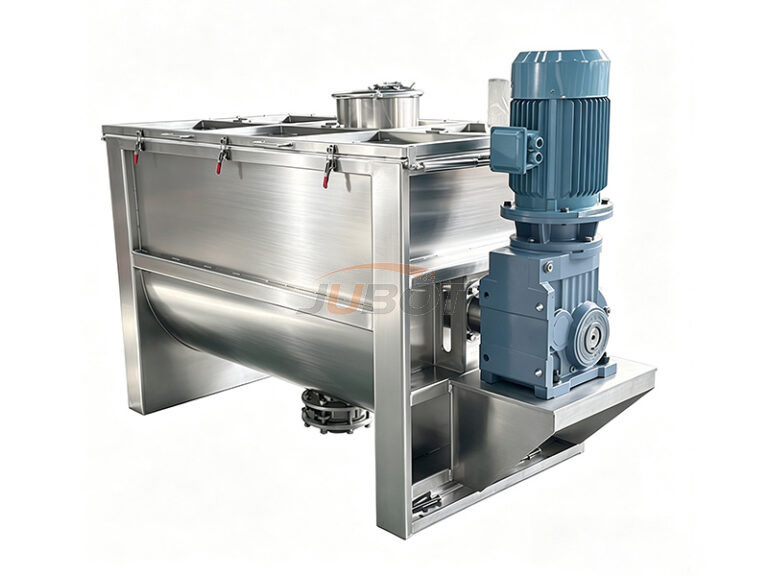

Product Overview

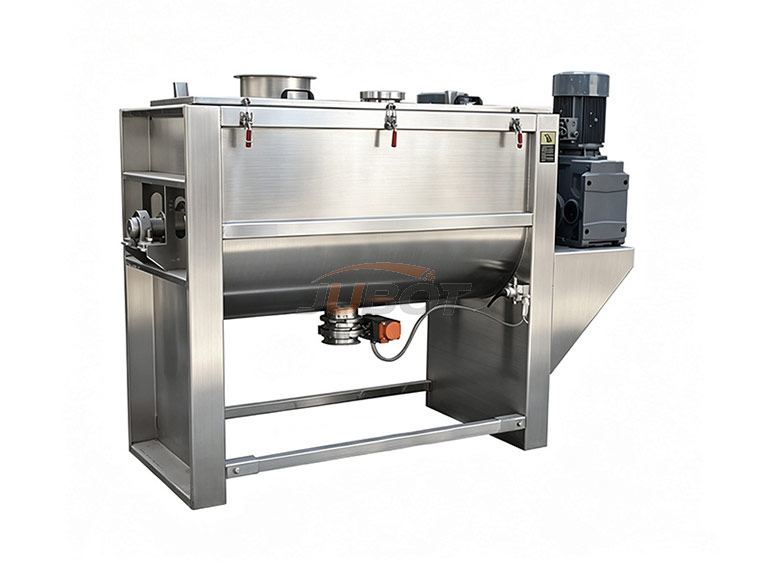

The ribbon mixer is a high-efficiency horizontal mixing machine, mainly used for the uniform mixing of powder materials, granular materials, and some viscous materials. The main structure consists of a horizontal U-shaped chamber, rotating shaft, and inner and outer ribbons. Through the special ribbon design, materials form continuous circulation inside the chamber, achieving fast and uniform mixing.
Working Principle

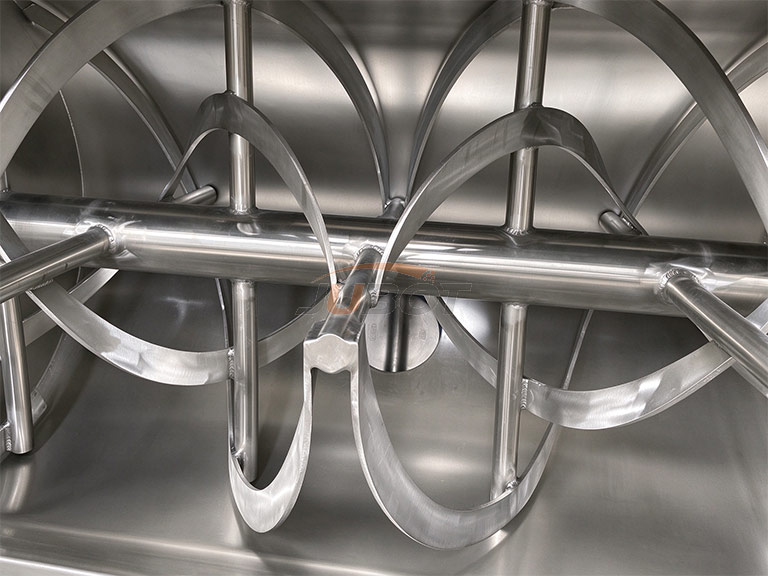

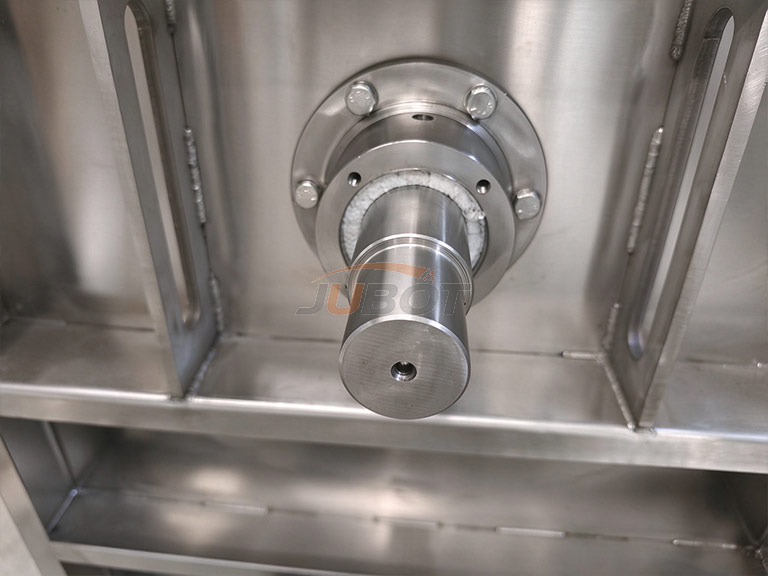

The ribbon mixer consists of a U-shaped chamber, ribbon mixing blades, and transmission components. The mixing shaft is usually equipped with double-layer ribbons. After the machine starts, the outer ribbon pushes materials from both ends toward the center, while the inner ribbon moves materials from the center toward both sides.
During this process, the materials undergo axial circulation, vertical tumbling, radial diffusion, and shearing movement. Through continuous circulation and convection mixing, different materials quickly achieve a highly uniform mixing state. After mixing is completed, the materials can be discharged quickly through the bottom outlet valve, reducing material residue.
Features and Advantages
With a multi-ribbon structure, the ribbon mixer can efficiently blend materials and ensure excellent mixing uniformity.
The ribbon mixer is a multifunctional mixing machine featuring stable performance, reliable quality, smooth operation, and low operating noise.
Operators can adjust the mixing speed and mixing time according to different material characteristics and production requirements.
Additional functions such as liquid spraying, heating, and cooling systems can be added according to customer requirements, expanding its application range.

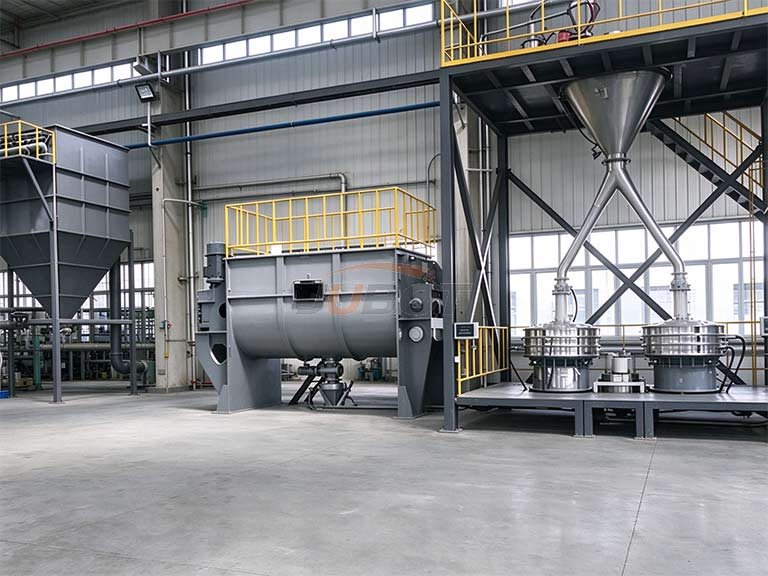

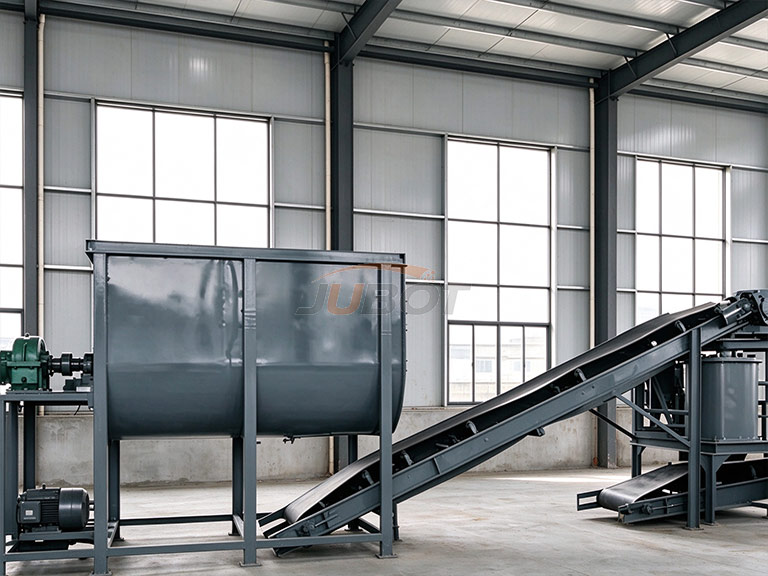

Applications
The ribbon mixer is widely used in industries such as food, chemical, pharmaceutical, feed, new energy, building materials, and plastics. It is suitable for medium and large-scale batch mixing operations of various materials.
Specification
| Model | Motor power（Kw) | Reducer | Speed ratio | Size(mm) | |
| 100L | 2.2 | 90 | 40 | 1225*434*988 | |
| 200L | 2.2 | GKA57 | 30.28 | 1283*564*1171 | |
| 300L | 4 | GKAB67 | 30.21 | 1340*680*1439 | |
| 400L | 5.5 | GKAB77 | 30.93 | 1566*820*1681 | |
| 500L | 5.5 | GKAB77 | 30.93 | 1836*820*1681 | |
| 750L | 7.5 | GKAB87 | 36.52 | 1930*980*2105 | |
| 1000L | 11 | GKAB97 | 41.87 | 2250*880*2447 | |
| 1250L | 11 | GKAB97 | 41.87 | 2250*1000*2207 | |
| 1500L | 11 | GKAB97 | 42.33 | 2250*1100*2304 | |
| 2000L | 15 | GKAB107 | 42.33 | 2909*1100*1766 | Without legs |
| 2500L | 18.5 | GKAB107 | 42.33 | 2909*1200*1766 | Without legs |
| 3000L | 22 | GKAB127 | 47.82 | 2909*1400*2324 | Without legs |
| 4000L | 22 | GKAB127 | 47.82 | 3282*1400*2185 | Without legs |
| 5000L | 30 | GKAB127 | 52.96 | 3400*1500*2515 | Without legs |
| 6000L | 37 | GKAB127 | 54.07 | 3961*1500*2150 | Without legs |
| 8000L | 45 | GKAB157 | 61.02 | 4415*1720*2324 | Without legs |
| 10000L | 55 | GKAB167 | 68.08 | 4905*1860*2393 | Without legs |
| 20000L | 90 | H313HH | 90 | 6550*2400*3810 | Without legs |
