Product Overview

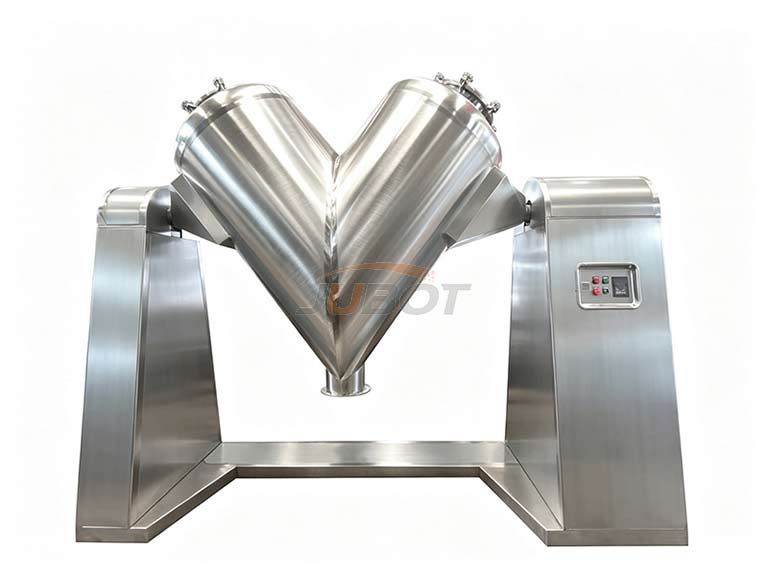

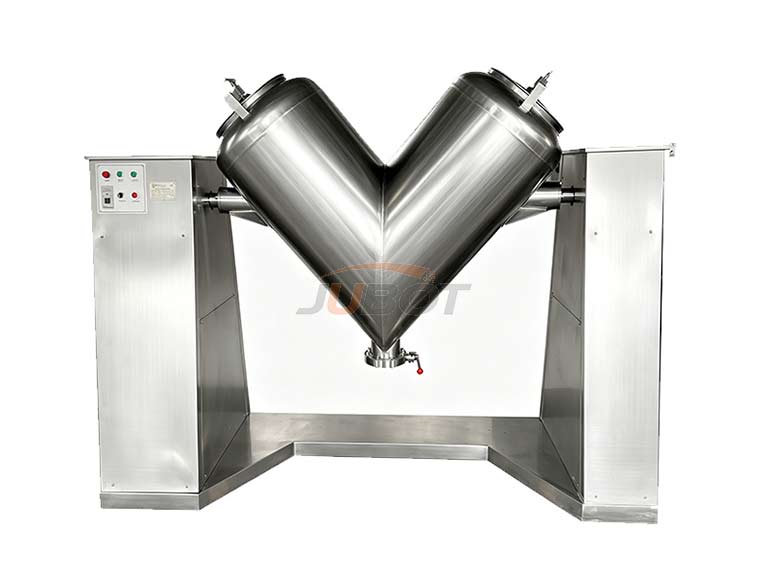

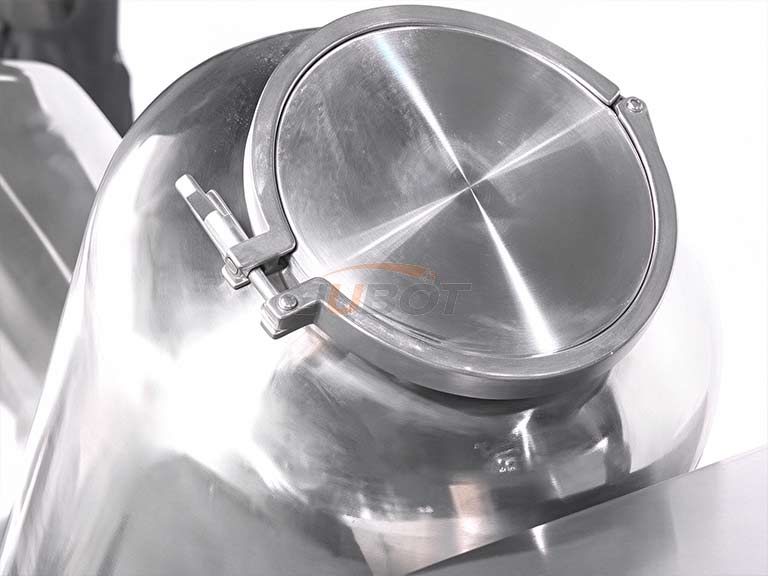

The V-type mixer, also known as a high-efficiency asymmetric mixer, consists of a V-shaped mixing chamber as the main body. Through rotary movement, the materials inside the chamber are continuously lifted, separated, and blended to achieve uniform mixing. It is mainly used for mixing powder and granular materials in industries such as chemical, food, pharmaceutical, and other fields.
Working Principle
The V-type mixer is equipped with a motor and reducer on one side. The motor power is transmitted to the reducer through a belt, and then transferred to the V-shaped chamber through a coupling. The V-shaped chamber rotates continuously, causing the materials inside to move up and down, left and right. Through repeated cycles of separation and mixing, the materials achieve a highly uniform mixing effect.
Features and Advantages
The unique V-shaped chamber design allows materials to be fully lifted, dispersed, and exchanged during operation, ensuring excellent mixing performance.
The machine adopts a low-speed rotary mixing method, which produces minimal shear force and avoids damage to the structure of particles, making it suitable for fragile materials.

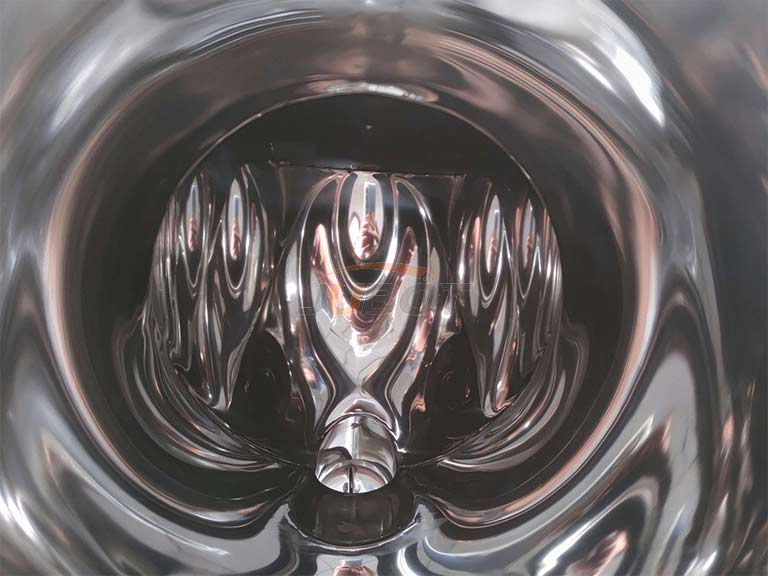

The internal structure is simple with no dead corners, making cleaning and maintenance convenient. It is especially suitable for industries with high hygiene requirements, such as food and pharmaceutical industries.
Additional functions such as spraying systems, heating jackets, and other customized features can be added according to customer requirements, expanding its application possibilities.
Applications
Due to the smooth material flow inside the V-type mixer container, which does not damage the original particle structure, this equipment is particularly suitable for mixing fragile granular materials, as well as fine powders, lumps, and materials with a certain moisture content. It is widely used in the pharmaceutical industry, food industry, chemical industry, new energy sector, research laboratories, and more.
Specification
| Model | V-30 | V-100 | V-200 | V-300 | V-500 | V-1000 | V-1500 | V-2000 | V-3000 |
| Total volume (L) | 10-30 | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 |
| Effective volume (L) | 5-15 | 50 | 100 | 150 | 250 | 500 | 750 | 1000 | 1500 |
| Maximum loading weight (kg) | 5-20 | 40 | 80 | 120 | 200 | 400 | 600 | 800 | 1200 |
| Spindle speed (RPM) | 29 | 1-12 | 1-12 | 1-12 | 1-12 | 1-12 | 1-9 | 1-9 | 1-9 |
| Motor power (kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Input power | 220V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Total turning height (mm) | 1200 | 1500 | 1650 | 1800 | 2100 | 2400 | 2700 | 3000 | 3200 |
| Weight (kg) | 120 | 500 | 600 | 700 | 800 | 1000 | 1150 | 1400 | 2300 |
| Overall dimension (mm) L / w / h | 800* 400* 1200 | 1800* 600* 1500 | 2200* 650* 1700 | 2320* 720* 1800 | 2450* 720* 2000 | 3000* 900* 2300 | 3300* 1200* 2600 | 3800* 1200* 2900 | 4100* 1800* 3100 |
| More sizes can be customized | |||||||||
