Product Overview

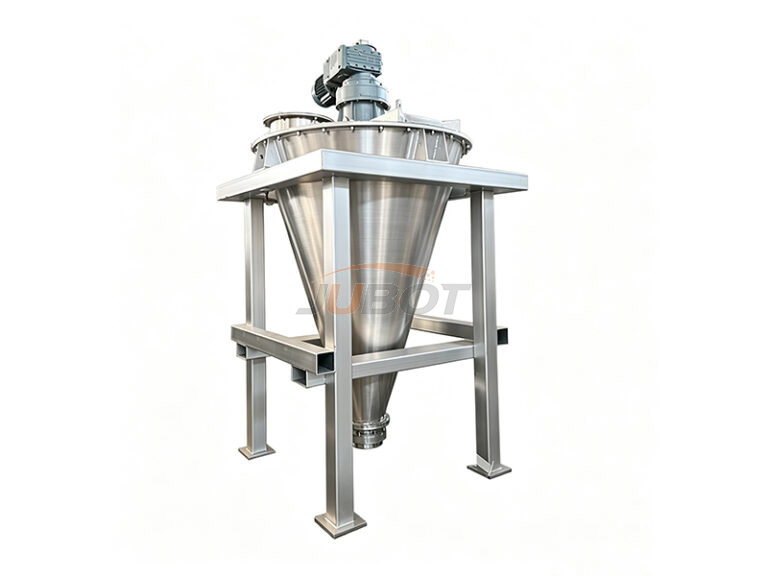

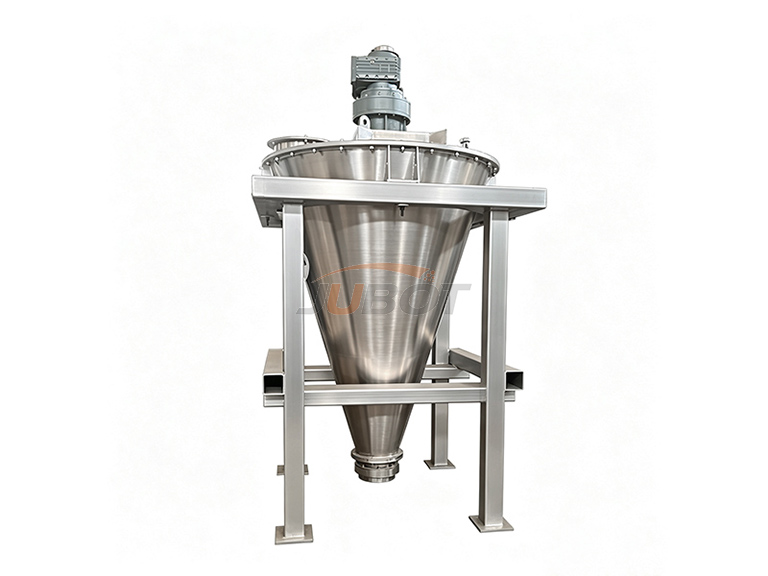

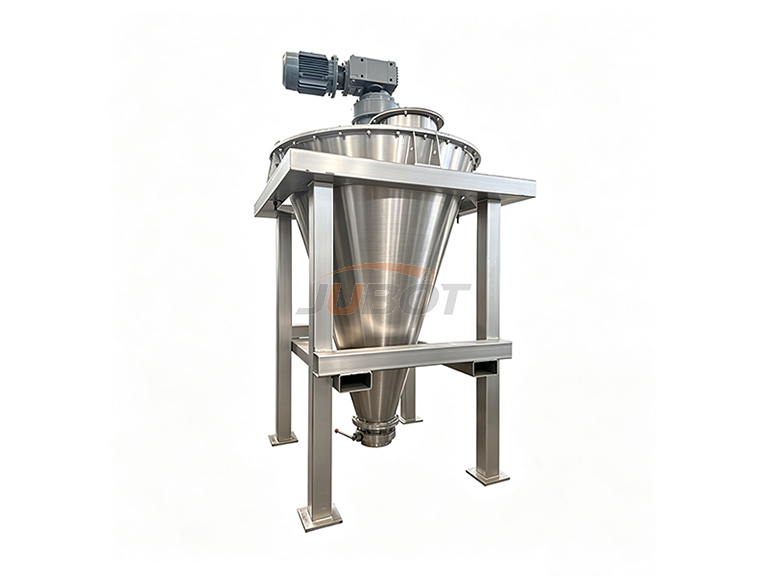

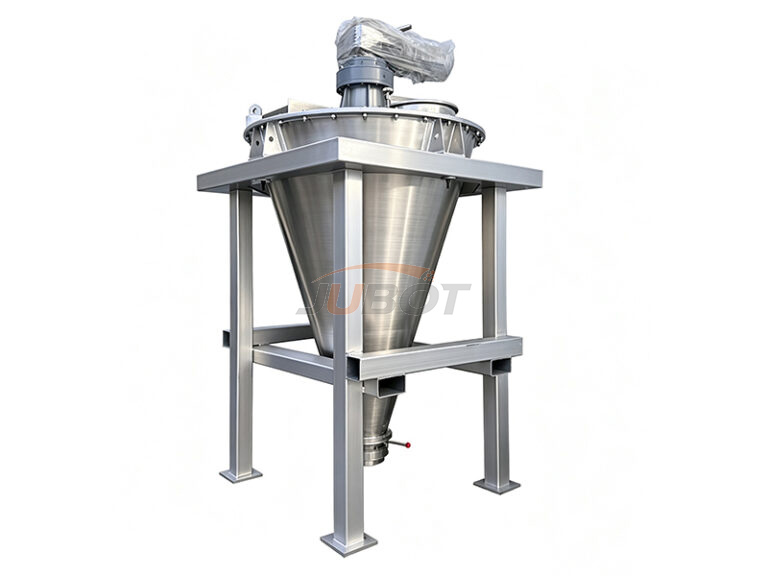

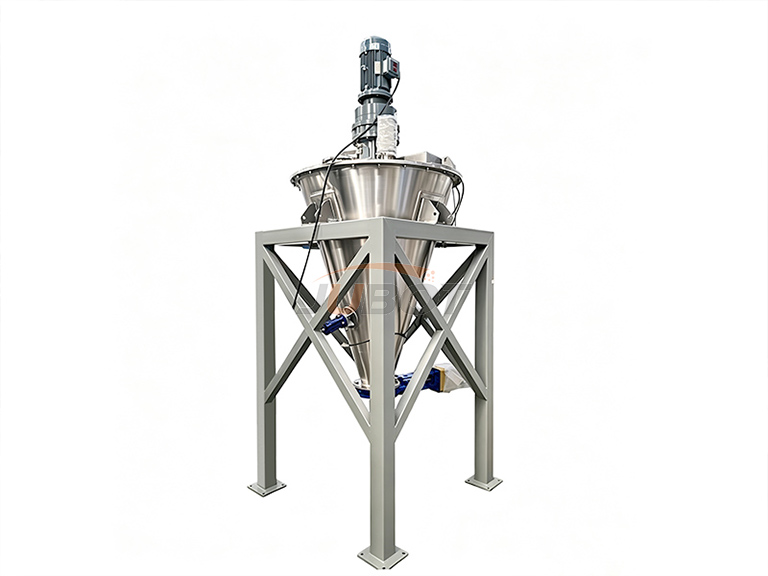

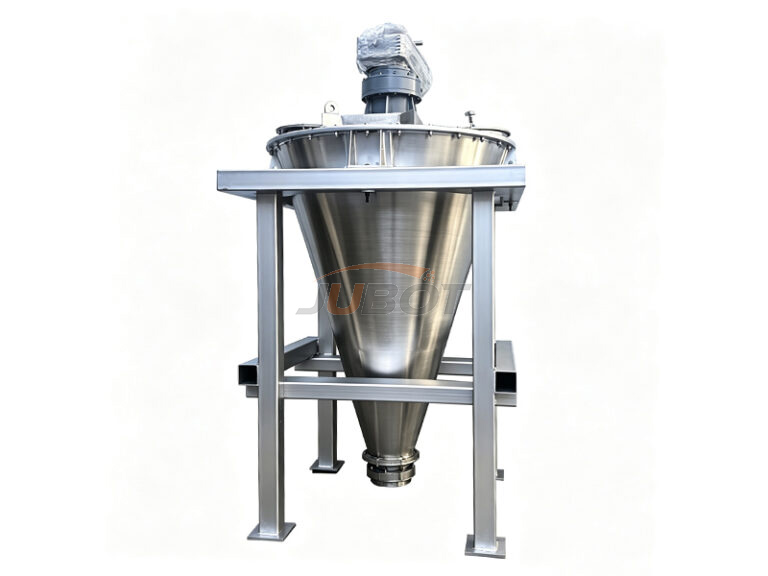

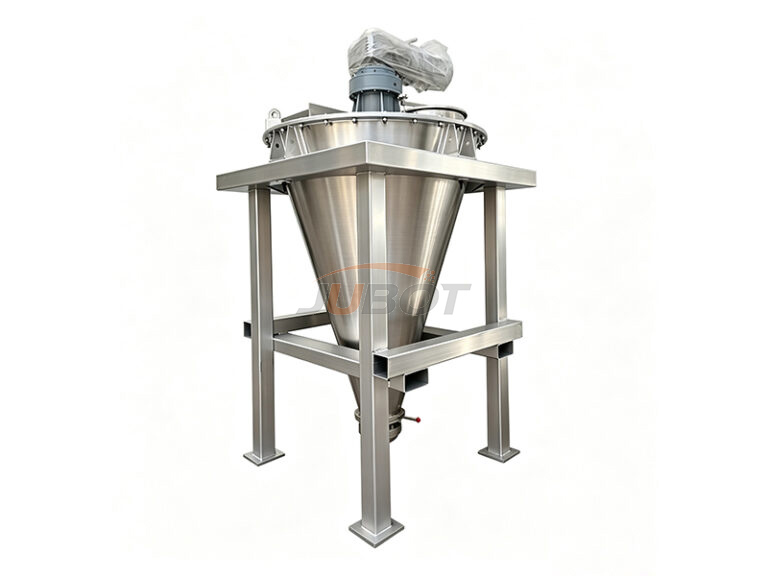

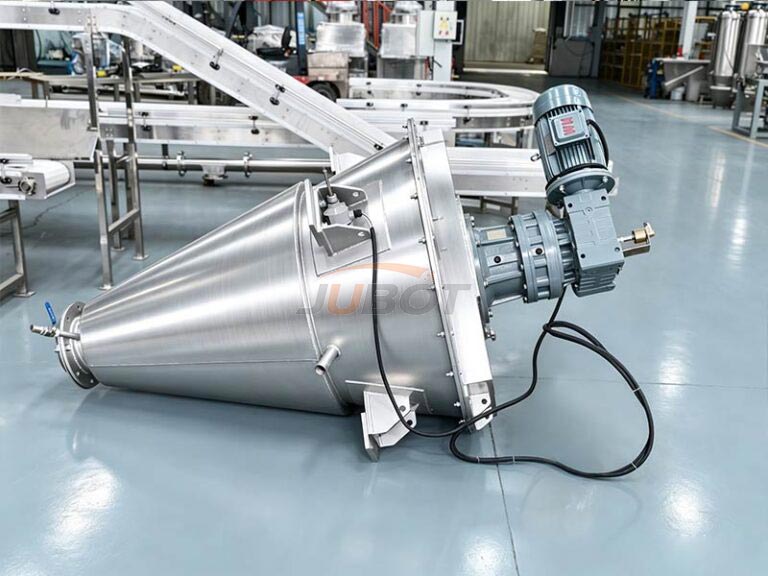

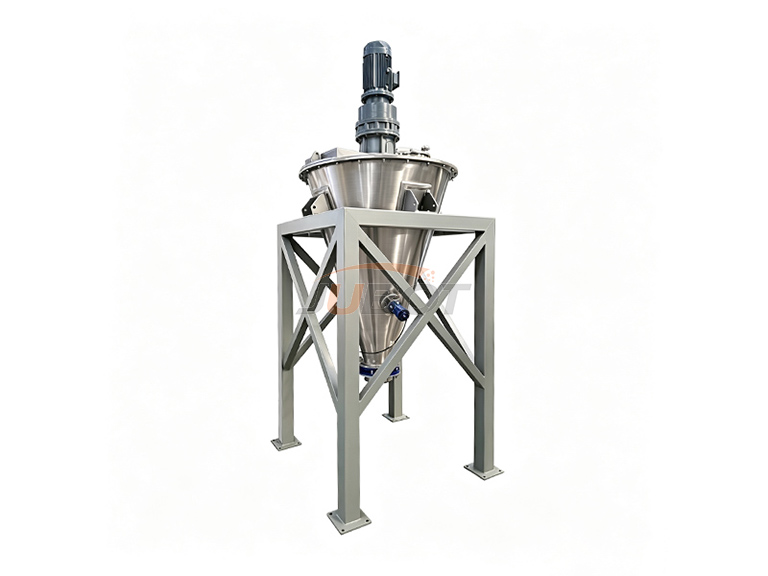

Conical screw mixer is a high-efficiency powder and granule mixing machine. It is named because of its conical mixing chamber and two asymmetric screw agitators installed inside the chamber. Compared with traditional mixers, Double Spiral Cone Mixer adopts a forced convection mixing method, which can effectively handle powder materials with poor flow ability and large density differences, achieving more uniform mixing results.
Working Principle

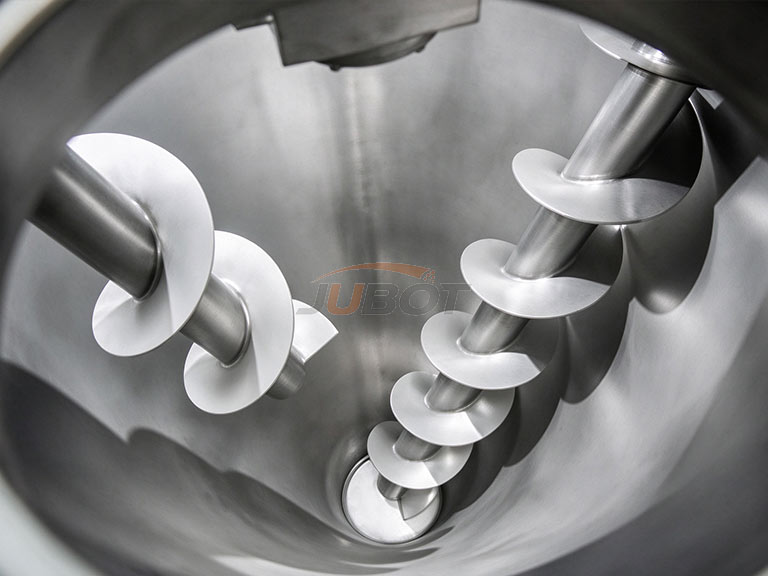

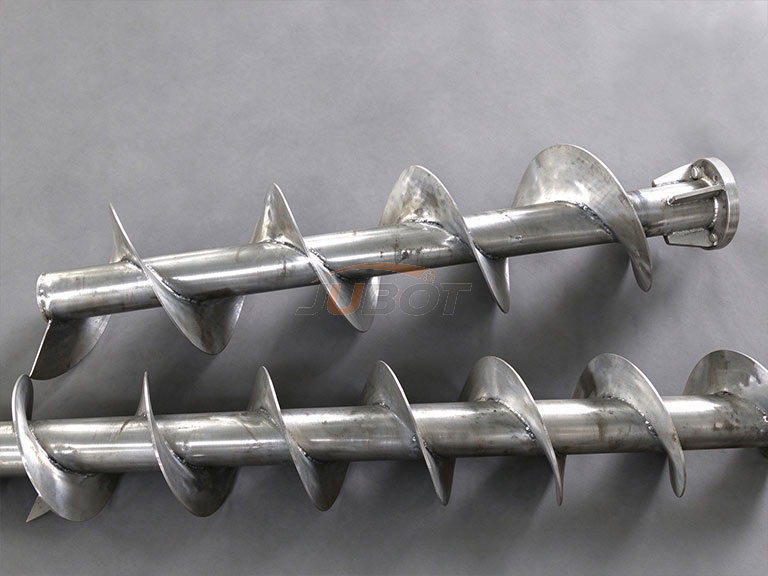

Conical screw mixer mainly achieves mixing through the combined movement of screw rotation and revolution. During operation, the two screw shafts revolve along the inner wall of the conical chamber while the screw blades rotate at a speed. The screws lift the materials from the bottom to the top, creating continuous vertical circulation. Materials from different areas are constantly exchanged and dispersed, finally achieving a highly uniform mixing effect.
Features and Advantages
The double spiral lifting structure creates both vertical circulation and radial diffusion motion, ensuring thorough and complete mixing of materials.

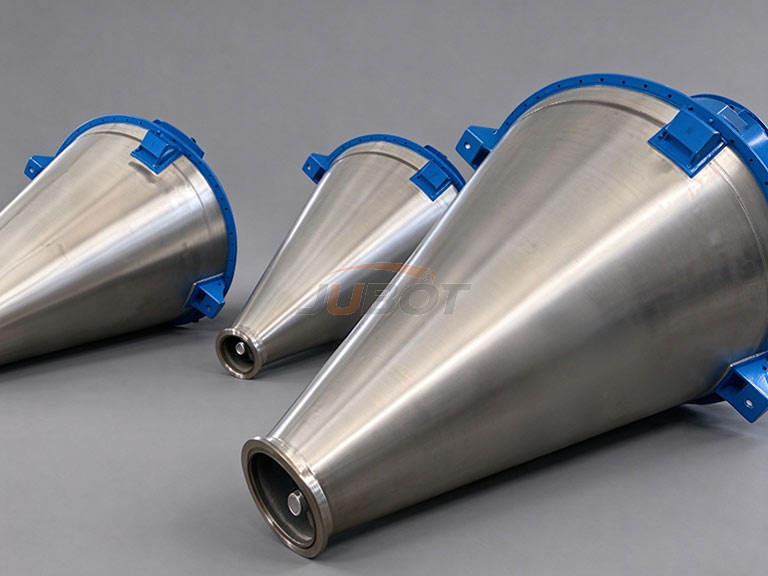

The conical design combined with bottom discharge allows materials to be fully emptied, reducing residual material and facilitating easy cleaning.
The fully enclosed operation design effectively minimizes dust generation and improves the working environment.
Suitable for various materials, including powder-powder blending, powder-granule blending, and mixing with small amounts of liquid addition.
Applications

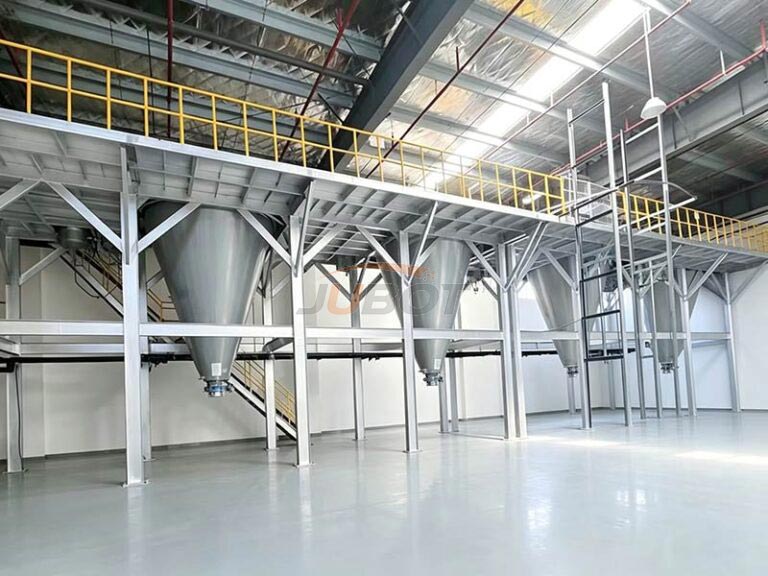

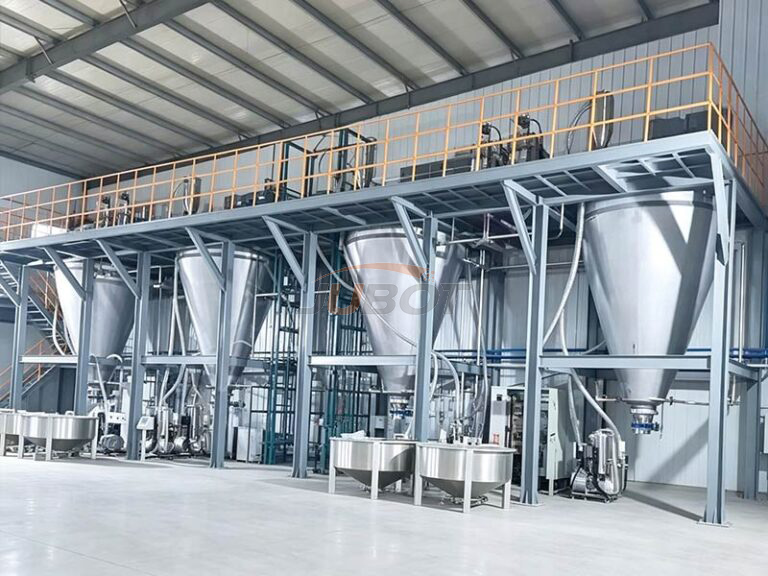

Conical screw mixer is widely used in industries with high requirements for mixing uniformity, such as the food industry, pharmaceutical industry, chemical industry, new energy industry, and agricultural industry. It is suitable for blending powders, granules, small-proportion additives, and materials with significant density differences.
Specification
| Model | VBDS-180 | VBDS-300 | VBDS-500 | VBDS-1000 | VBDS-2000 | VBDS-3000 |
| Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 7.5 | 11 |
| Capacity (kg/batch) | 40 | 60 | 100 | 200 | 400 | 600 |
| Total volume(m³) | 0.18 | 0.3 | 0.5 | 1 | 2 | 3 |
| Mixing time(min) | 4~8 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 |
| Speed(r/min) | 12 | 12 | 12 | 10 | 10 | 8 |
