Product Overview

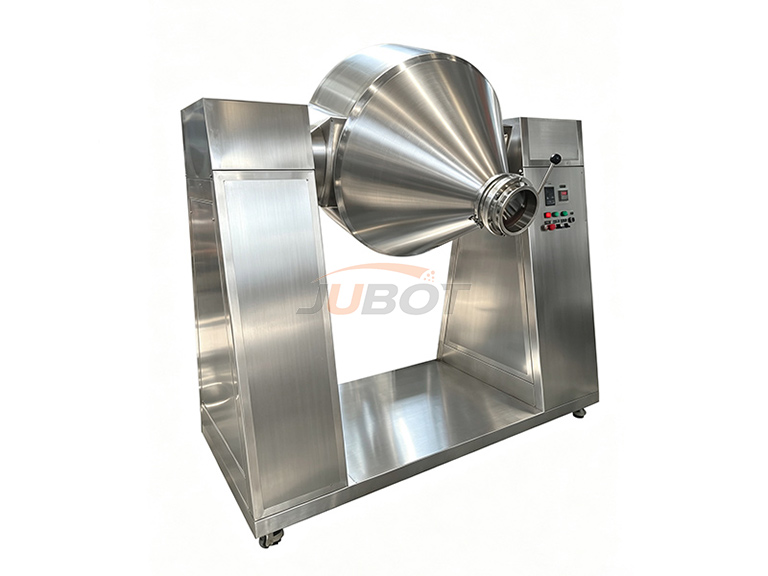

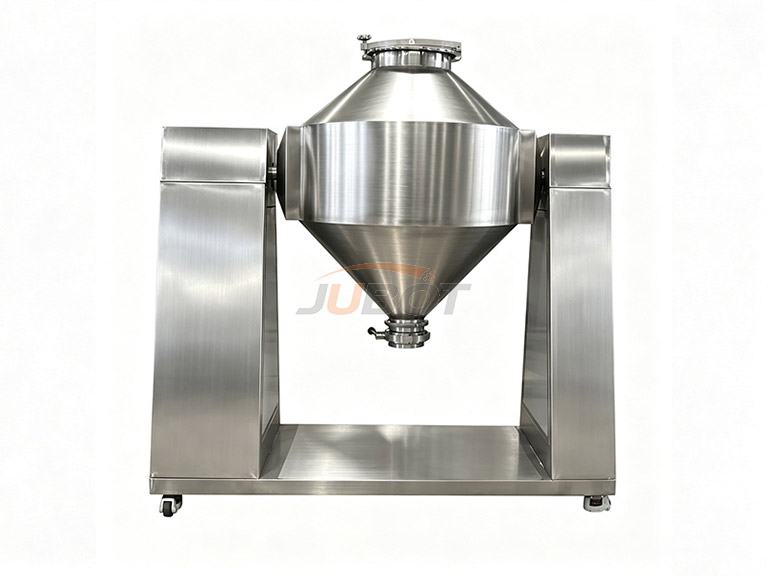

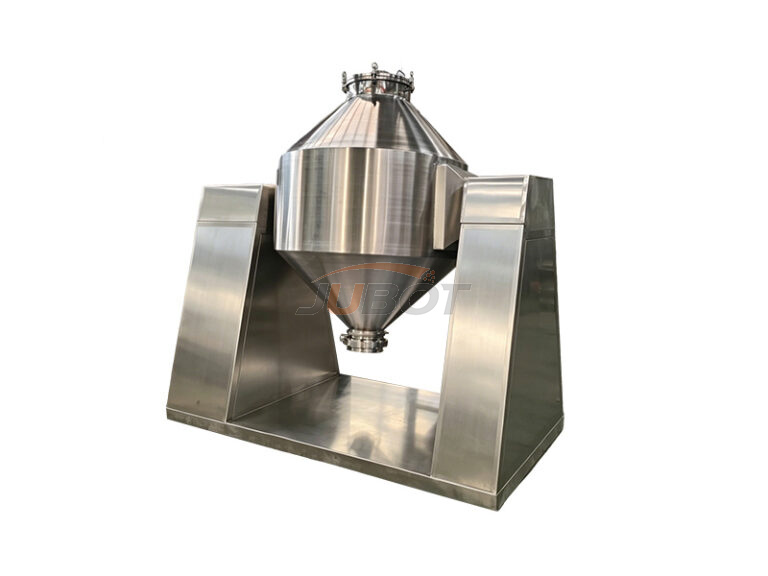

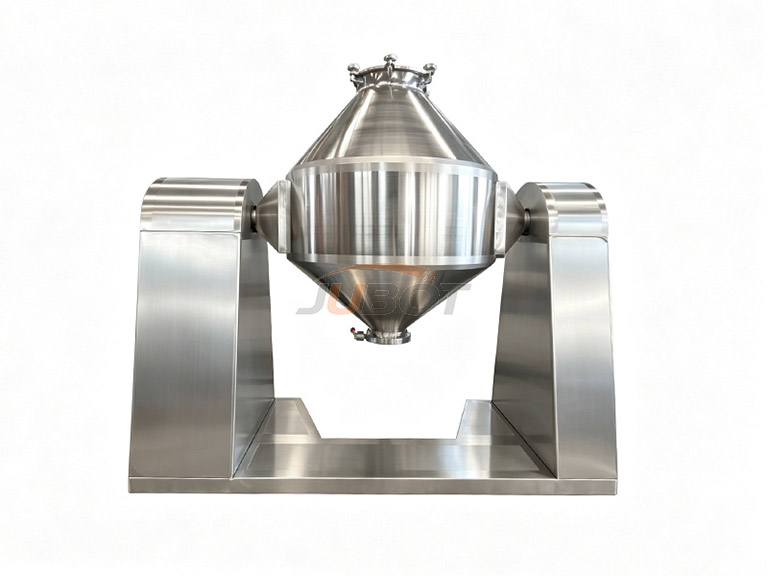

The double cone mixer is an efficient and gentle mixing machine designed for powder and granular materials. It is named after its double-cone-shaped mixing vessel. The machine is mainly driven by a reducer that rotates the double-cone mixing drum, causing the materials inside to continuously tumble, disperse, intermix, and recombine, thereby achieving a uniform mixing effect.
Working Principle
The double cone mixer is driven by a motor and reducer, which rotate the double cone chamber at a low speed. During operation, the materials are lifted to a certain height as the chamber rotates and then slide downward under the force of gravity. Materials from different positions continuously exchange and diffuse with each other. After repeated circulation and movement, the materials achieve a uniform mixing effect.
Features and Advantages
The unique double cone structure allows materials to be fully turned over and mixed, making it suitable for the uniform blending of various powder and granular materials.
The machine adopts a low-speed rotary mixing method. Since there are no high-speed stirring blades inside the chamber, it generates low shear force and helps maintain the original shape and properties of particles.
The gentle mixing process of the double cone mixer can effectively reduce the separation phenomenon of materials with different densities after mixing, ensuring better product consistency.
The double cone mixer can be designed with different specifications according to production requirements, ranging from small-scale models to large industrial machines, meeting various production needs.
Applications
The double cone mixer is widely used in industries that require high uniformity mixing, such as the food, pharmaceutical , chemical , new energy , and agrochemical industry.
Specification
| Model | W-300 | W-500 | W-1000 | W-1500 | W-2500 | W-4000 | W-6000 | W-8000 |
| Production capacity (kg/time) | 150 | 250 | 500 | 750 | 1250 | 2000 | 3000 | 4000 |
| Full volume (cubic meter) | 0.3 | 0.5 | 1 | 1.5 | 2.5 | 4 | 6 | 8 |
| Mixing time (min) | 4-8 | 4-8 | 6-12 | 6-12 | 6-12 | 6-15 | 6-15 | 6-15 |
| Motor power(KW) | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
| Cylinder speed (RPM) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 10 |
| Dimension(L*W*H) | 1680*650*1600 | 2080*750*1900 | 2150*850*2100 | 2300*1600*3100 | 2500*1000*2450 | 2980*1580*2800 | 3500*1800*3000 | 3980*2000*3200 |
| Weight (kg) | 310 | 550 | 800 | 950 | 1650 | 1880 | 2350 | 2680 |
