Product Overview

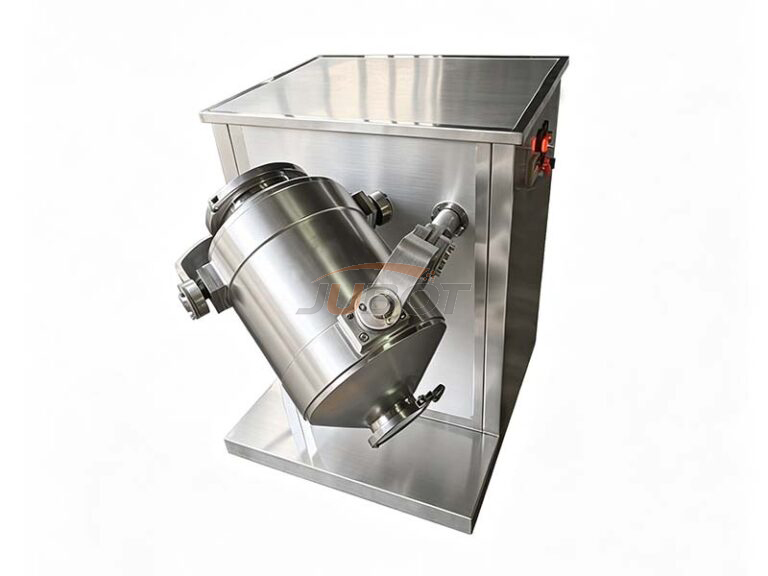

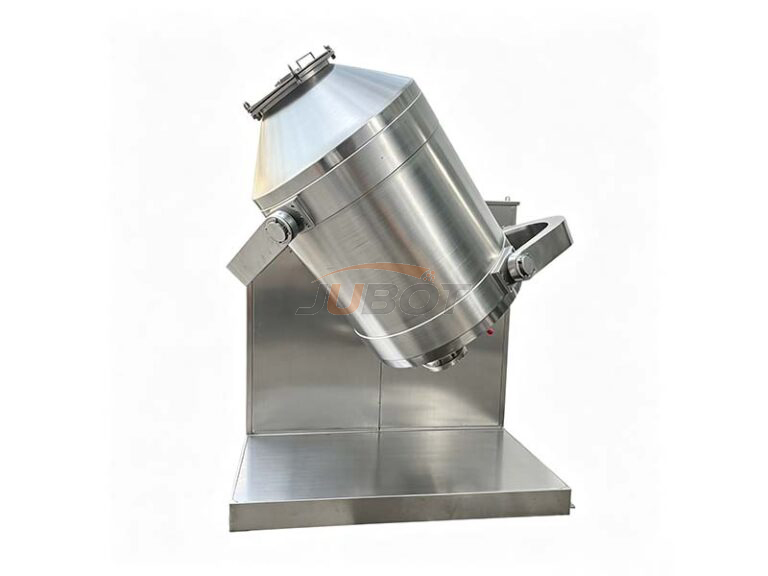

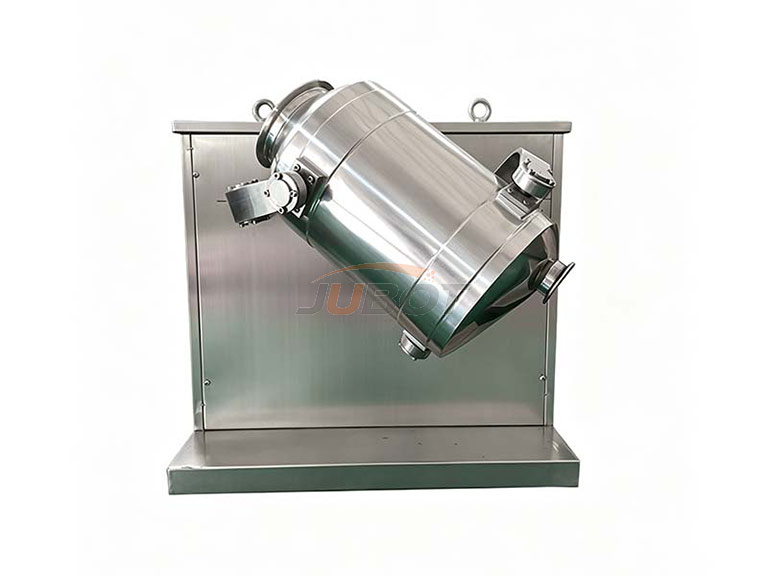

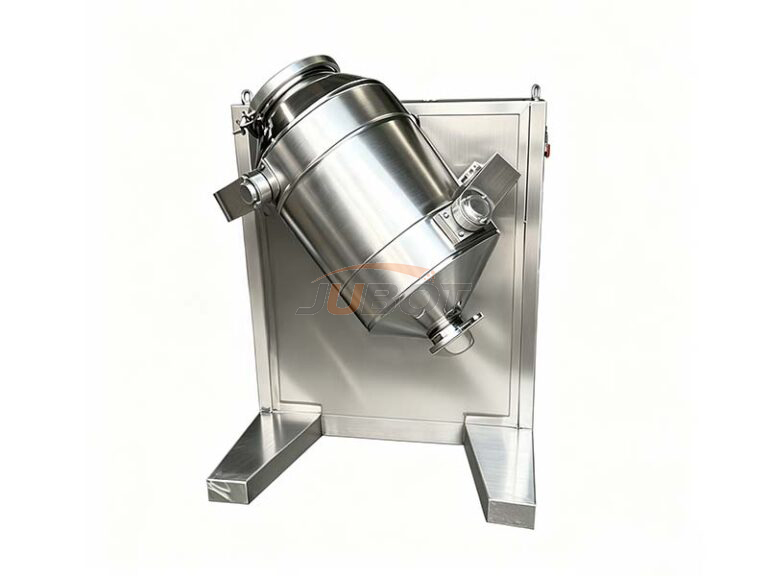

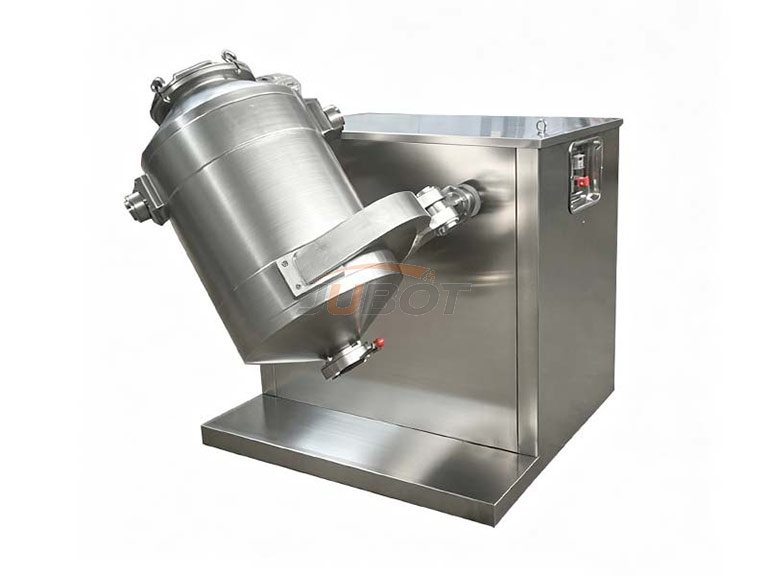

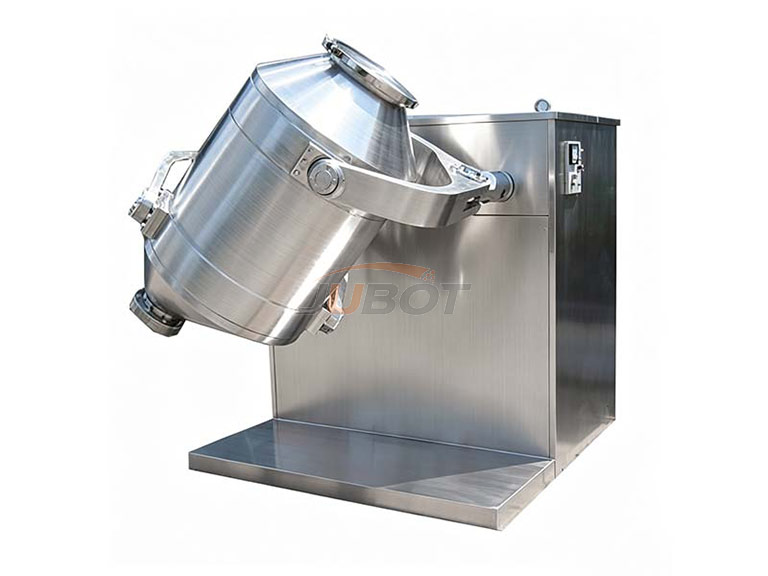

The 3D Mixer is a high-efficiency powder mixing machine that uses a three-dimensional movement system to achieve uniform material blending. Unlike traditional V-type mixers and double cone mixers, the 3D mixer not only rotates during operation but also performs combined movements in the vertical, horizontal, and front-back directions, creating a more complex and effective mixing trajectory.
Working Principle

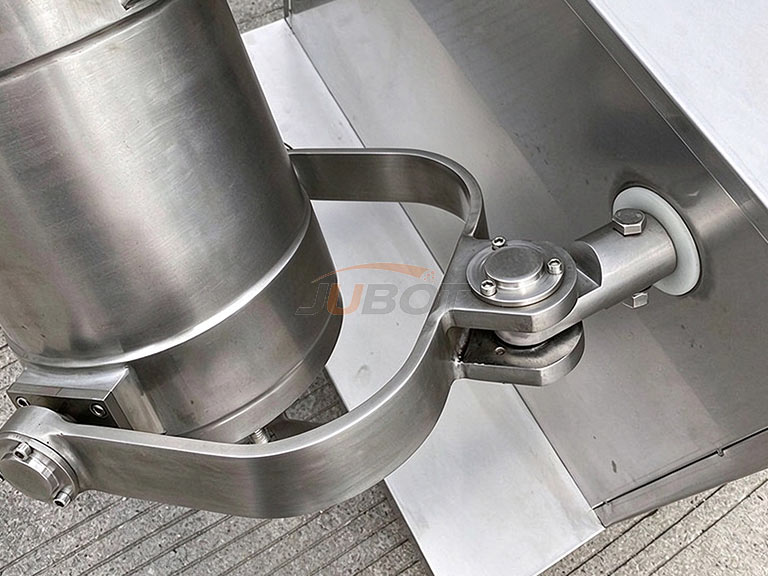

The 3D mixer is driven by a motor-powered three-dimensional movement mechanism, which makes the mixing chamber perform complex spatial movements. During operation, the mixing drum rotates, swings, and tilts simultaneously. The materials inside the chamber continuously tumble and exchange positions in different directions. Through multi-directional diffusion and convection between particles, the materials achieve a highly uniform mixing effect after continuous movement.
Features and Advantages
The three-dimensional motion pattern enables thorough material diffusion, delivering better mixing results than conventional single-direction rotation equipment.
No high-speed mixing blades inside, minimizing the risk of particle structure damage. Ideal for fragile or easily broken materials.
Simple internal structure, available in stainless steel construction, meeting the hygiene requirements of the food and pharmaceutical industries.
Applications
The 3D mixer is mainly used for mixing powder and granular materials that require high mixing uniformity. It is widely applied in the pharmaceutical industry, food industry, chemical industry, new energy industry, as well as small-batch mixing applications in research laboratories.
Specification
| Model | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-800 | SYH-10 00 | SYH-12 00 | SYH-15 00 | SYH-20 00 |
| Total volume(L) | 50 | 100 | 200 | 400 | 800 | 1000 | 1200 | 1500 | 2000 |
| Effective volume(L) | 45 | 90 | 180 | 360 | 720 | 900 | 1080 | 1350 | 1800 |
| Maximum loading weight (kg) | 15-27 | 30-54 | 50-108 | 100-216 | 200-432 | 250-540 | 366-648 | 400-810 | 500-1080 |
| Spindle speed (r/min) | 0-20 | 0-20 | 0-15 | 0-15 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| Motor power(kw) | 1.1 | 1.5 | 2.5 | 4 | 7.5 | 11 | 11 | 15 | 18.5 |
| Overall dimension (mm) | 1150* 1400* 1000 | 1250* 1800* 1550 | 1450* 2000* 1550 | 1650* 2200* 1550 | 2100* 2650* 2000 | 2150* 2800* 2100 | 2000* 3000* 2260 | 2300 *3200* 2500 | 2500* 3500* 2800 |
| Weight(kg) | 300 | 800 | 1200 | 1200 | 1700 | 1800 | 2000 | 2400 | 3000 |
| More sizes can be customized | |||||||||
