Product Overview

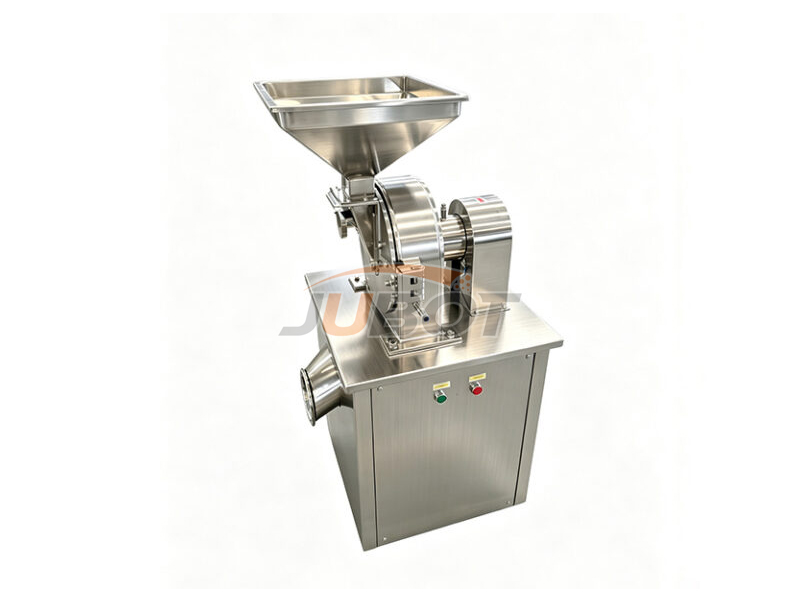

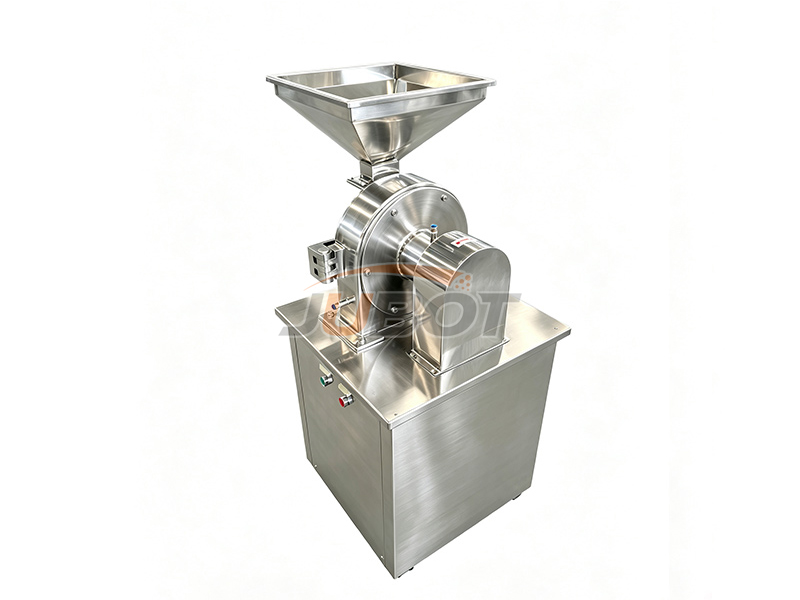

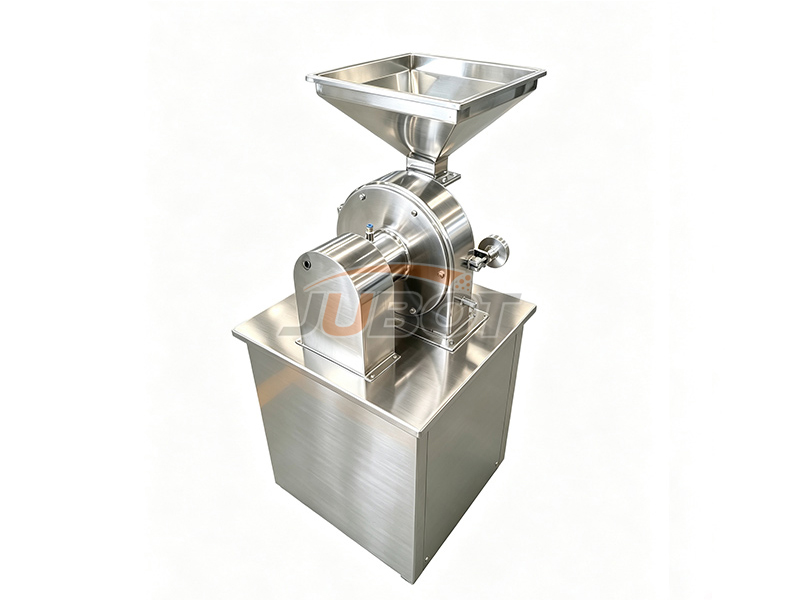

Universal pulverizer is a highly efficient crushing machine, mainly used to grind various dry materials into powders with the required fineness. The equipment uses high-speed rotating blades or hammer blades to generate strong shearing, impact, and grinding forces, enabling rapid material pulverization.
Working Principle

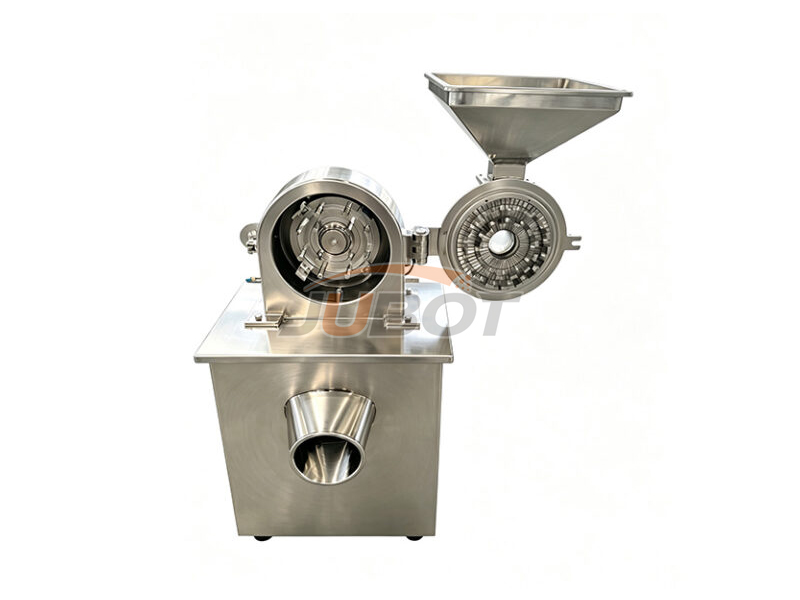

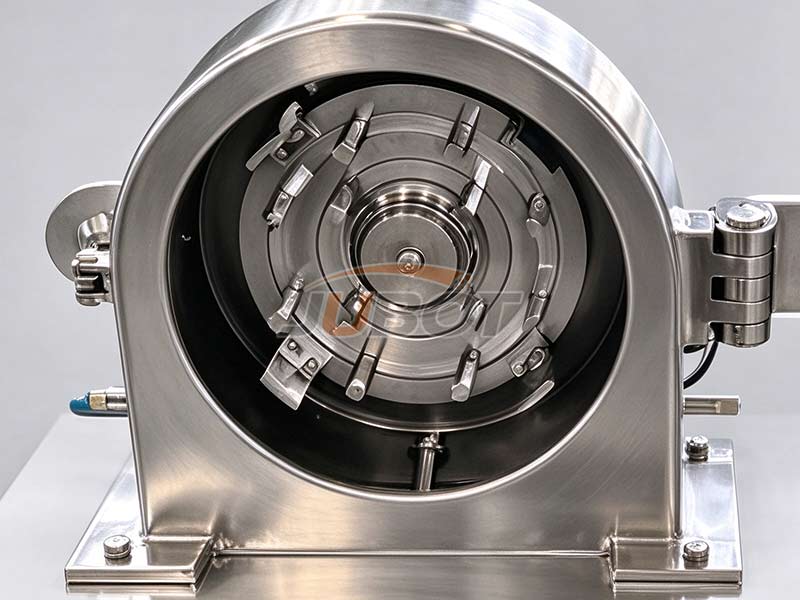

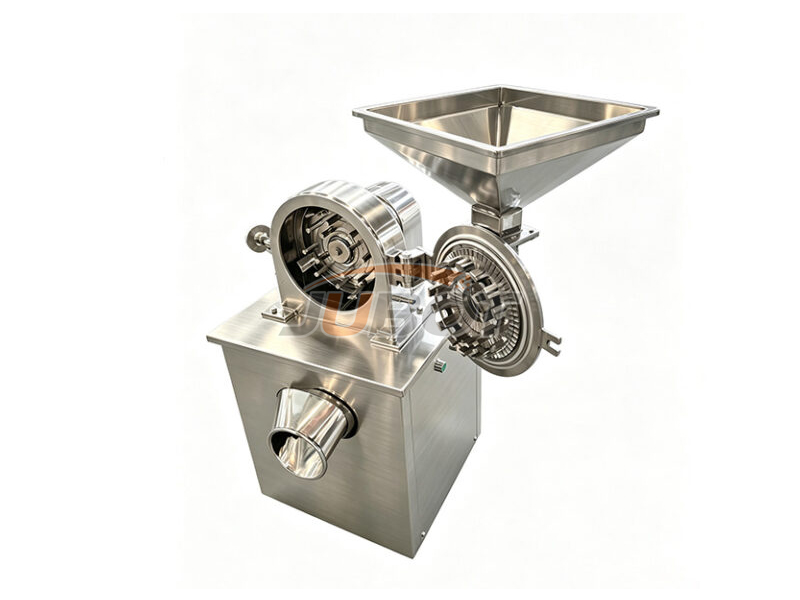

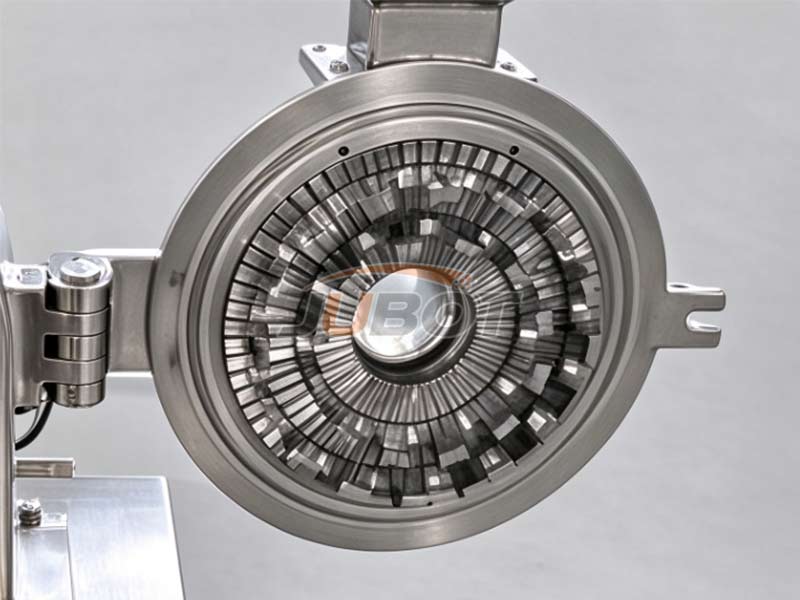

The universal pulverizer mainly completes the crushing process through the impact and shearing action between high-speed rotating blades and the fixed toothed ring. During operation, materials enter the crushing chamber through the feed inlet, where the high-speed rotating blades impact and cut the materials. The materials are continuously circulated and crushed inside the crushing chamber, and after reaching the required particle size, they are discharged through the screen.
Advantages
With high rotational speed and strong crushing capacity, it can quickly process large quantities of materials.
Suitable for various industries including food, pharmaceuticals, chemicals, feed, and more.

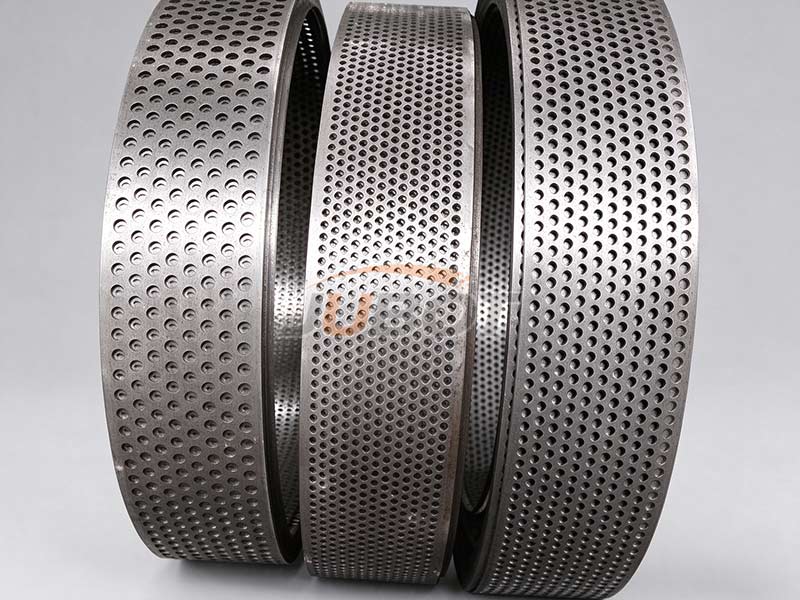

Particle size can be controlled by changing screens of different mesh sizes to meet various production requirements. Constructed of stainless steel with a smooth interior for easy cleaning, meeting food and pharmaceutical industry standards.
Straightforward design, easy installation, and low maintenance cost.
Application
This machine is mainly used for weakly conductive and high-temperature resistant substances, such as those in the chemical industry, medicine (Chinese medicine and medicinal herbs), food, spices, resin powder, and powder coating.
Specification
| Model | 20B | 30B | 40B | 60B |
| Output(kg/h) | 20-150 | 100-300 | 160-800 | 500-1500 |
| Input material sizes(mm) | 6 | 10 | 12 | 15 |
| Output fineness(mesh) | 60-150 | 60-120 | 60-150 | 60-150 |
| Motor power(kw) | 4 | 5.5 | 7.5 | 18.5 |
| Main rotating speed(rmp) | 4500 | 3800 | 3400 | 2800 |
| Dimension(mm) | 550*600*1250 | 600*700*1450 | 800*900*1550 | 1000*900*1680 |
| Weight(kg) | 250 | 320 | 550 | 850 |
