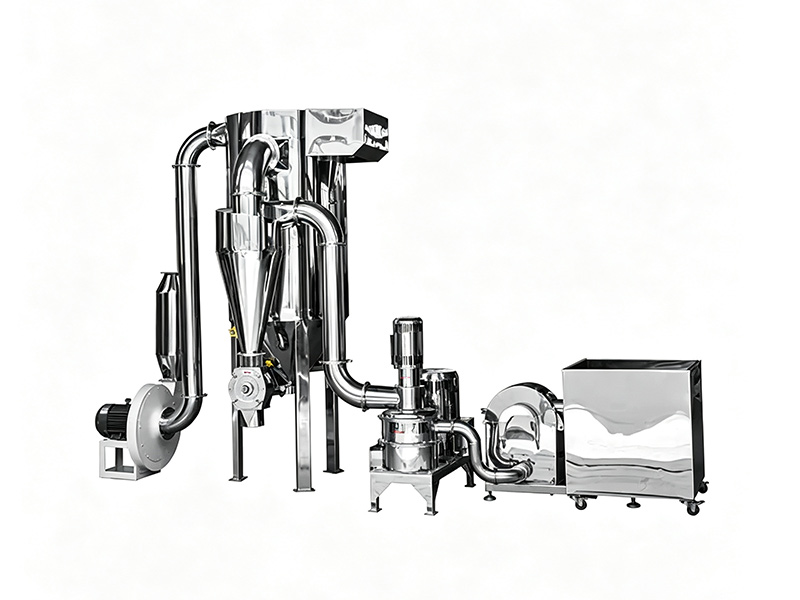

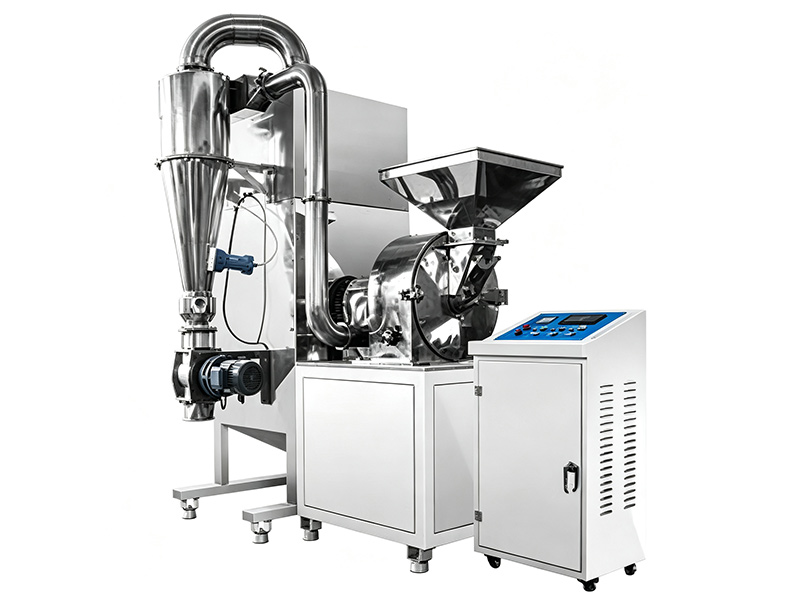

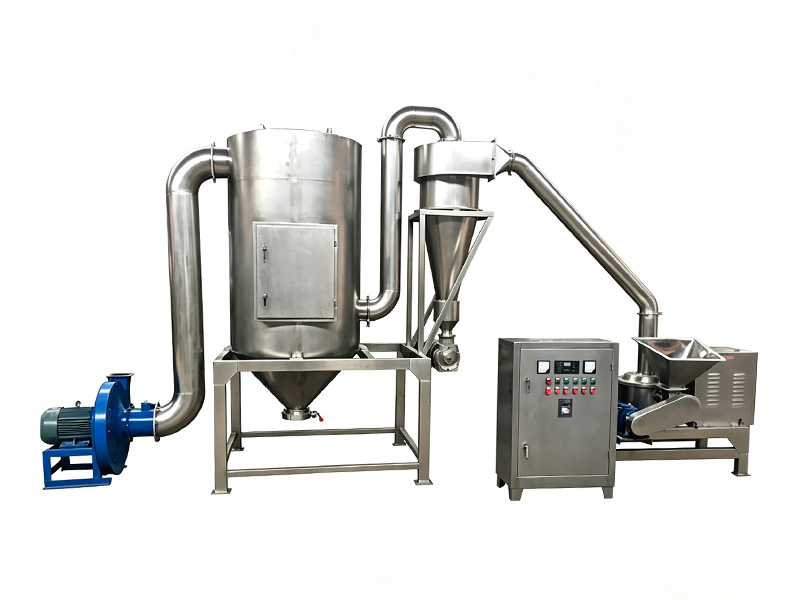

Product Overview
The ultra fine pulverizer is a high-efficiency grinding machine designed for producing ultra fine powder. Through high-speed rotating blades, airflow action, mechanical impact, and shearing forces, the machine can grind materials into micron-level fine powders. Compared with conventional pulverizers, the ultra fine pulverizer provides higher grinding precision and can meet the requirements for ultra fine powder processing in industries such as food, pharmaceuticals, chemicals, and new materials.
Working Principle
The material enters the grinding chamber through the feeding inlet. Under the strong impact, shearing, and friction forces generated by the high-speed rotating components, the material is rapidly pulverized. Fine powder that reaches the required particle size is discharged through the screen or airflow classification system, while larger particles remain in the grinding chamber for further pulverization until the required fineness is achieved.
Advantages
The grinding fineness can reach 60-300 mesh or even finer, with uniform particle size, making it suitable for high-precision powder processing.
High grinding efficiency with lower energy consumption compared with traditional grinding equipment.
Compact structure, easy disassembly and cleaning, suitable for continuous production.
Application
The ultra fine pulverizer is mainly used in industries that require high powder fineness, uniformity, and purity. It can process materials into finer powders, improving material utilization efficiency and product quality. It is widely applied in the food industry, pharmaceutical and health supplement industry, chemical industry, and feed industry.
Specification
| Model No. | MG15 | MG18 | MG30 | MG60 |
| Capacity | 10-200kg/h | 20-450kg/h | 60-1000kg/h | 800-1500kg/h |
| Feeding mesh requirement | less than 10mesh | less than 12mesh | less than 15mesh | less than 18mesh |
| Final powder mesh | 80-320mesh | 80-450mesh | ||
| Total power | 13.7kw | 22kw | 39kw | 65kw |
| Rotation speed | 4500r/min | 4500r/min | 3200r/min | 3200r/min |
| Machine dimension | 5400*1660*2500mm | 5500*1800*3100mm | 9000*2200*4000mm | 9000*2700*5300mm |
| Remarks | Final output depends on product type or hardness | |||
