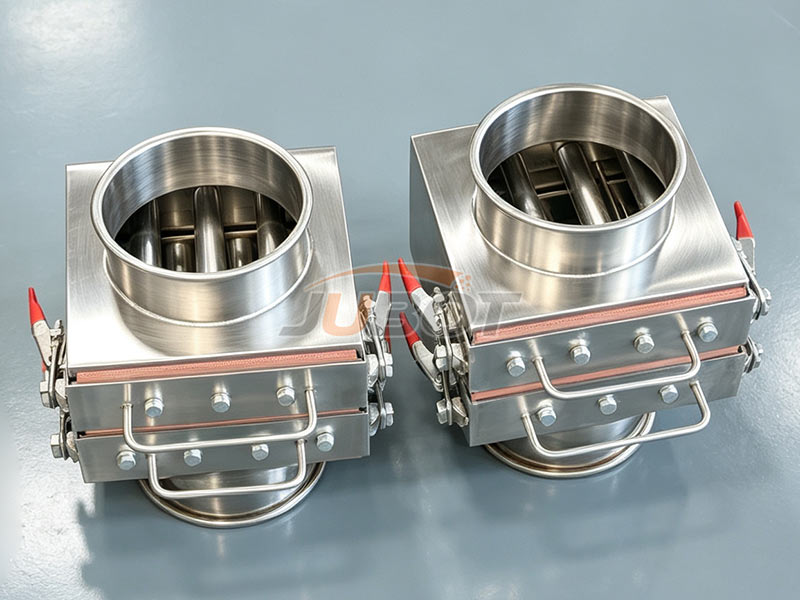

Stainless Steel Drawer-Type Magnetic Separator

Product Overview

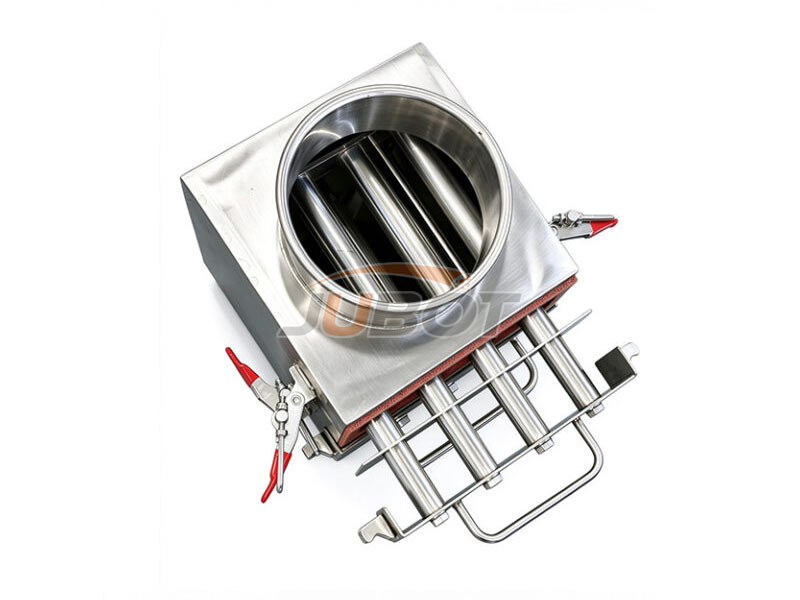

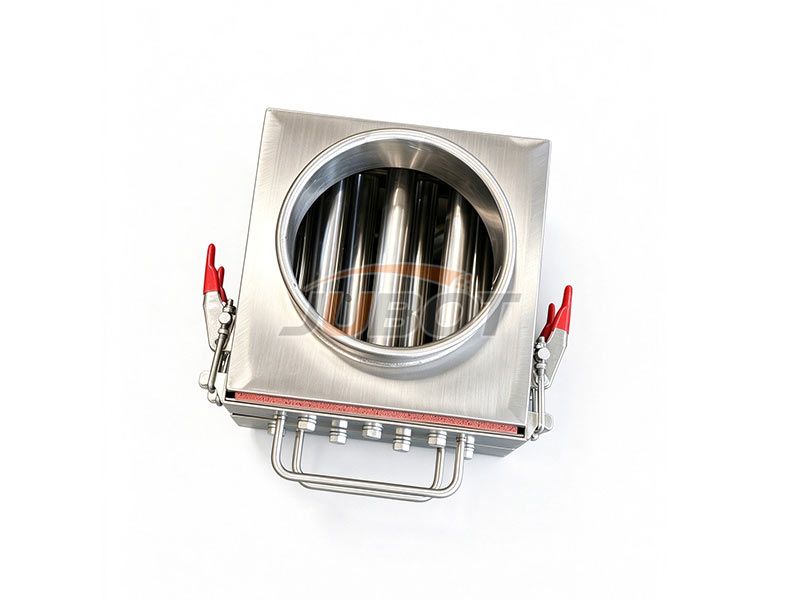

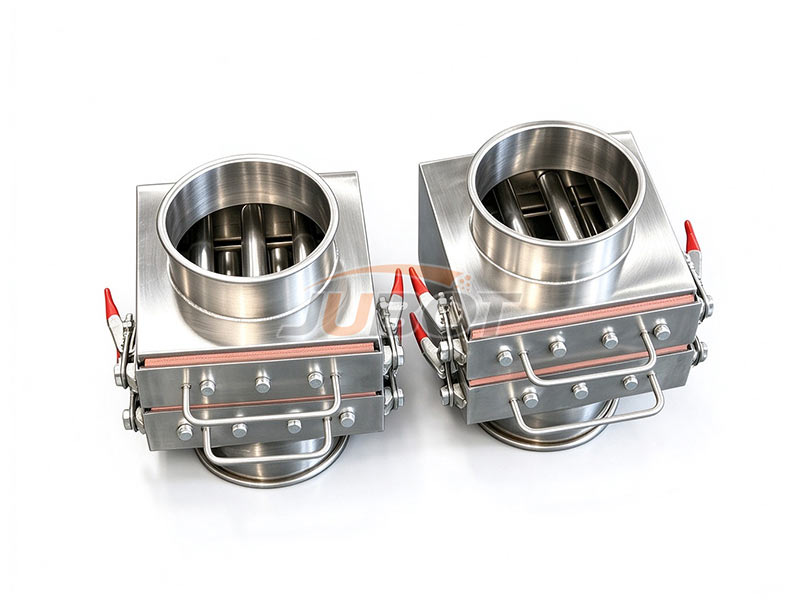

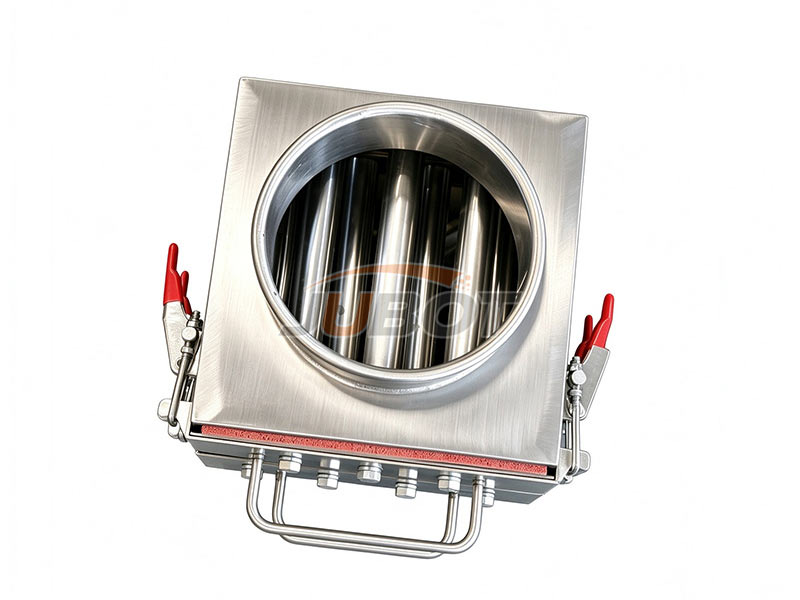

This product is a drawer-type permanent magnetic separation device. It features a stainless steel housing with built-in multi-layer magnetic grids. The magnetic rod assembly can be pulled out via the drawer handle for cleaning of trapped impurities. It is suitable for powder and granular production lines.

Working Principle

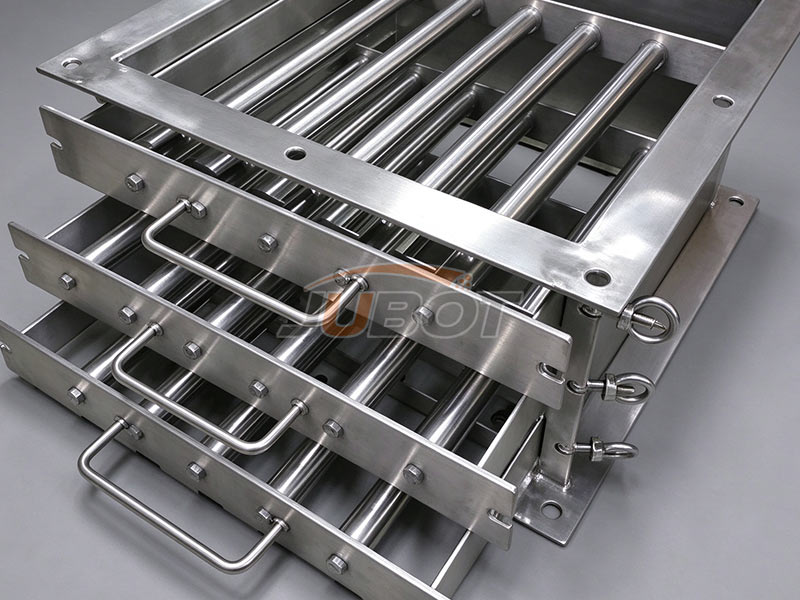

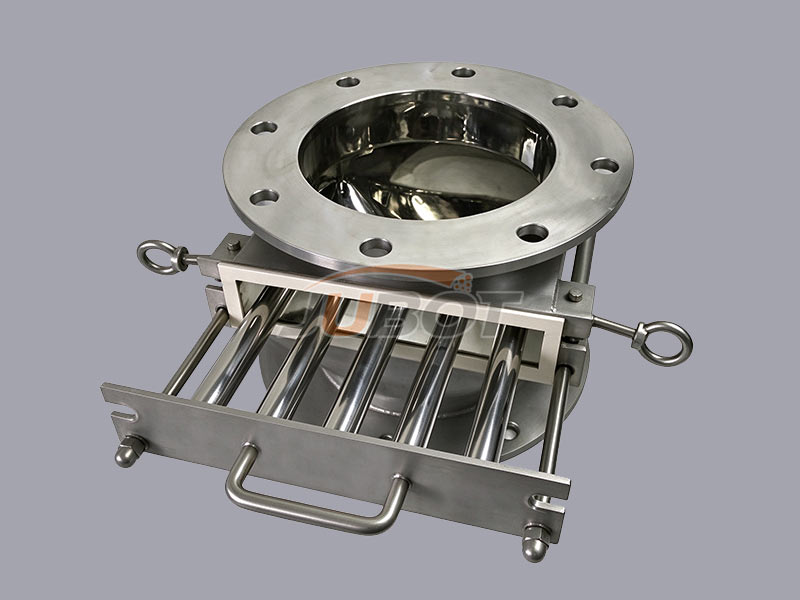

Material flows vertically downward through the housing, passing through the alternately arranged permanent magnetic rods, which attract and capture ferromagnetic impurities. The clean material is discharged from the bottom outlet. For cleaning, the magnetic rod assembly is pulled out, the collected impurities are wiped off, and the assembly is pushed back into position to resume operation.

Advantages

1. Standard magnetic intensity up to 12,000 Gauss.
2. Easy cleaning, drawer-type design eliminates the need for pipeline disassembly, saving maintenance time and effort.
3. Hygienic and durable, constructed of SS304/SS316, corrosion-resistant, and compliant with food and pharmaceutical standards.
4. Customized, magnetic intensity, dimensions, and connection interfaces can be tailored to specific requirements.

Application

Widely used for ferrous impurity removal from dry materials in industries such as food (flour, sugar, starch), pharmaceuticals (powders, APIs), chemicals and plastics (resins, pigments), ceramics and mining, and lithium battery materials. The unit can be installed upstream or downstream of equipment such as pipelines, vibrating screens, and feeders.

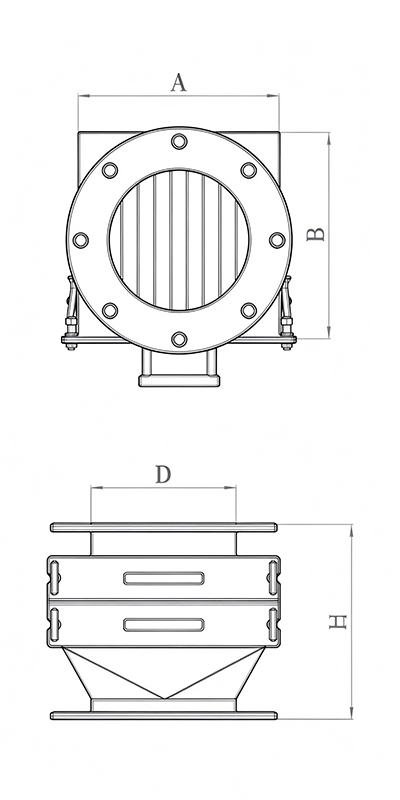

Specification Table
