Product Overview

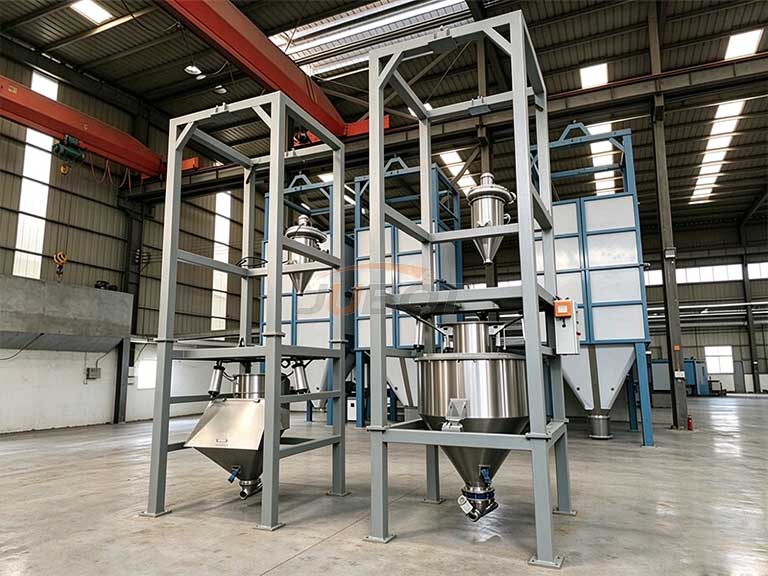

The Open Big Bag Unloading Station is a high-efficiency unloading equipment specially designed for unloading large-sized big bags (FIBC bags). It is mainly used to solve problems such as high labor intensity and low efficiency during traditional manual bag opening, handling, and unloading processes.

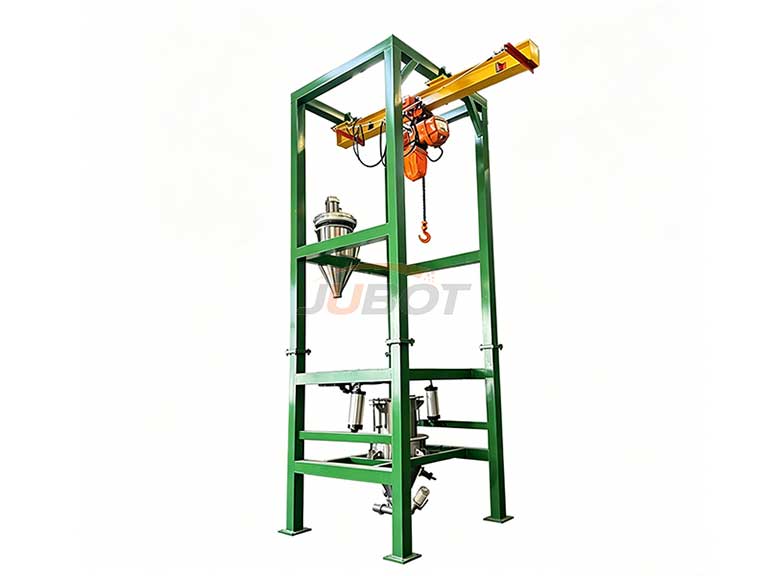

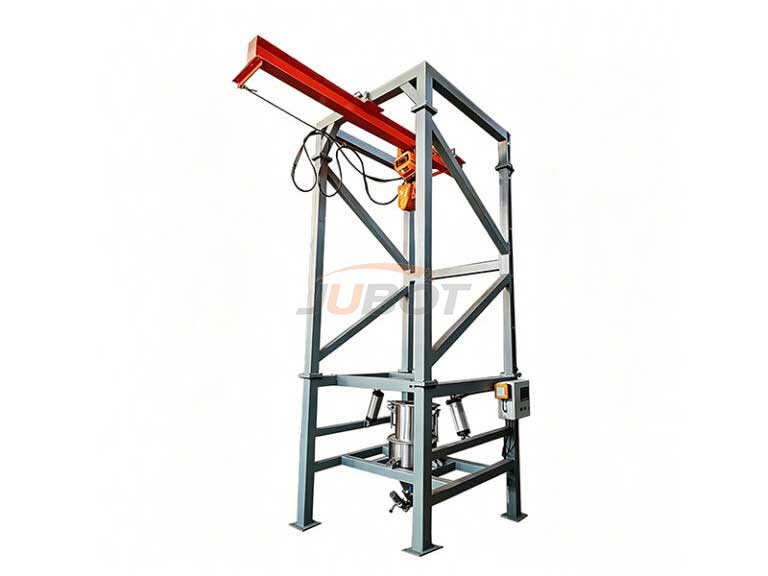

The equipment adopts a frame structure design and is equipped with a big bag lifting device and unloading system. The big bag can be quickly lifted to the unloading position through an electric hoist or lifting device, and continuous and stable unloading can be achieved by opening the discharge outlet of the big bag.

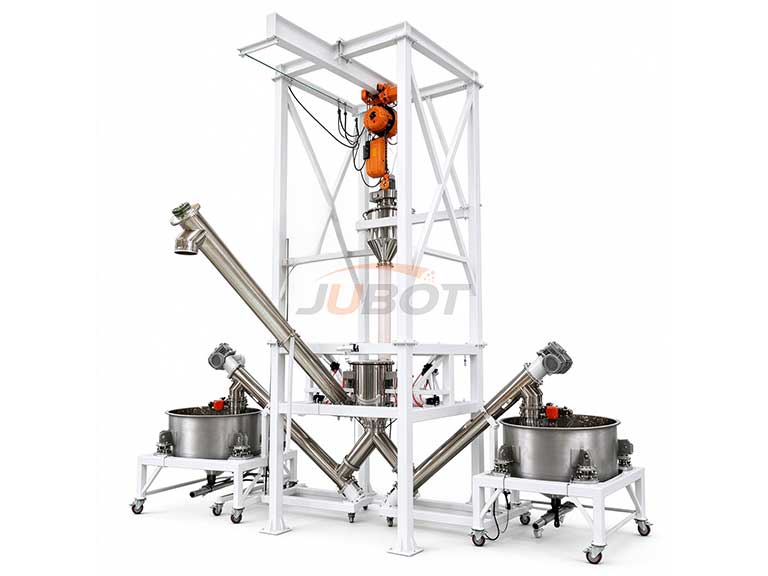

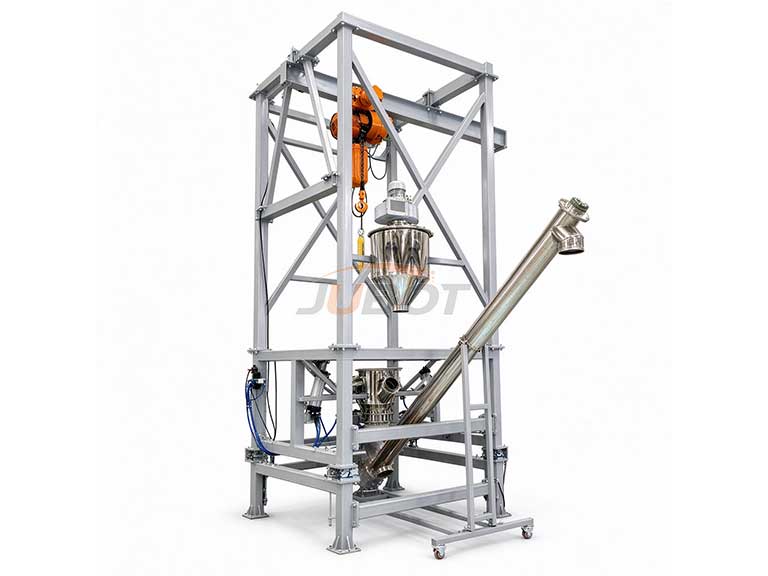

The equipment features a simple structure and convenient operation. According to production requirements, it can be connected with screw conveyors, vacuum loaders, vibrating screens, storage hoppers, and other equipment to achieve efficient transportation of large-package powder and granular materials. It is widely used in modern automated production lines.
Working Principle
During operation, a forklift or lifting equipment is used to move the big bag to the bottom of the unloading station. The lifting device then lifts the big bag and fixes it through clamping device onto the hopper.
The operator opens the discharge outlet at the bottom of the big bag. The material flows into the lower hopper or conveying equipment by gravity and then enters the next production process.
During the unloading process, the material flow rate can be controlled by adjusting the size of the discharge outlet, ensuring stable and uniform unloading.

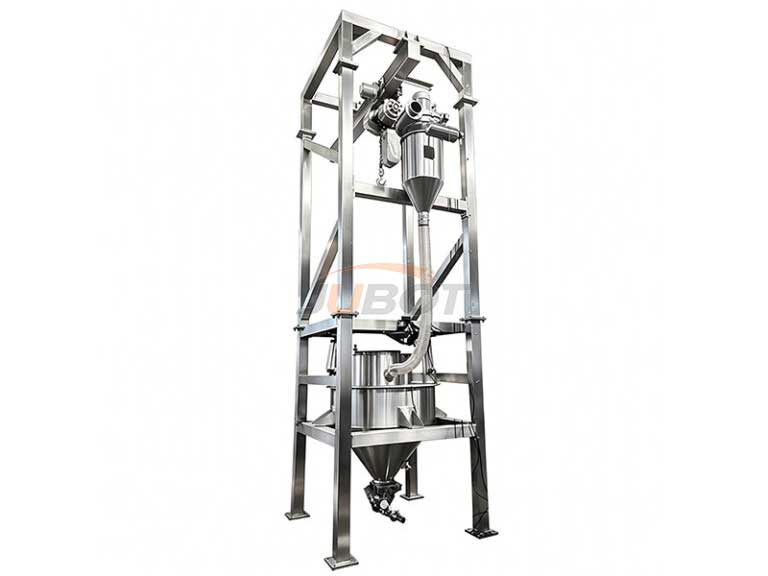

According to different material characteristics, the equipment can be equipped with vibration-assisted flow devices, dust removal systems, or conveying equipment to improve unloading efficiency and reduce problems such as material bridging and blockage.
Features and Advantages
Suitable for big bags with specifications of 500 kg–2000 kg. It reduces manual bag opening, handling, and other operations, greatly lowering labor intensity and improving production efficiency.
The equipment adopts a modular frame design with a reasonable layout. Big bag installation and replacement are convenient, and operators can complete unloading operations without complicated training.
The equipment adopts a high-strength steel structure frame. The overall structure is stable and can continuously support large-capacity big bag materials, ensuring safe and reliable operation.
By controlling the unloading speed, the equipment achieves stable and continuous material discharge, reduces manual intervention, and meets the continuous unloading requirements of automated production lines.
The equipment can be connected with screw conveyors, vacuum conveyors, vibrating screens, storage hoppers, and other equipment to meet different production process requirements.
The open structure design makes observation, cleaning, and maintenance easier. The equipment can be used for unloading various materials such as powders and granules.
Applications
Suitable for unloading large-package materials such as flour, starch, sugar powder, food additives, milk powder, seasonings, and other food materials.
Suitable for unloading materials such as plastic granules, resin powder, pigments, chemical additives, and other chemical materials.
Suitable for conveying pharmaceutical powders, excipients, intermediates, and other materials that meet clean production requirements.
Suitable for processing powder materials such as lithium battery materials, graphite powder, positive electrode materials, and negative electrode materials.
Suitable for automatic unloading of large-package materials such as cement, mineral powder, ceramic powder, and other mineral materials.
