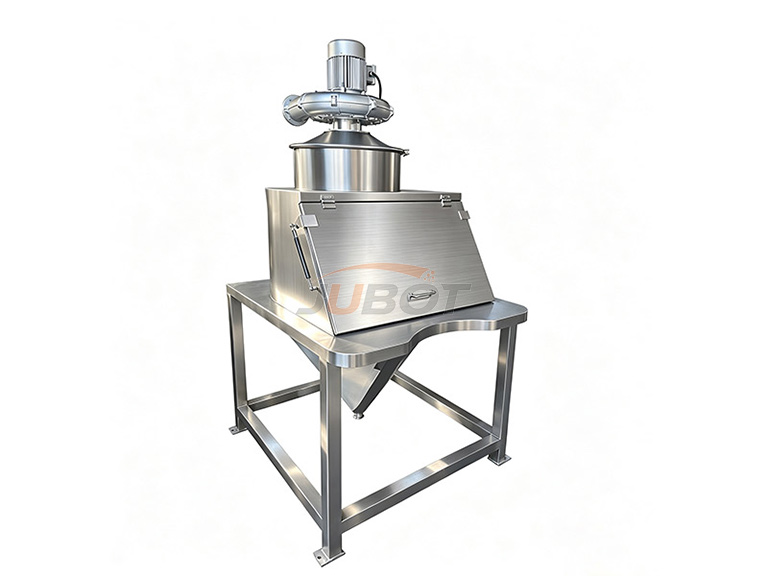

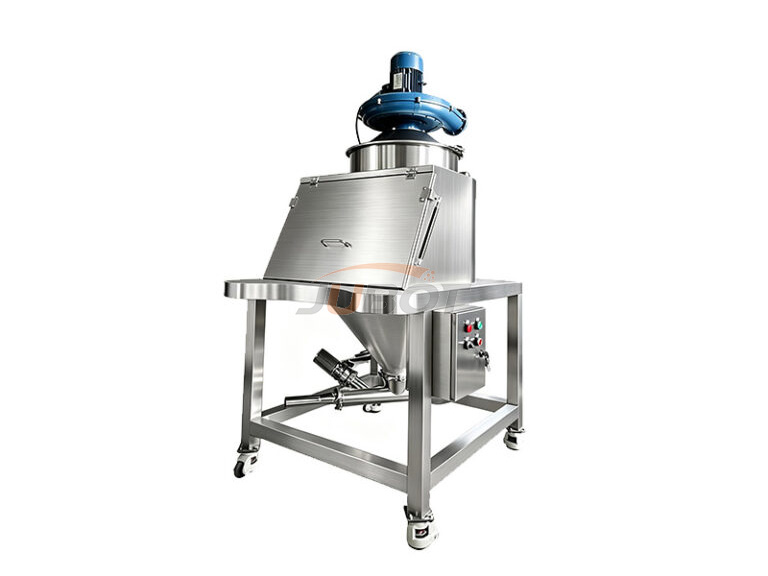

Product Overview
The Dust-Free Feeding Station is an environmentally friendly feeding equipment specially designed for manual unpacking and feeding of powder and granular materials. By combining a sealed feeding structure with a negative pressure dust removal system, the equipment effectively controls dust diffusion generated during material feeding, achieving safe, clean, and efficient feeding operations.

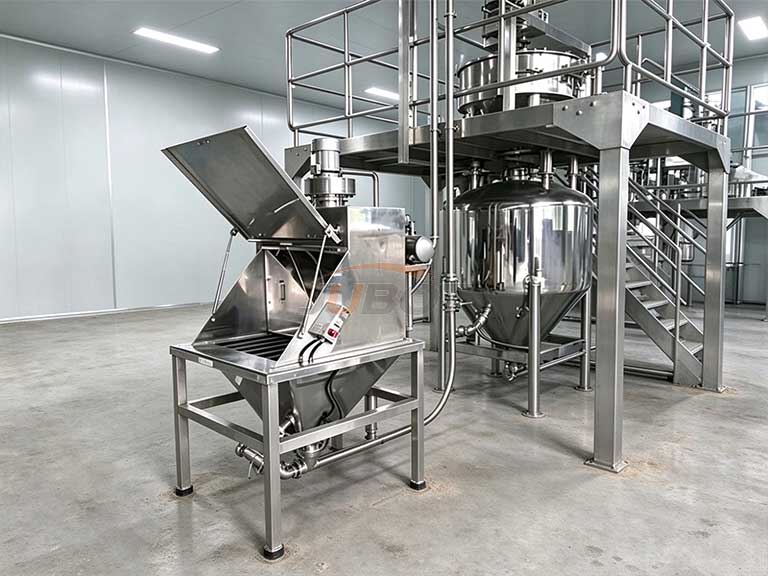

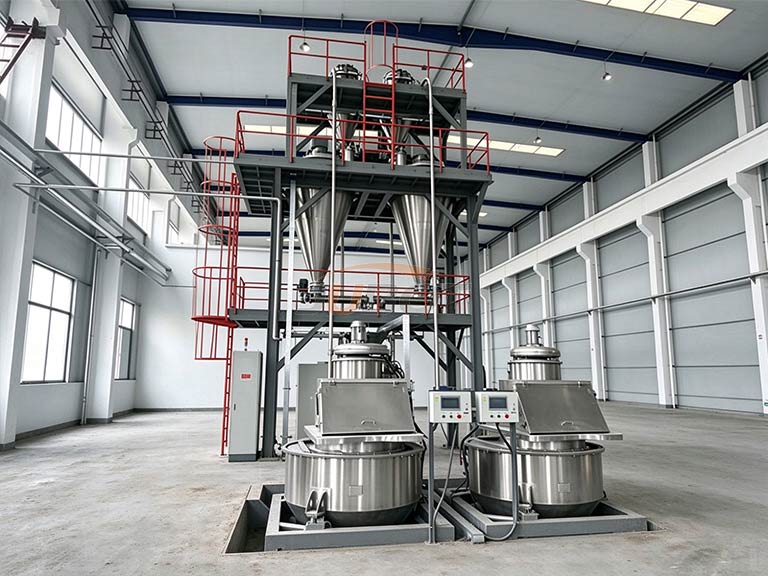

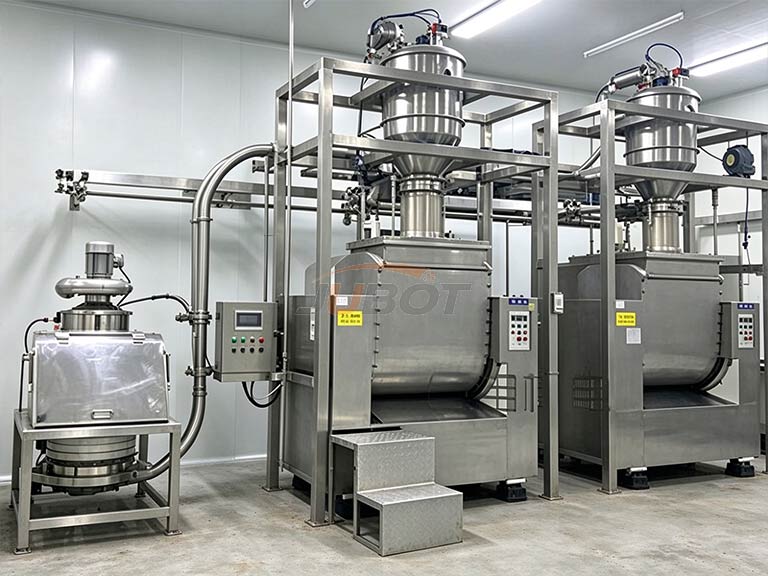

The equipment integrates manual feeding, dust collection, material screening, and conveying connection functions. According to production requirements, it can be connected with downstream equipment such as vacuum conveyors, screw conveyors, and storage hoppers to achieve continuous and automated transportation of powder materials.
Working Principle
Operators place bagged materials on the feeding platform for unpacking. After the materials enter the sealed feeding chamber, the dust removal fan starts to generate negative pressure airflow. During the feeding process, the generated dust is carried by the airflow into the filtration and dust removal system, where gas-solid separation is achieved through filter cartridges.
Clean air is discharged, while dust is trapped and collected centrally, preventing dust leakage and contamination of the production environment. Meanwhile, materials enter the lower hopper by gravity or are transported to the next process through conveying equipment, realizing enclosed and dust-free feeding.
Features and Advantages
The equipment adopts negative pressure dust removal technology to effectively capture dust generated during feeding, reduce air pollution, lower the risk of operators inhaling dust, and meet the requirements of modern clean production.
The equipment adopts a closed structure design to prevent dust scattering and material waste caused by traditional manual dumping, improving material utilization efficiency.
Operators only need to complete bag opening and material feeding operations. No complicated training is required, reducing handling and cleaning work while improving production efficiency.
Equipped with high-efficiency filtration components, the equipment can quickly achieve dust separation. The reasonable structure makes filter cartridge replacement, cleaning, and maintenance more convenient.

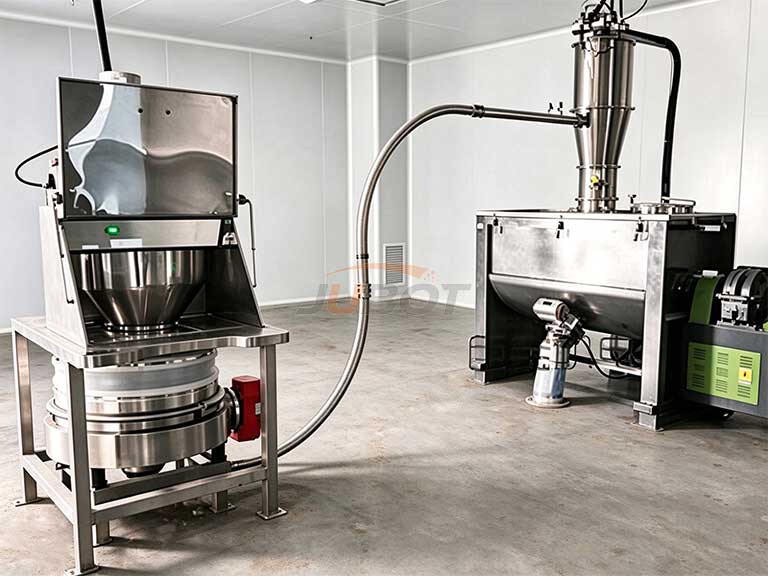

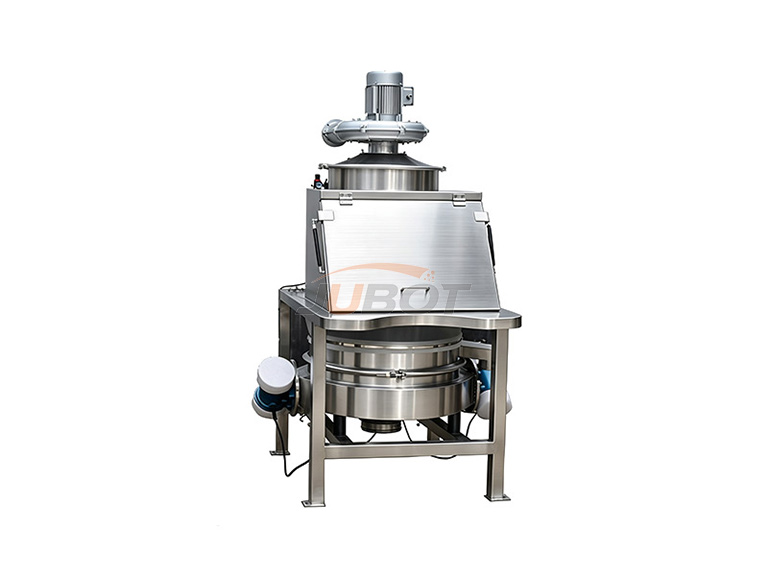

The equipment can be connected with vibrating screens, vacuum loaders, screw conveyors, storage hoppers, and other equipment to meet different production process requirements.
The main body of the equipment is usually manufactured with stainless steel. The smooth surface is easy to clean and can meet the hygiene requirements of industries such as food and pharmaceuticals.
Applications
Feeding of powder materials such as flour, starch, sugar powder, milk powder, additives, seasonings, and other powdered materials.
Feeding operations for active pharmaceutical ingredients, intermediates, excipients, and other materials in clean environments.
Transportation of chemical powders such as plastic powder, resin, pigments, additives, and other materials.
Processing of high-requirement powder materials such as battery materials, graphite powder, and positive/negative electrode materials.
Specification
| Feeding Specifications | 0~50kg/bag |
| Size of Feeding Station (mm) | Customizable |
| Working Air Pressure (MPA) | 0.6-1.5 |
| Wind Pressure | 1217-1640 |
| Power（Kw） | Depending on Different Models |
| Backblowing Type | Pneumatic Pulse |
| Product Type | Automation |
| Optional Equipment | Iron remover/Vibrating screen/Bag press |
| Equipment/Measurement and Weighing | |
| Structural Material Options | 316L stainless steel, 304 stainless steel, carbon steel |
| Material Lifting Method | Bucket/Forklift/Forklift/Manual Lifting |
| Dead Load | 1500N/2500N |
| Model | Inlet Diameter | Fan Power | Fan Pressure |
| TLZ-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
| TLZ-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
| TLZ-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
| TLZ-1200 | 1200mm/48inch | 2.2KW | 3.6Kpa-39m³/m |
